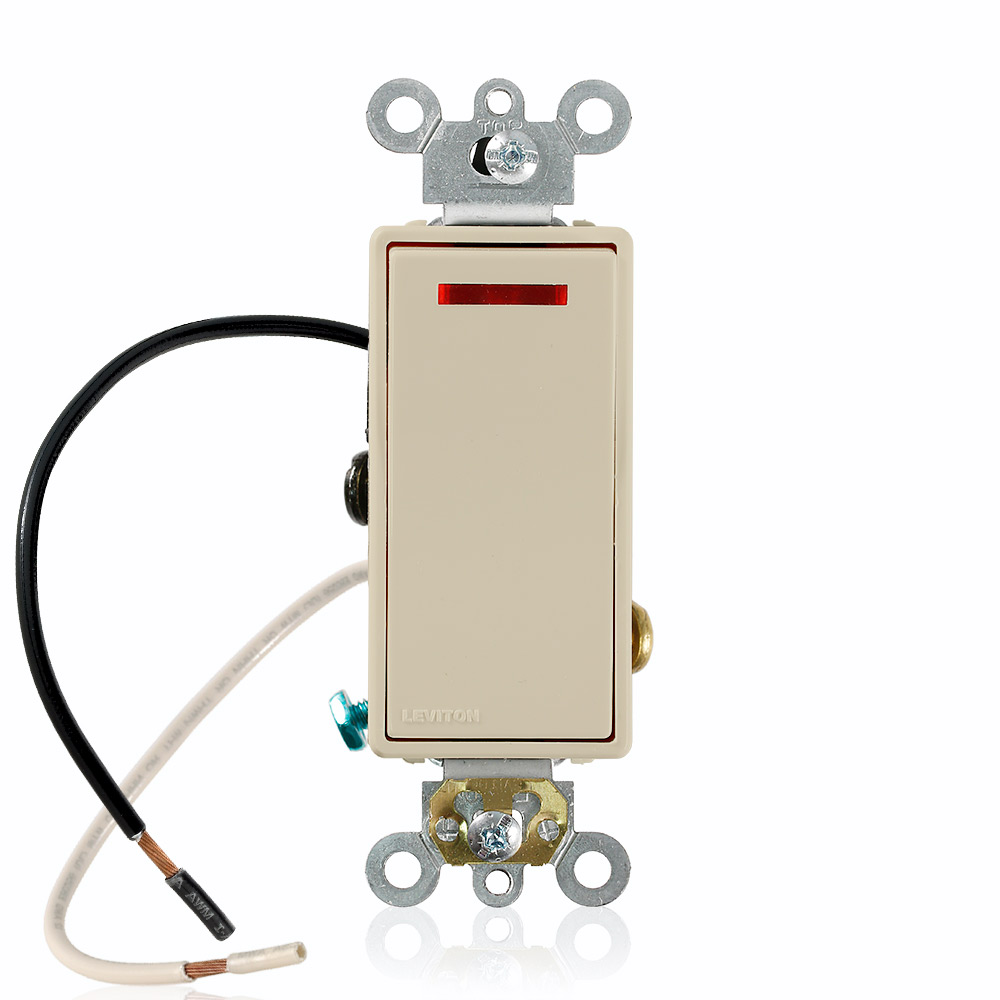

Product image for Leviton 5638-2I 20 Amp 120 Volt Decora Plus Rocker Pilot Light Illuminated ON 3-Way Self Grounding Ivory AC Quiet Switch
Email

Leviton 5638-2I 20 Amp 120 Volt Decora Plus Rocker Pilot Light Illuminated ON 3-Way Self Grounding Ivory AC Quiet Switch

Manufacturer: Leviton Mfg Co | Catalog # 5638-2I | Cooper Electric Part # 261412
$66.62/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
20 Amp, 120 Volt, Decora Plus Rocker Pilot Light - Illuminated ON - Req. Neutral 3-Way AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired, - Ivory

Technical Information

Actuator
Rocker
Amperage
16 Amp
Applications
Commercial
Body Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Contact Rating
20 A, 120 VAC
Device Type
Rocker Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Indicator
Pilot Light
Material
Thermoplastic
Max Current
16 A
Mounting Type
Box
NEMA
WD-1
Number of Poles
1 Pole
Operating Temperature
-40 degrees C
Size
46 H x 1.76 W x 1.60 D IN
Standard
ANSI C-73
TC Connection
Back and Side Wired
Temperature Rating
-40 to 120 degrees C
Temperature Rise
30 degrees C
Termination Type
Back Wire,Side Wire
Torque
12 lb-in
Type
Pilot Light
Voltage
120 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477789056
Color
Ivory
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTiN
00078477789056
Product UPC
07847778905

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Color Variations
  • White
