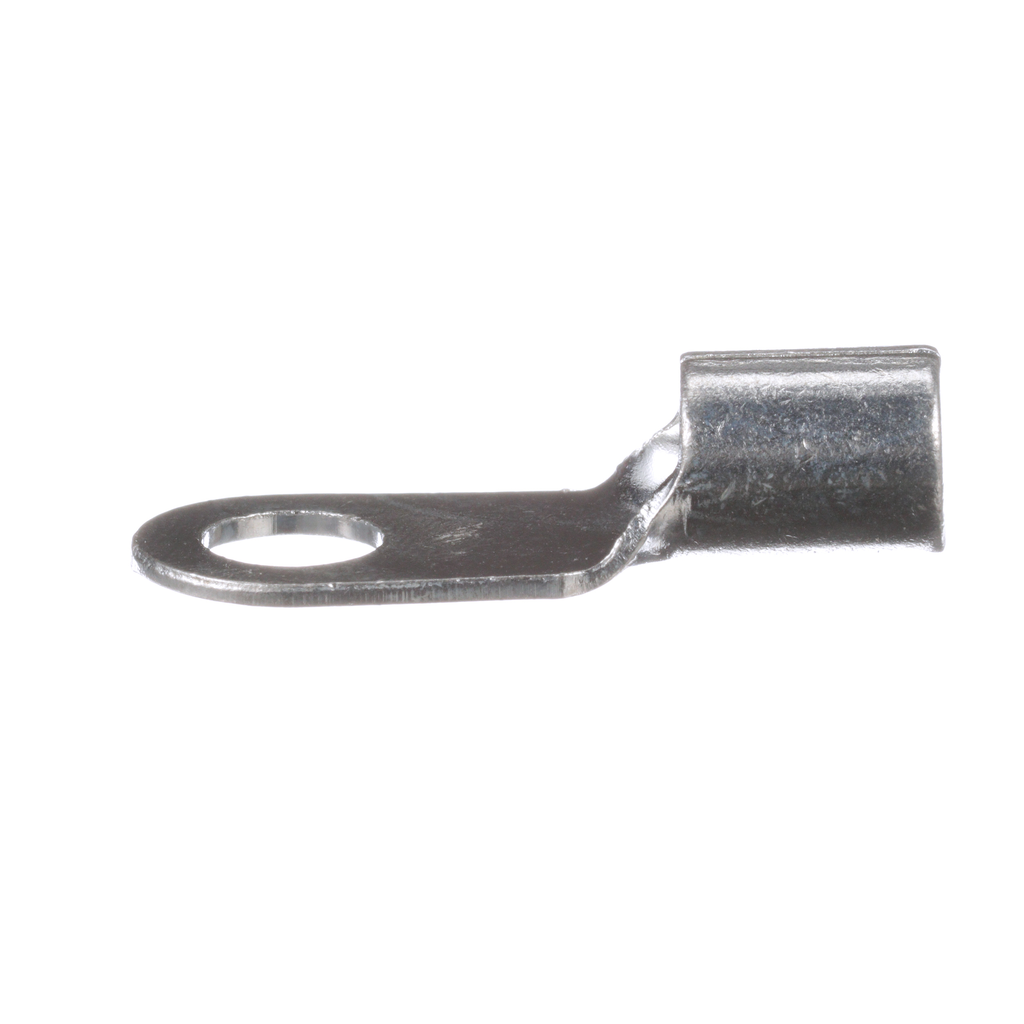

Panduit P6-14R-E Large Wire Non-Insulated Ring Terminal

Manufacturer: Panduit Corp | Catalog # P6-14R-E | Cooper Electric Part # 261283
$466.00/c (100 ea)
ea
Order in multiples of 20 (pack qty)
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Engineering Drawing
The P6-14R-E Pan-Term® Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.49 in
Barrel Type
Brazed Seam
Color Coding
Metallic
Conductor Size
6 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
150 degrees C
Size
1/4"
TC Connection
Standard
Temperature Rating
302 F
Tongue Thickness
0.045 in
Tongue Width
0.47 in
Type
Ring Terminal
Voltage
2,000 Volt
Wire Size
6 AWG

Packaging

Pkg Qty
20

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983870677
Color
NA
Finish
Tin Plated
GTiN
00074983870677
Product UPC
07498387067

Dimensions

Outer Diameter
0.32 in
Overall Length
1.21 in
Width
0.47 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
Prop 65
  • No
