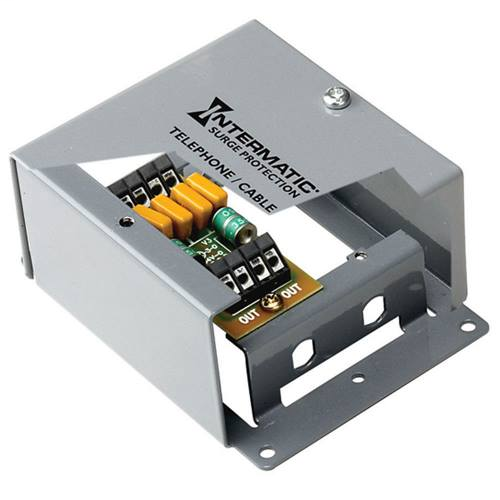

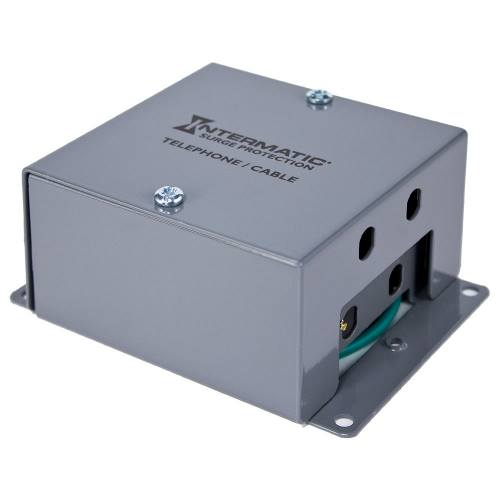

Intermatic IG2TM NEMA 1 Metal Enclosure 2-Line Indoor Telephone Line Protector

Manufacturer: Intermatic, Inc | Catalog # IG2TM | Cooper Electric Part # 26095
$210.31/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The IG Series Telephone Line or Coax Cable Protective Devices are designed for indoor or outdoor installations. Listed to UL 497A for phone line and UL 497B for coax cable.

Technical Information

Amperage
40 kA
Applications
For Indoor use
Conductor Size
24-16 AWG
Enclosure Type
Indoor Type 1 Metal
Material
Metal
Max Operating Temperature
0 degrees C
Min Operating Temperature
0 degrees C
Mounting Type
Surface
NEMA Size
1
Size
24 - 16 AWG
Standard
CCSAus Certified,CULus Listed,UL497A Listed
Type
2-Line
Voltage
350 VDC
Wire Length
0 mm
Wire Size
24-16 AWG

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275097438
GTiN
00078275097438
Product UPC
07827509743

Dimensions

Warranty Length
5 yr
Features
  • Provides telephone (analog phone line, modem, or DSL) line protection  Listed to UL 497A for phone line
  • Modes of protection: Tip-to-ground, tip-to-ring, and ring-to-ground for telephone models
  • Provides telephone (analog phone line, modem, or DSL) and coax line protection (cable TV, cable Internet, or satellite TV
  • #24 to #16 AWG for telephone models
  • Type F Thread for coax models
  • Gas tube protection
  • UL 497A is for telephone protection
  • UL 497B is for coax protection
  • 5-year product warranty
  • $10,000 connected equipment warranty for 5 years on appliances and electronics
Applications
  • Residential
  • Light Commercial
