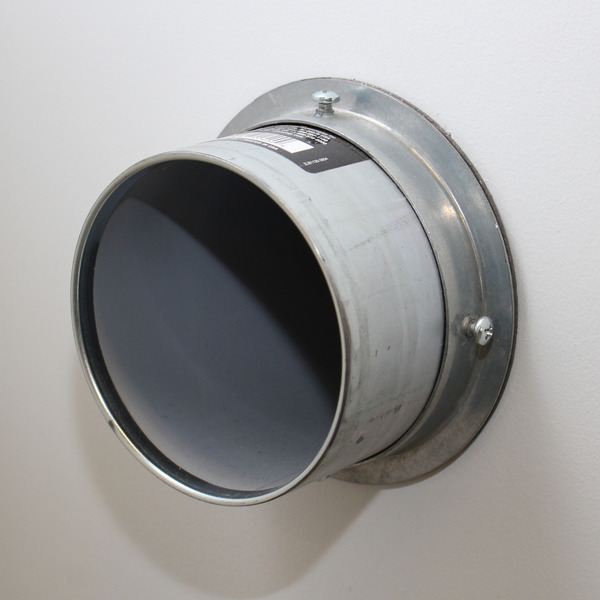

Product image for Specified Technologies Inc. (STI) FS200 2 Inch Firestop Sleeve Kit
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Specified Technologies Inc. (STI) FS200 2 Inch Firestop Sleeve Kit

Manufacturer: Specified Technologies Inc | Catalog # FS200 | Cooper Electric Part # 260049
$74.99/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Thursday 8:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
SpecSeal Ready Sleeve are designed for new cabling penetrations where sleeves are required. Each Ready Sleeve kit includes a preformed steel sleeve with rolled edges, steel escutcheon plates with intumescent gaskets, and a dosage of our SpecSeal SSP Firestop Putty. The rolled edges of each Ready Sleeve eliminate the need for bushings while the included escutcheon plates and gaskets take the place of steel strut and strap supports.

Technical Information

Material
Steel
Type
Cable Firestop Sleeve

Manufacturer Information

Brand
SpecSeal

General Product Info

12-Digit UPC
730573202005
Color
Silver
Product UPC
73057320200
Weight
2.29 lb

Dimensions

Height
2 Inch
Length
12-1/4 Inch
Width
2 in

Certifications and Compliance

Country of Origin
USA
Features
  • All data, video, communication, power, and control cables shall be installed through sleeves wherever said cables penetrate fire resistance rated barriers. The sleeve shall be sized to accommodate the present cable bundle as well as anticipated growth. The sleeve kit shall include steel escutcheon plates and intumescent firestop gaskets sized to fit the specific outside diameter of the sleeve and sandwich the barrier to lock said sleeve in place. The sleeve shall be provided with a sufficient thickness of intumescent firestop putty to seal the ends of the sleeve to restrict the passage of fire, smoke, and superheated gases. The firestop sleeve shall be UL Certified and tested to the requirements of ASTM E814 (UL1479) and CAN/ ULC-S115
  • Complete kit including wall labels., Offered in three sizes: 1in., 2 in., & 4 in. diam., Sized for assemblies up to 10 in. thick., Oversized escutcheon plates and gaskets available for larger openings.
  • Economical - offers significant material and labor savings
  • Ready to install - no cutting required, no waste
  • Locks into place - no support struts and clamps required
  • No external firestop seal required - factory supplied intumescent firestop gasket
  • Firestop putty provided with kit - sufficient to seal ends to 1 (25 mm) depth
  • UL Certified and code compliant
  • For rated and non-rated barriers - putty seal impedes the passage of fire, smoke, superheated gases, particulate dust, and minimizes noise transmission
Standards and Certifications
  • ASTM E814
  • UL 1479
  • CAN/ULC S115
  • ASTM E814 (UL1479)
  • CAN/ULC-S115
  • FM Approved: No
  • UL Certified Firestop: Yes
  • FBC System Compatible: No
Applications
  • Cables
Properties
  • Low VOC
  • No Expiration
  • Re-Enterable
  • Smoke Barrier
Construction Type
  • SpecSeal Ready Sleeve Pathways are used to protect or support cables in both nonrated and rated construction. SpecSeal Ready Sleeve Pathways are suitable for use in all common constructions including concrete floors, concrete walls, concrete block walls, and gypsum board/stud wall assemblies up to 10 (254 mm) thick.
Industry
  • Residential
  • Commercial
  • Industrial
  • Construction
  • Government
