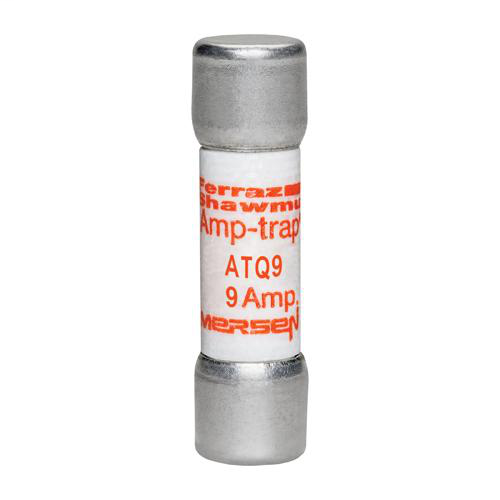

Product image for Mersen ATQ9 9 Amp 500 Volt Glass Melamine Laminated Time Delay Midget Fuse
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Mersen ATQ9 9 Amp 500 Volt Glass Melamine Laminated Time Delay Midget Fuse

Manufacturer: Mersen | Catalog # ATQ9 | Cooper Electric Part # 259050
$53.20/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Amp-Trap ATQ midget time-delay fuses are rated 500VAC with 42 ampere ratings from 1/10 to 30A. They are an excellent choice for supplemental protection of circuits where the available short circuit current does not exceed 10,000A. (Not for Branch Circuit Protection)

Technical Information

Amperage
9 Amp
Applications
Supplemental Protection of Lighting, Solenoid, Motor and Transformer Circuits
Fuse Class
Midget
Insulation Material
GMG
Interrupt Rating
10 kAIC
Mounting Type
Clip
Rated Voltage AC
500 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Time Delay
Voltage
500 VAC

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001904326
Class
M
GTiN
30782001904327
Product UPC
78200190432
Weight
0.012 lb

Dimensions

Diameter
0.41 Inch
Length
1-1/2 Inch
Features
  • Numerous ratings for a wide variety of applications up to 500VAC
  • Time-delay (12 seconds at 200 percent rating) for circuits with high inrush current
  • Can be used with UltraSafe™ Fuse holders
  • 1 1/2\" x 13/32\" (10 mm x 38 mm) dimensions
Applications
  • Supplemental protection of lighting, solenoid, motor and transformer circuits
Approvals & Standards
  • UL listed to standard 248-14 File E33925
  • CSA Certified to Standard C22.2 No. 248.14
