Burndy YGLR29C34 Copper Compression Connector, Ground Rod to Grid, 2 AWG (Str) to 250 kcmil, 3/4" Ground Rod

Manufacturer: Burndy | Catalog # YGLR29C34 | Cooper Electric Part # 258066
$246.66/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
Copper Compression Connector, Ground Rod to Grid, 2 AWG (Str) to 250 kcmil, 3/4" Ground Rod.

Technical Information

Applications
For Direct Burial in Earth and Concrete
Conductor Size
2 AWG-250 kcmil
Conductor Type
Copperweld, Commercial Stranded Copper (Run)
Connection Type
Tap
Material
Copper
Plated?
No
Plating Type
Unplated
Size

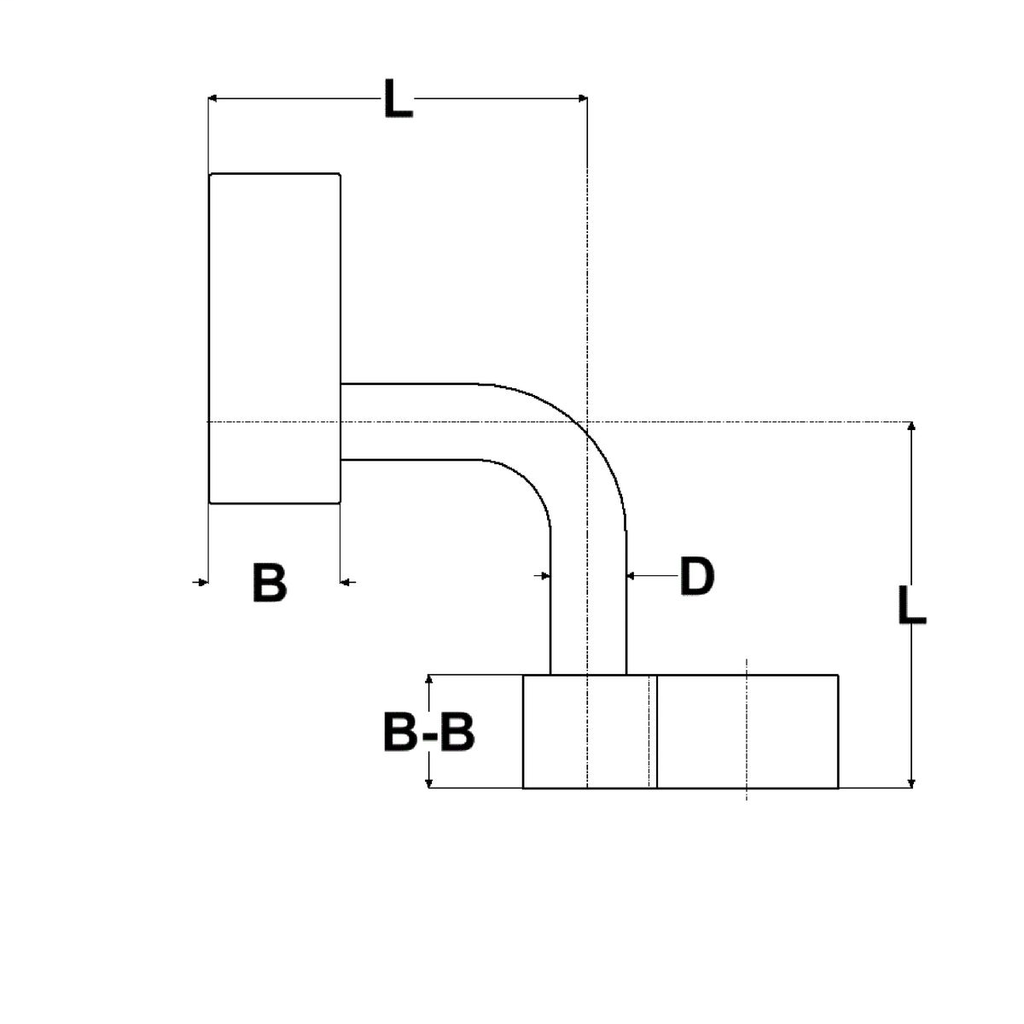

0.75 IN Dimension B X 0.88 Dimension B-B X 2.63 IN Length X 0.5 IN Dimension D
Type
YGLR-C

Manufacturer Information

Brand
Burndy
Sub Brand
Gridlok™

General Product Info

12-Digit UPC
781810220825
GTiN
00781810220825
Product UPC
78181022082

Dimensions

Height
4.18 Inch
Length
2.63 Inch
Overall Length
2.63 in
Width
1.34 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Conductor Type
  • CU C Str-Size
  • Rod-Size
  • CU Weld C Str-Size
Industry Standard(s)
  • UL467
  • IEEE 837
  • IEEE 837 2014 Qualified
Standards - Industry Standards Met
  • UL467
  • IEEE 837
  • IEEE 837 2014 Qualified
