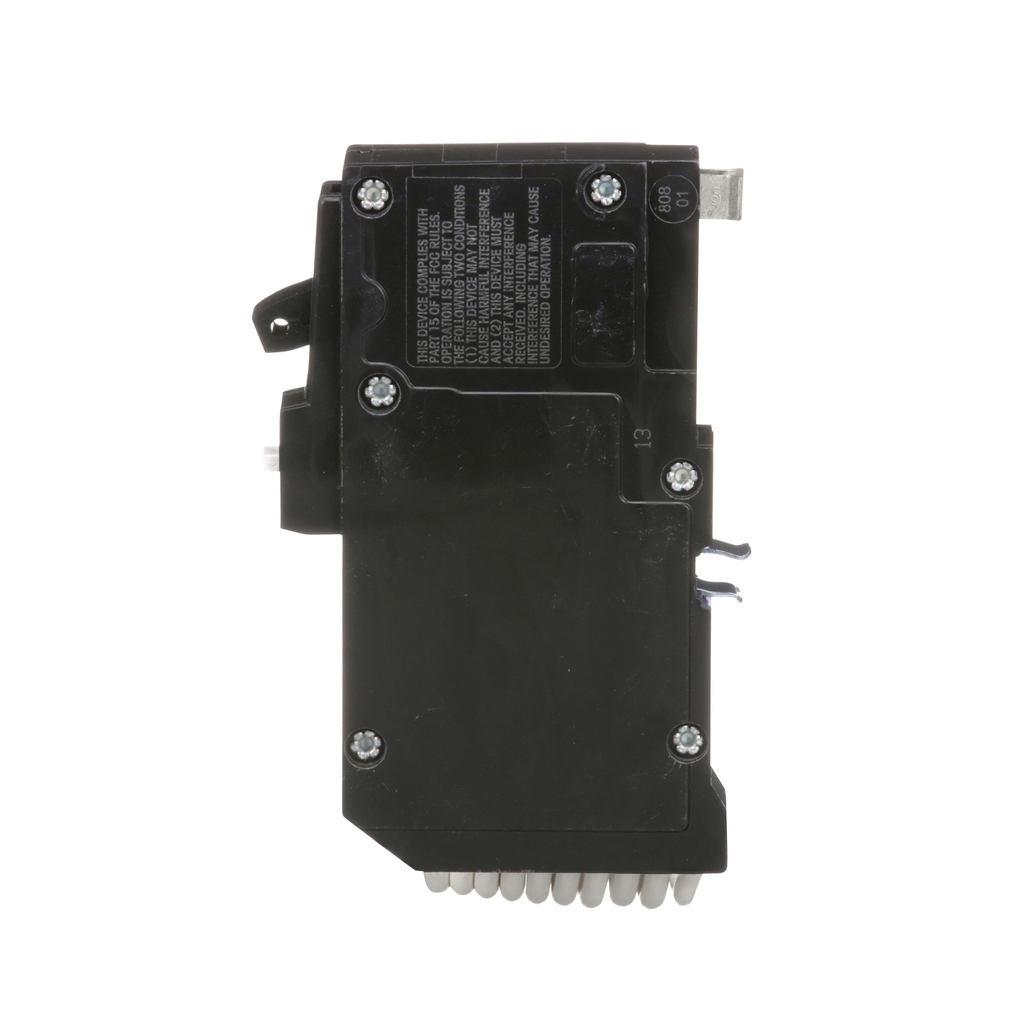

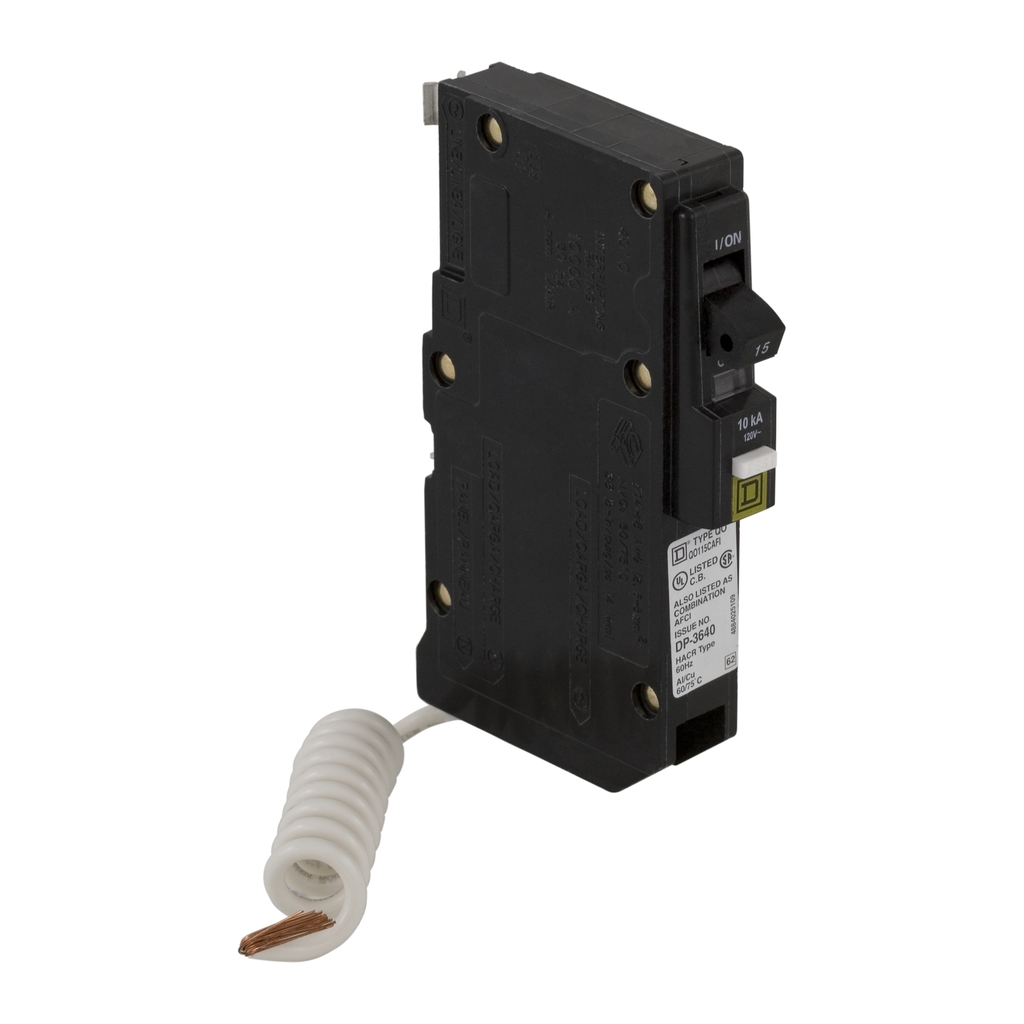

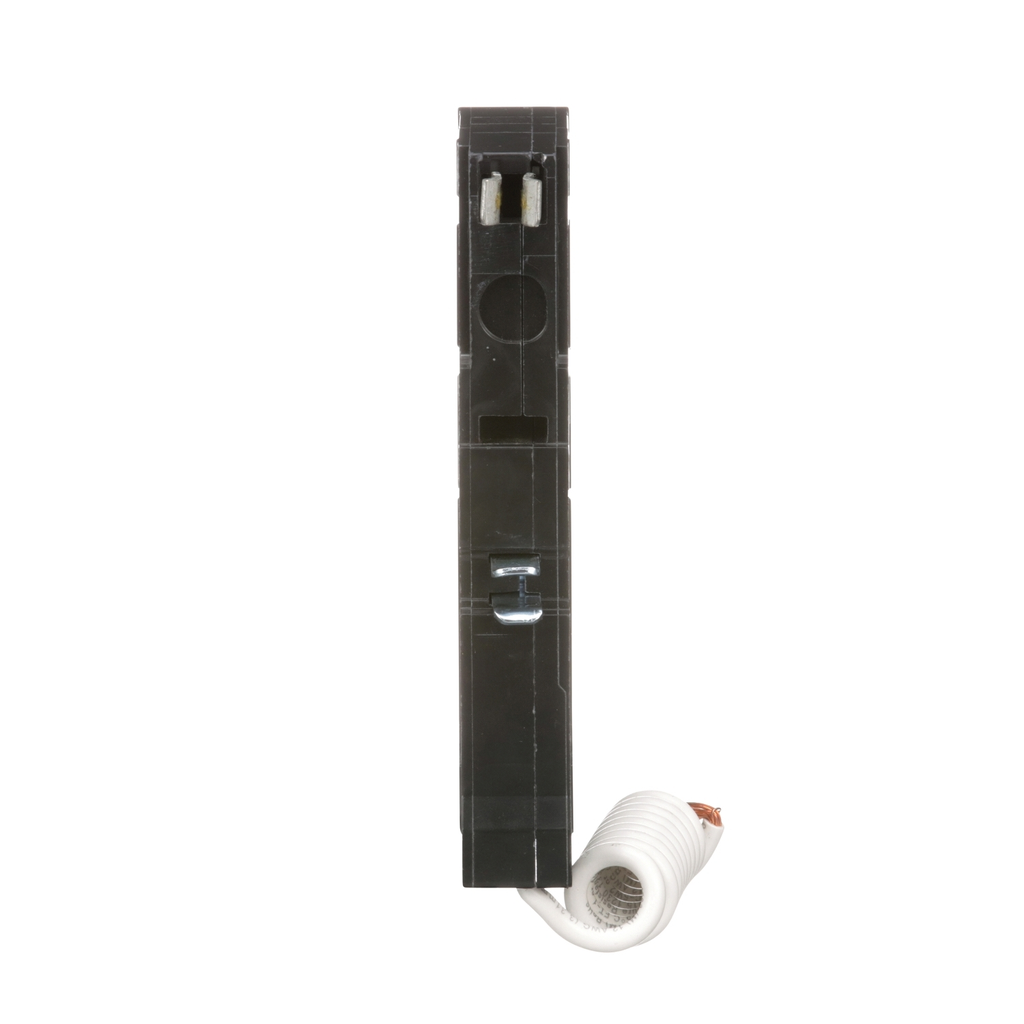

Square D QO115CAFI Arc-Fault Circuit Breaker 15A 120/240V 1P , Pigtail Neutral

Manufacturer: Square-D / Schneider | Catalog # QO115CAFI | Cooper Electric Part # 256008
$282.00/ea
ea
Log in or register to view your price, purchase history, and more!
1 2 3
Plug-In Neutral Pigtail Neutral
3 available

For Pick Up

at Ocean Opens Monday 7:00am ET
82 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
Square D™ QO™ and QOB Miniature Circuit Breakers, QO115CAFI, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Equipped with Combination ground and Arc-fault interrupter (Pigtail Neutral). UL listed.

Technical Information

Amperage
15 Amp
Applications
HACR rated
Circuit Breaker Type
Combination ARC-fault
Conductor Size
12-8 AWG (AL)/14-8 AWG (CU)
Current
15 Amp
Interrupt Rating
10 kAIC
Line Rated Current
15 A
Mounting Type
Plug-in
Net Weight
0.272 kg
Number of Poles
1 Pole
Operating Temperature
40 Adegrees C
Short Circuit Current
10 kA
TC Connection
Pigtail neutral;Pressure plate
Type
Miniature circuit-breaker
Voltage
120 Volt
Wire Size
AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium NULL

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901438236
GTiN
00785901438236
Product UPC
78590143823
Weight
0.272 kg

Dimensions

Depth
74 mm
Height
121 mm
Length
2.91 Inch
Warranty Length
18 mth
Width
19 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
