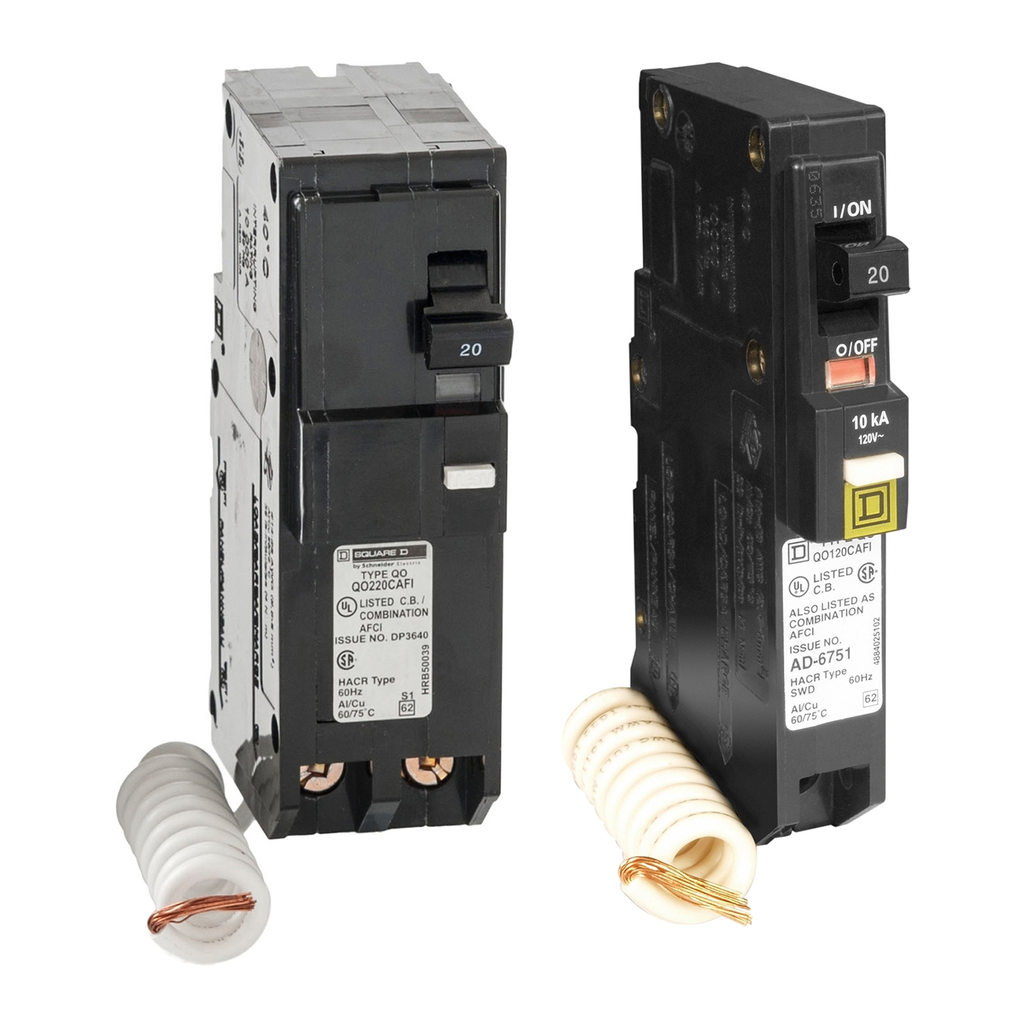

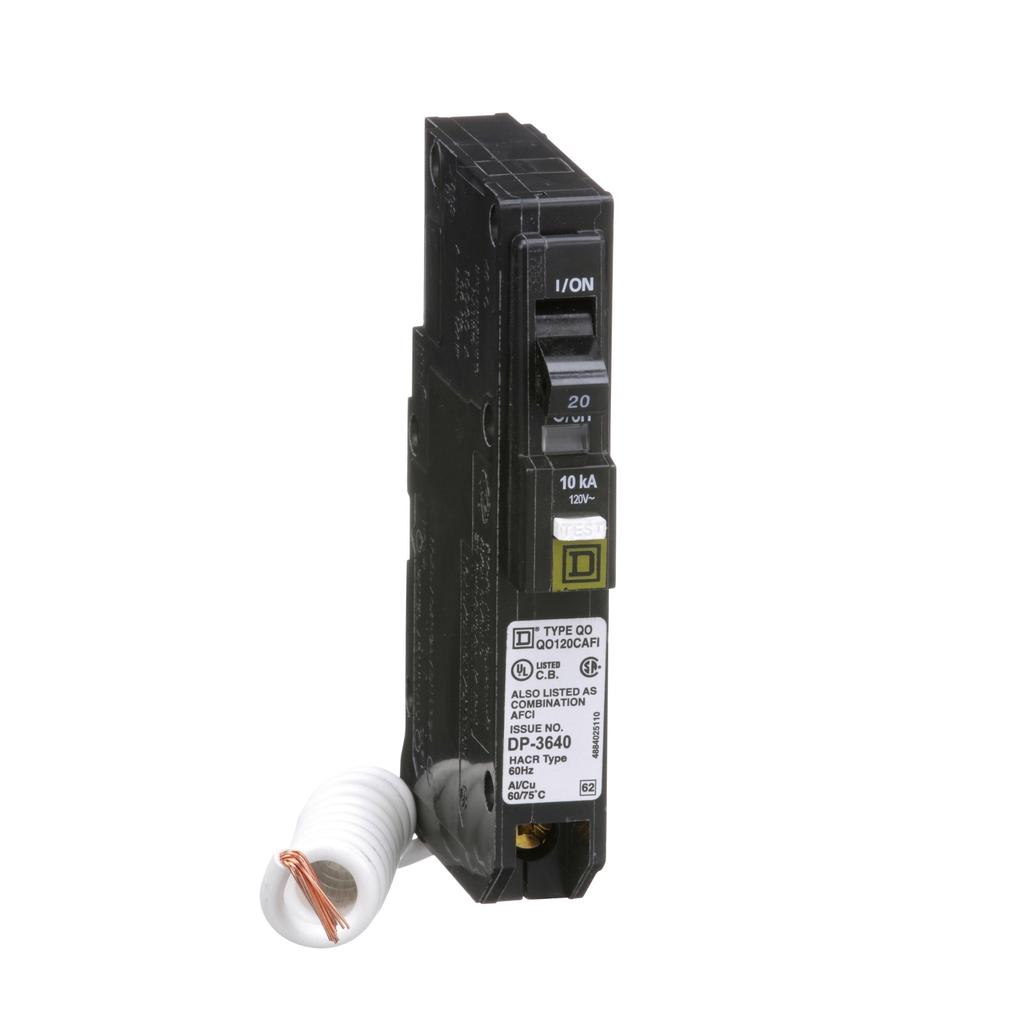

Square D QO120CAFI Arc-Fault Miniature Circuit Breaker 20A 120V 1Ph 1P, Pigtail Neutral

Manufacturer: Square-D / Schneider | Catalog # QO120CAFI | Cooper Electric Part # 255995
$282.00/ea
ea
Log in or register to view your price, purchase history, and more!
1 2 3
Plug-In Neutral Pigtail Neutral
4 available

For Pick Up

at Ocean Opens Monday 7:00am ET
201 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
Square D™ QO™ and QOB Miniature Circuit Breakers, QO120CAFI, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Equipped with Combination ground and Arc-fault interrupter (Pigtail Neutral). UL listed.

Technical Information

Amperage
20 Amp
Applications
HACR rated
Circuit Breaker Type
Combination ARC-fault
Conductor Size
12-8 AWG (AL)/14-8 AWG (CU)
Current
20 Amp
Interrupt Rating
10 kAIC
Line Rated Current
20 A
Mounting Type
Plug-in
Net Weight
0.227 kg
Number of Poles
1 Pole
Operating Temperature
40 Adegrees C
Short Circuit Current
10 kA
TC Connection
Pigtail neutral;Pressure plate
Type
Miniature circuit-breaker
Voltage
120 Volt
Wire Size
AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901438359
GTiN
00785901438359
Product UPC
78590143835
Weight
0.227 kg

Dimensions

Depth
2.91 in
Height
4.76 in
Length
2.91 Inch
Warranty Length
18 mth
Width
0.75 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.0017335968
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.1 kg CO2 eq.
  • 0.0514017587
Related Products
  • QO24L70RB
  • QO1816M200FTRB
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 2 kg CO2 eq.
  • 1.9252582257
Accessories
  • QO1HT
  • QO1LO
  • QO2DTI
  • QOHPL
  • HLO1
  • QO1PA
  • QO2DTIM
  • QO1PAF
Persona Type Names
  • End User
  • Consumer
  • Contractor
  • Original Equipment Manufacturer
  • Electrician
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 37 kg CO2 eq.
  • 37.375
Accessory Products
  • QO1HT
  • QO1LO
  • QO2DTI
  • QOHPL
  • HLO1
  • QO1PA
  • QO2DTIM
  • QO1PAF
Persona Type Ids
  • EU
  • EUA
  • LC
  • OM
  • SC
Carbon Footprint Of The Distribution Phase A4
  • 0.063531067
  • 0.1 kg CO2 eq.
AWG Gauge
  • AWG 14...AWG 8 copper
  • AWG 12...AWG 8 aluminium
UE Rated Operational Voltage
  • 120 V AC
