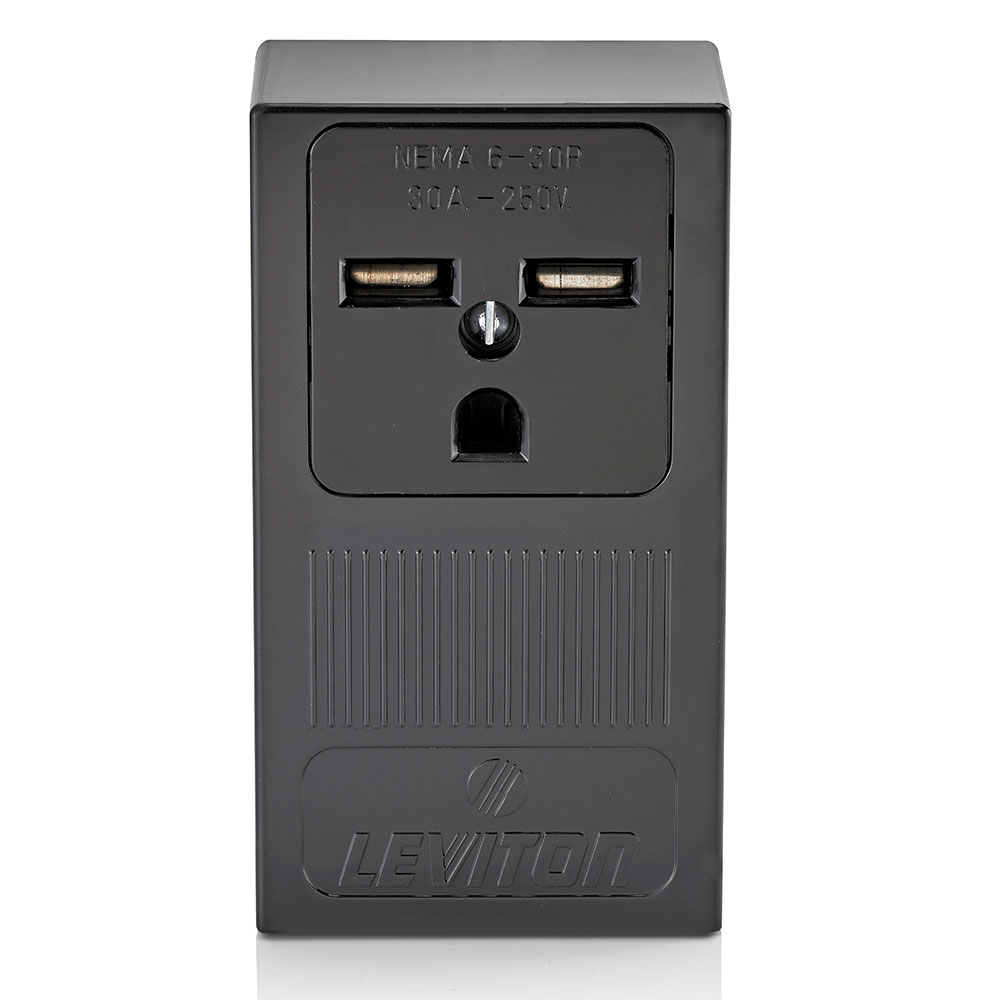

Product image for Leviton 5376 250 Volt 30 Amp 2-Pole 3-Wire NEMA 6-30R Black Thermoplastic Grounding Surface Mount Straight Blade Receptacle
Image thumbnail 0
Image thumbnail 1
Email

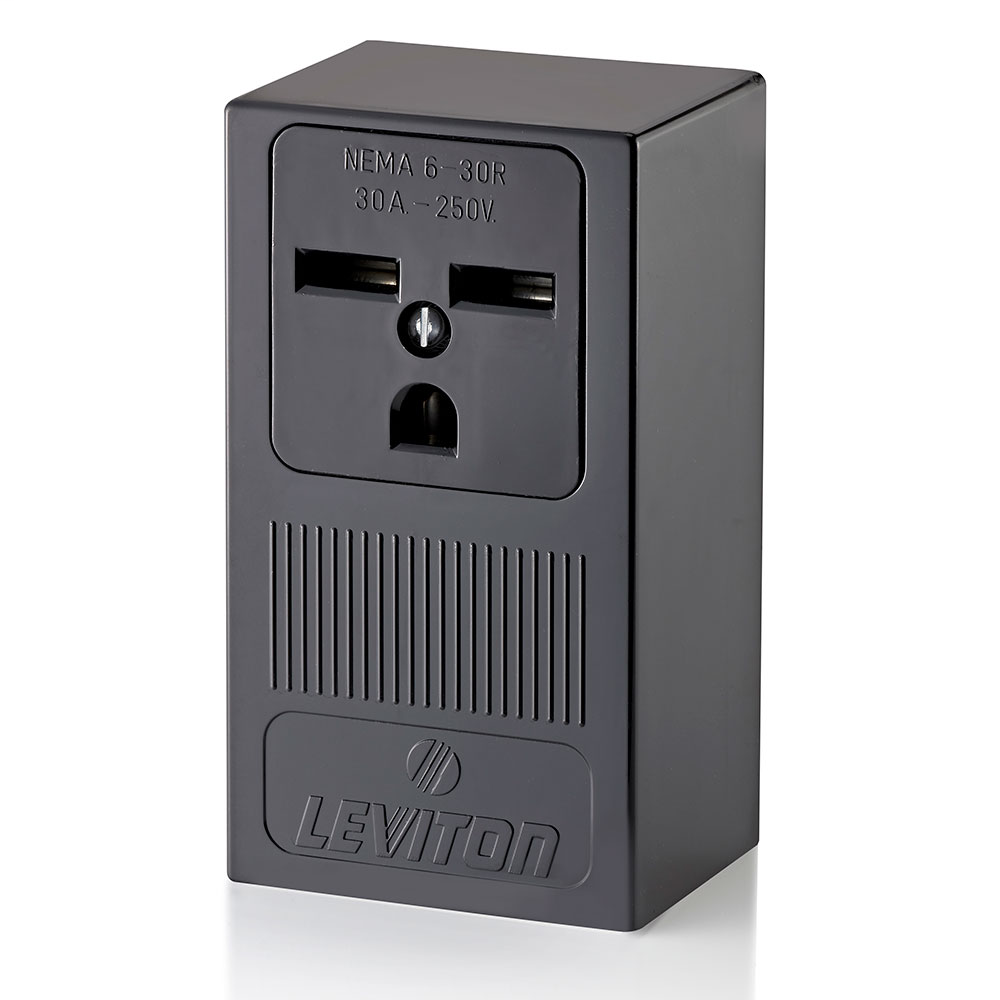

Leviton 5376 250 Volt 30 Amp 2-Pole 3-Wire NEMA 6-30R Black Thermoplastic Grounding Surface Mount Straight Blade Receptacle

Manufacturer: Leviton Mfg Co | Catalog # 5376 | Cooper Electric Part # 25280
$43.55/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Leviton's line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.

Technical Information

Amperage
30 Amp
Applications
Heavy Duty (in Aaccordance with VDE)
Body Material
Thermoplastic
Conductor Size
14-6 AWG
Connection Type
Side Wire
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Thermoplastic
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Grounding
Horsepower
2 hp
Material
Duroplast
Mounting Type
Screw, Surface
NEMA
6-30R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Size
4.82 H x 2.68 W x 24 D IN
Standard
ANSI C-73
TC Connection
Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Terminal Size
4 AWG
Type
Power, 1-Outlet, 1-Unit
Voltage
250 Volt
Wire Count
3
Wire Size
14-6 AWG

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477235201
Color
Black
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00078477235201
Product UPC
07847723520

Dimensions

Warranty Length
10 yr
