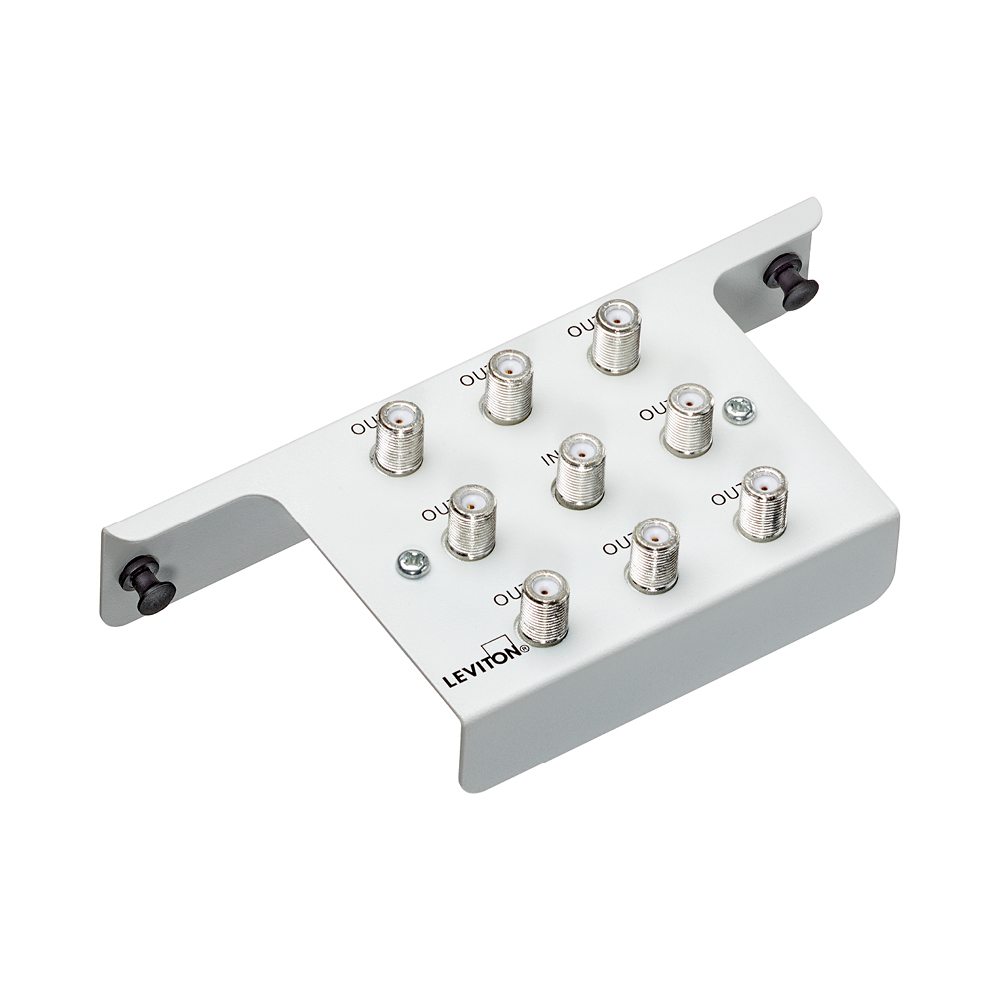

Product image for Leviton 47690-8C2 75 Ohm 2 Gigahertz White 1-Input Passive Video Splitter Module
Email

Leviton 47690-8C2 75 Ohm 2 Gigahertz White 1-Input Passive Video Splitter Module

Manufacturer: Leviton Mfg Co | Catalog # 47690-8C2 | Cooper Electric Part # 25278
$53.50/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Use 6- and 8-way 2GHz Passive Video Splitters and Passive Video Splitter Modules to split digital cable, quality cable TV and off-air signals to six or eight televisions throughout a home or office. The Video Splitter Modules are designed for easy installation in any Leviton 14", 28" or 42" Structured Media Enclosure. The Video Splitters are easily installed in Leviton MDU Enclosures or used in any application where a passive video splitter is needed. These units feature die-cast housings and printed circuit board construction

Technical Information

Applications
For Residential use
Cable Type
Coaxial
Connection Type
IEC
Connector Type
SMC 140;SMC 180;SMC 240
Impedance
75 ?
Standard
Meets All Applicable SCTE Standards, ATIC Listed, CULus Listed
Style
1X8,1X8
Temperature Rating
-40 to 85 degrees C
Type
8-Way

Manufacturer Information

Brand
Leviton
Sub Brand
SMC Splitters

General Product Info

12-Digit UPC
078477058480
Color
White
GTiN
00078477058480
Product UPC
07847705848
Used With
SMC 140, SMC 180, SMC 240

Dimensions

Height
1.4 Inch
Length
3 Inch
Warranty Length
2 yr
Width
6.58 in

Certifications and Compliance

Country of Origin
China
Features
  • Split video signals with outputs for six or eight televisions
  • Provide digital cable, cable TV, and other video services via coaxial cable to any room in a house or office
  • Durable gold-plated 360-degree insert pin resists oxidation, maintaining a distortion-free signal for digital data transmission
  • Weather sealed F-ports up to 30 PSI
  • 75 Ohm termination caps with splitter modules
  • 6kV surge protection
  • Built-in capacitors on all ports block DC or low-frequency AC and also prevent current from flowing through splitter's ferrite core windings that cause hum modulation
  • High-quality plating passes 1200-hour salt spray test
  • Maintains low temperature stability from 40°C to 85° C both in isolation and return loss
