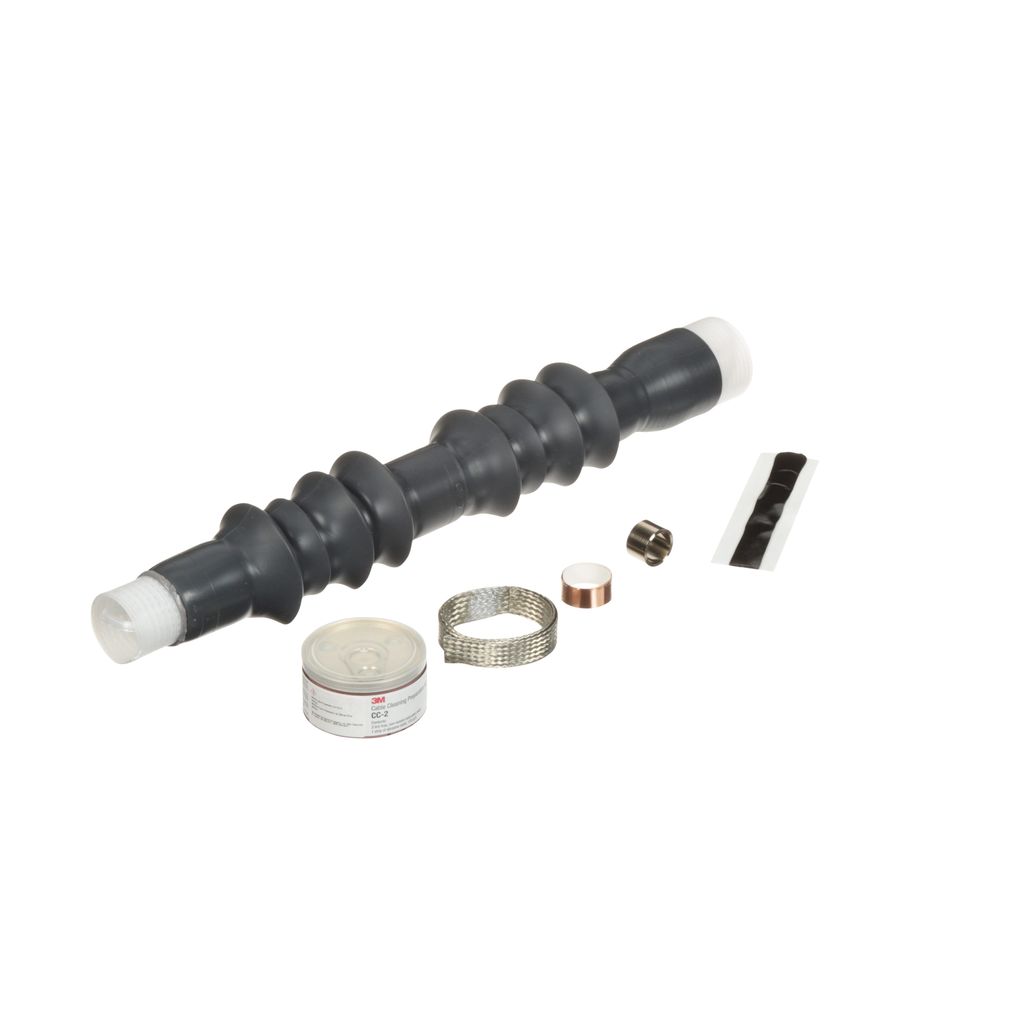

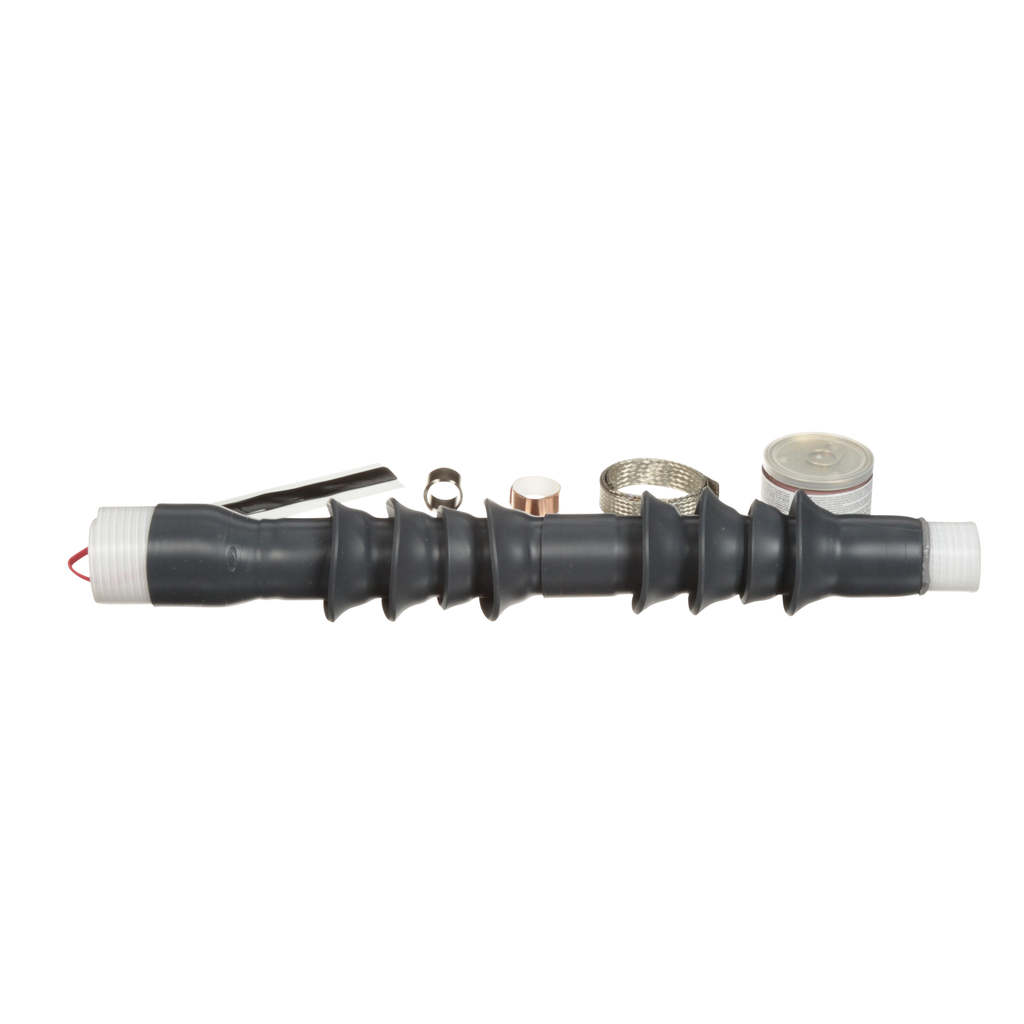

3M 7683-S-8 Cold Shrink 3 Terms/Kit 8 Skirt Termination Kit

Manufacturer: 3M | Catalog # 7000006127 | Cooper Electric Part # 252769
$3,525.19/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet Product Brochure
3M™ Cold Shrink QT-III Outdoor Terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Outdoor 8 Skirt Termination Kit 7683-S-8 has a conductor size range for 5 kV: 300-500 kcmil, 8 kV: 250-500 kcmil, 15 kV: 2/0 AWG-300 kcmil, 25/28 kV: 2-4/0 AWG and 35 kV: 2-2/0 AWG.

Technical Information

Applications
For Terminating Solid Dielectric Shielded Power Cable, Tape Shield, Wire Shield and Sunshield® Constructions, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Switchgear, Transformer, Motor Lead, Bus and Similar Connections, Outdoor Use
Cable Type
Tape Shield; UniShield(R); Wire Shield
Conductor Size
1 AWG-500 kcmil
Indoor Outdoor
Outdoor Skirted
Material
Rubber
Number of Conductors
1
Type
QT-III
Voltage
15 kV

Packaging

Units Per Case
1

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007424659
GTiN
00054007424659
Product Series
7680-S
Product UPC
05400742465
Used With
0.72 - 1.29 in Cable, QL2-A-2-250 Lug

Certifications and Compliance

Country of Origin
USA
Features
  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
