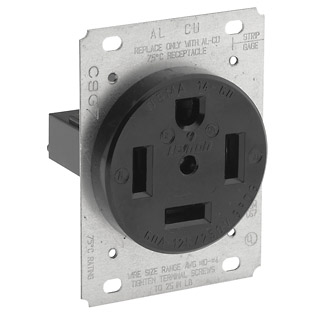

Leviton 9460 60 Amp 125/250 Volt NEMA 14-60R 3-Pole 4 Wire Straight Blade Grounding Steel Strap Black Flush Mounting Receptacle

Manufacturer: Leviton Mfg Co | Catalog # 9460 | Cooper Electric Part # 252742
$199.21/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
60 Amp, 125/250 Volt, NEMA 14-60R, 3P, 4W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Grounding, , Side Wired, Steel Strap, - Black

Technical Information

Amperage
60 Amp
Applications
Commercial
Body Material
Nylon
Conductor Size
14-6 AWG
Connection Type
Side Wire
Device Type
Straight Blade Receptacle
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Grade
Commercial
Grounding
Grounding
Horsepower
3-1/2 hp
Material
Duroplast
Mounting Type
Screw, Box, Flush
NEMA

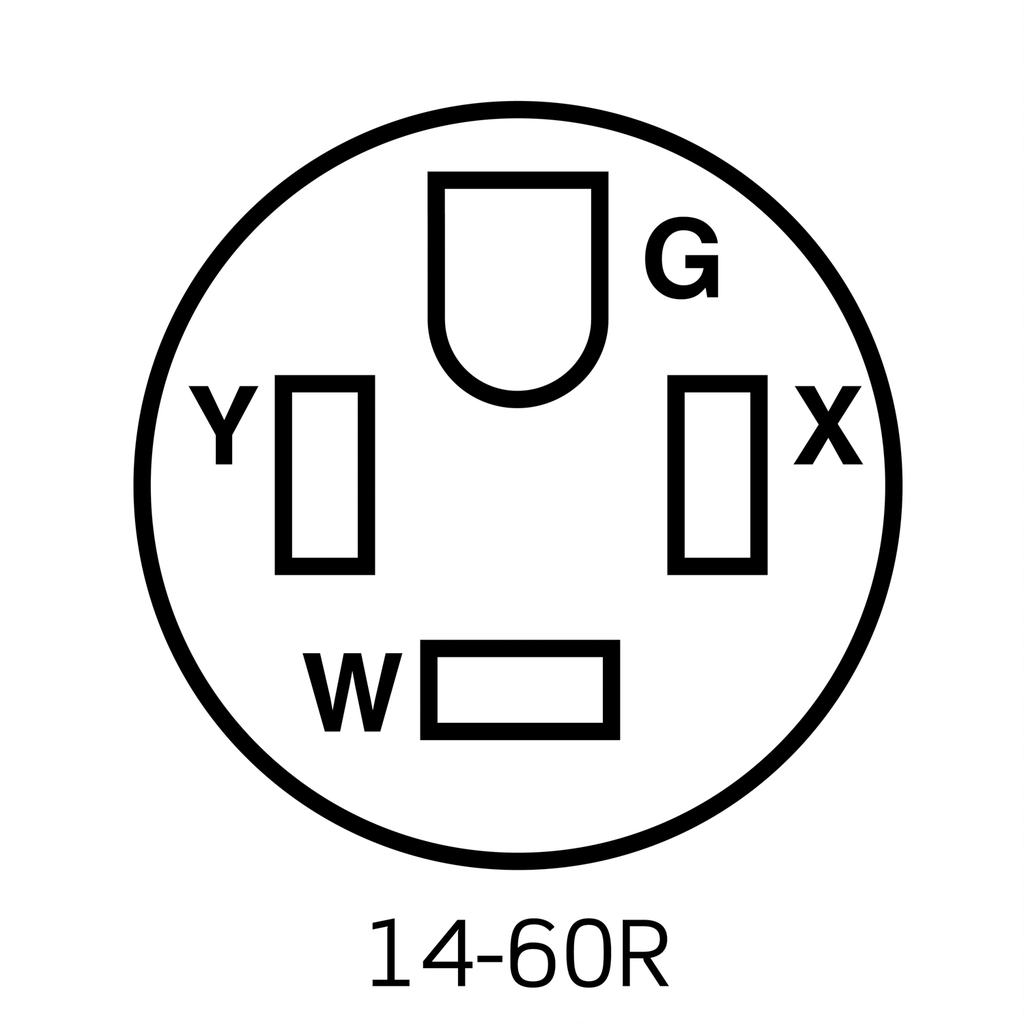

14-60R
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
3.75 H x 2.75 W x 2.10 D IN
Standard
ANSI C-73
TC Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Type
Power, 1-Outlet, 1-Unit
Voltage
125 Volt
Wire Count
4
Wire Size
14-6 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Locking Devices

General Product Info

12-Digit UPC
078477843253
Color
Black
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00078477843253
Product UPC
07847784325

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
NEMA
  • 14-60R
Features
  • Levitons line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
