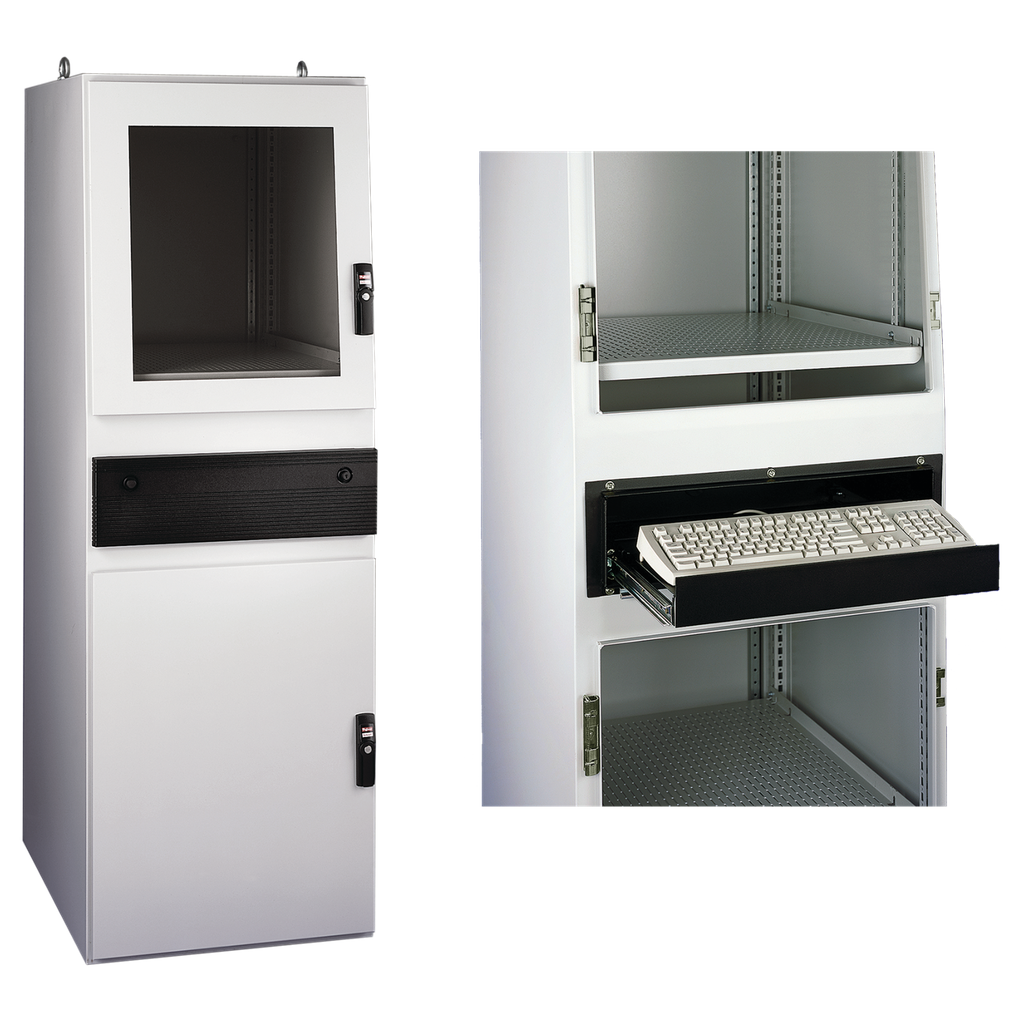

Product image for Hoffman PGLD1686CWS PROLINE Gold Series Computer Workstation, Type 12, 1600x 800x 600mm, Lt Gray, Steel
Email

Hoffman PGLD1686CWS PROLINE Gold Series Computer Workstation, Type 12, 1600x 800x 600mm, Lt Gray, Steel

Manufacturer: Hoffman | Catalog # PGLD1686CWS | Cooper Electric Part # 252349
$6,178.98/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The ProLine Gold Series Computer Workstation is a full-featured, off-the-shelf solution for protecting computer systems. Made with sturdy unibody construction, the enclosure accommodates a complete range of accessories.

Technical Information

Applications
For Protecting PC Computer Systems
Color Coding
RAL 7035
Cover Type
Hinged with Quarter-Turn Latch
Gauge
14
Material
Steel
Mounting Type
Floor
Size
1600x800x600mm
Standard
CUL Listed Per CSA C22.2 No 94,File No. E61997,File Number E61997,IEC 60529,IP55,NEMA/EEMAC Type 12,Type 12,UL 508A Listed
Type
Mild Steel Modular Industrial Enclosures

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine

General Product Info

12-Digit UPC
783510128012
Color
RAL 7035 Light Gray
Finish
Powder Coated
GTiN
00783510128012
Product UPC
78351012801
Weight
287 lb

Dimensions

Depth
1600 mm
Height
600 mm
Length
37-1/2 Inch
Width
800 mm
Features
  • Seams continuously welded and ground smooth
  • Seamless foam-in-place gasket on all doors and covers
  • Smoke gray 0.25-in.-thick polycarbonate window on upper front door
  • Quarter-turn latches on upper front door for 1400-mm high cabinets
  • ProLine latching system and key locking swing door handles on upper front door for 1600- and 1800-mm high cabinets
  • Solid lower front and full rear doors with key locking swing door handles
  • Internal rails facilitate mounting of ProLine internal components
  • Options include solid upper front door and solid front and rear covers with screw fasteners
  • Full rear opening provides maximum mounting space and easy access to interior components
  • Optional partial subpanel
  • Hinges on bottom for 1400-mm enclosures
  • Solid center post on front for 1200-mm enclosures
