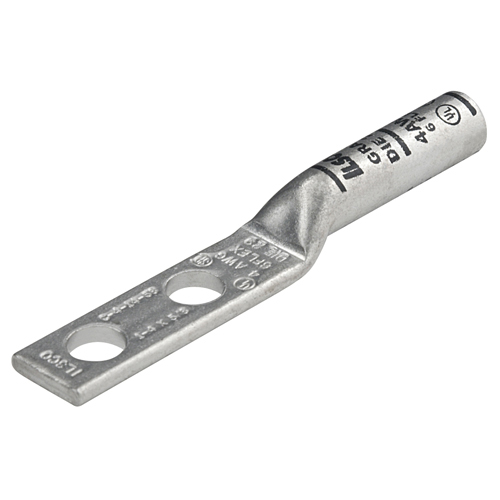

Product image for Ilsco CLND-4-14-58 SureCrimp® Copper Compression Lug, Conductor Size 4, 2 Holes, 1/4in Bolt Size, 5/8in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Email

Ilsco CLND-4-14-58 SureCrimp® Copper Compression Lug, Conductor Size 4, 2 Holes, 1/4in Bolt Size, 5/8in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CLND-4-14-58 | Cooper Electric Part # 252027
$11.39/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
155 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 1/4 in, mounting hole spacing 0.625 in., UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 4 Sol, 4 Str, no sight window, Square tang end, rated for 35 kV, die color code Gray, primary color Silver, die index I-29,

Technical Information

Applications
Copper Compression Lug
Barrel Length
1.125 in
Barrel Type
Long
Bolt Size
1/4 IN
Color Coding
Gray
Conductor Material
Copper
Conductor Size
4-6 AWG
Conductor Type
Solid,Stranded
Connection Type
Compression
Direct Burial?
Yes
Material
Copper
Mounting Hole Size
0.281 in
Number of Holes
2 Hole
Size
L:2.796;W:0.486;H:0.373 IN
Standard
CSA File Number: LR-29601,NEBS Rating: LEVEL 3,UL Specifications: UL 486A-B UL 467,UL File Number: E6207
Strip Length
30.149 mm
Temperature Rating
90 degrees C
Type
CLND:2 HOLE LONG BARREL
Voltage
35 Volt

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Ilsco
Sub Brand
Surecrimp

General Product Info

12-Digit UPC
783669630787
Color
Gray,Silver
GTiN
00783669630787
Product UPC
78366963078
Weight
0.034 lb

Dimensions

Height
0.373 Inch
Inside Diameter
0.25 in
Length
2.796 Inch
Outside Diameter
0.343 in
Overall Length
2.796 in
Width
0.486 in
