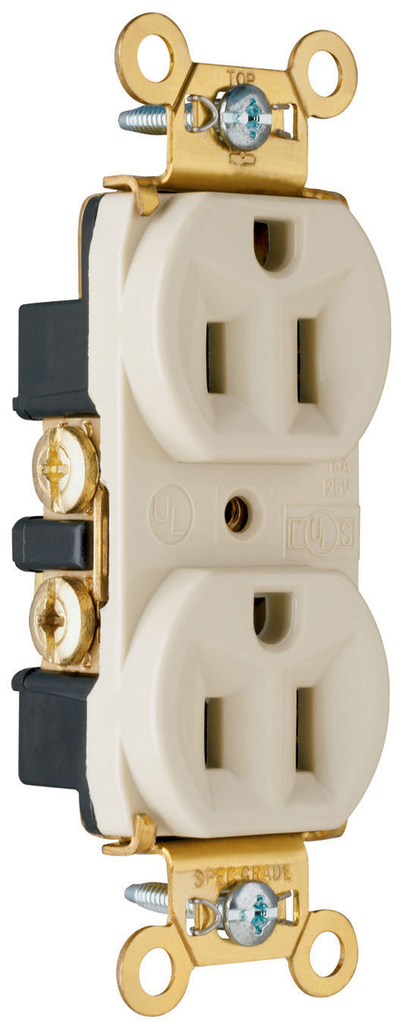

HEAVY DUTY DUP RECEPT 20A 125VAC LA

Manufacturer: Pass & Seymour / Legrand | Catalog # PS5362LA | Cooper Electric Part # 251814
$6.88/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Heavy-Duty Spec Grade Duplex Receptacle Back and Side Wire 20A 125V

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Specification
Material
Nylon
Mounting Type
Wall
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.322 L x .780 W x 3.281 H In
TC Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Heavy Duty
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007859997
Color
Light Almond
GTiN
00785007859997
Product UPC
78500785999
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Heavy-duty, brass strap for added strength and ground conductivity.
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • High strength nylon face.
  • Internal screw-pressure-plate back and side wired to accept #14 and #10 AWG stranded or solid copper or copper-clad conductors.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
