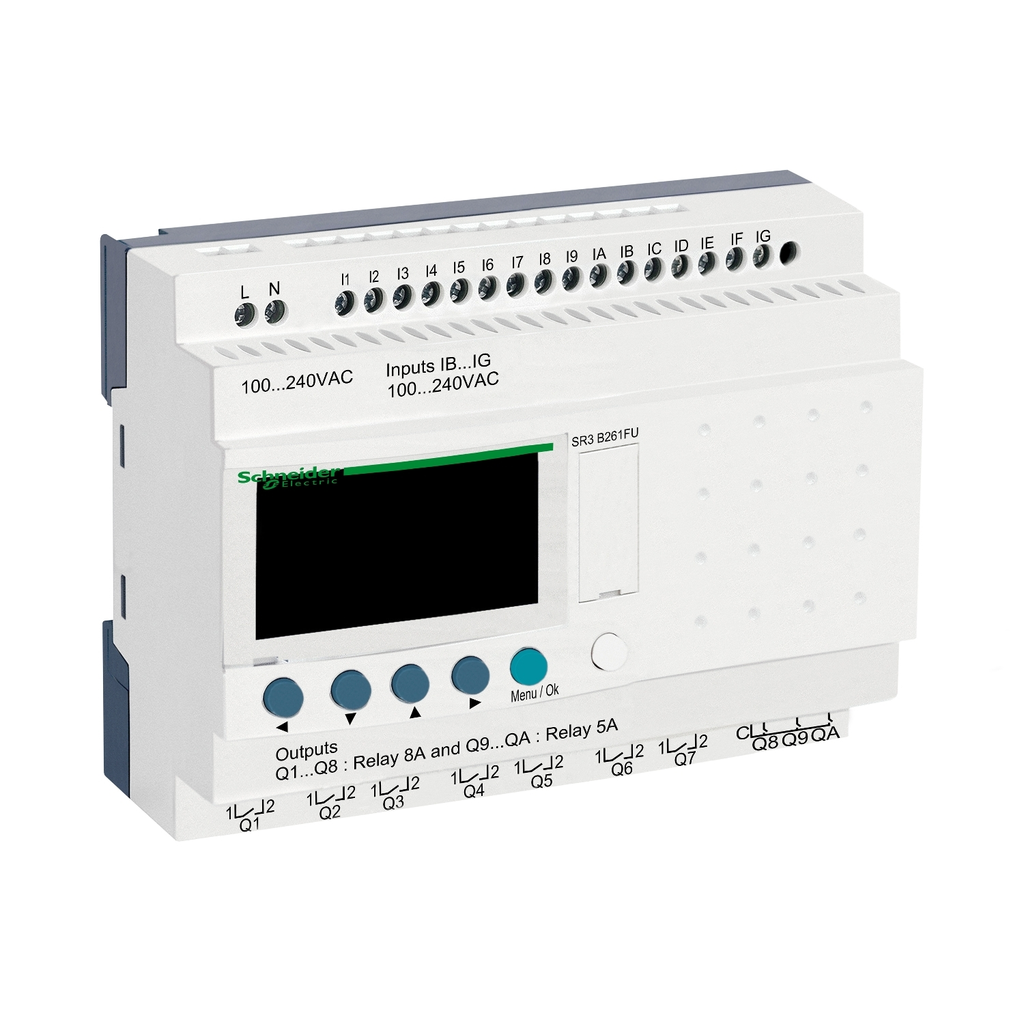

Product image for Square D SR3B261FU 100 to 240 VAC 26-I/O PLC Modular Smart Relay
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Email

Square D SR3B261FU 100 to 240 VAC 26-I/O PLC Modular Smart Relay

Manufacturer: Square-D / Schneider | Catalog # SR3B261FU | Cooper Electric Part # 251156
$534.60/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 100V-240V alternating current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.

Technical Information

Amperage
100 MA 100 V WITHOUT EXTENSION)-50 MA 240 V WITHOUT EXTENSION)-60 MA 240 V WITH EXTENSIONS)-80 MA 100 V WITH EXTENSIONS)
Contact Configuration
NO RELAY OUTPUT
Contact Rating
>= 10 MA 12 V RELAY OUTPUT)
Enclosure
IP20 (TERMINAL BLOCK) CONFORMING TO IEC 60529-IP40 (FRONT PANEL) CONFORMING TO IEC 60529
Net Weight
0.4 kg
Number of Outputs
10 Relay
Operating Cycles
0.1 HZ AT IE)RELAY OUTPUT-10 HZ NO LOAD)RELAY OUTPUT
Operating Temperature
-20-40 degrees C In Non-ventilated Enclosure IEC 60068-2-1 And IEC 60068-2-2 || -20-55 degrees C IEC 60068-2-1 And IEC 60068-2-2
Size
MODULAR
Standard
IEC 60068-2-27 Ea,IEC 60068-2-6 Fc,IEC 61000-4-11,IEC 61000-4-12,IEC 61000-4-2 Level 3,IEC 61000-4-3,IEC 61000-4-4 Level 3,IEC 61000-4-5,IEC 61000-4-6 Level 3
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP
Type
Modular smart relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZELIO LOGIC 2

General Product Info

12-Digit UPC
389110550002
Environmental Conditions
EMC DIRECTIVE EN/IEC 61000-6-2-EMC DIRECTIVE EN/IEC 61000-6-3-EMC DIRECTIVE EN/IEC 61000-6-4-EMC DIRECTIVE EN/IEC 61131-2 ZONE B-LOW VOLTAGE DIRECTIVE EN/IEC 61131-2
GTiN
03389110550009
Product UPC
78590157189
Weight
0.4 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
C-tick,CSA,GL,GOST,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ESR2SFT01
  • SR2MEM02
  • SR2CBL01
  • SR2COM01
  • SR2USB01
Cross Sell Products
  • SR3XT61FU
  • SR3XT101FU
  • SR3XT141FU
