3M 7100166939 3M™ Scotchlok™ IDC C

Manufacturer: 3M | Catalog # 7100166939 | Cooper Electric Part # 24900
$0.74/ea
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
700 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Product Brochure

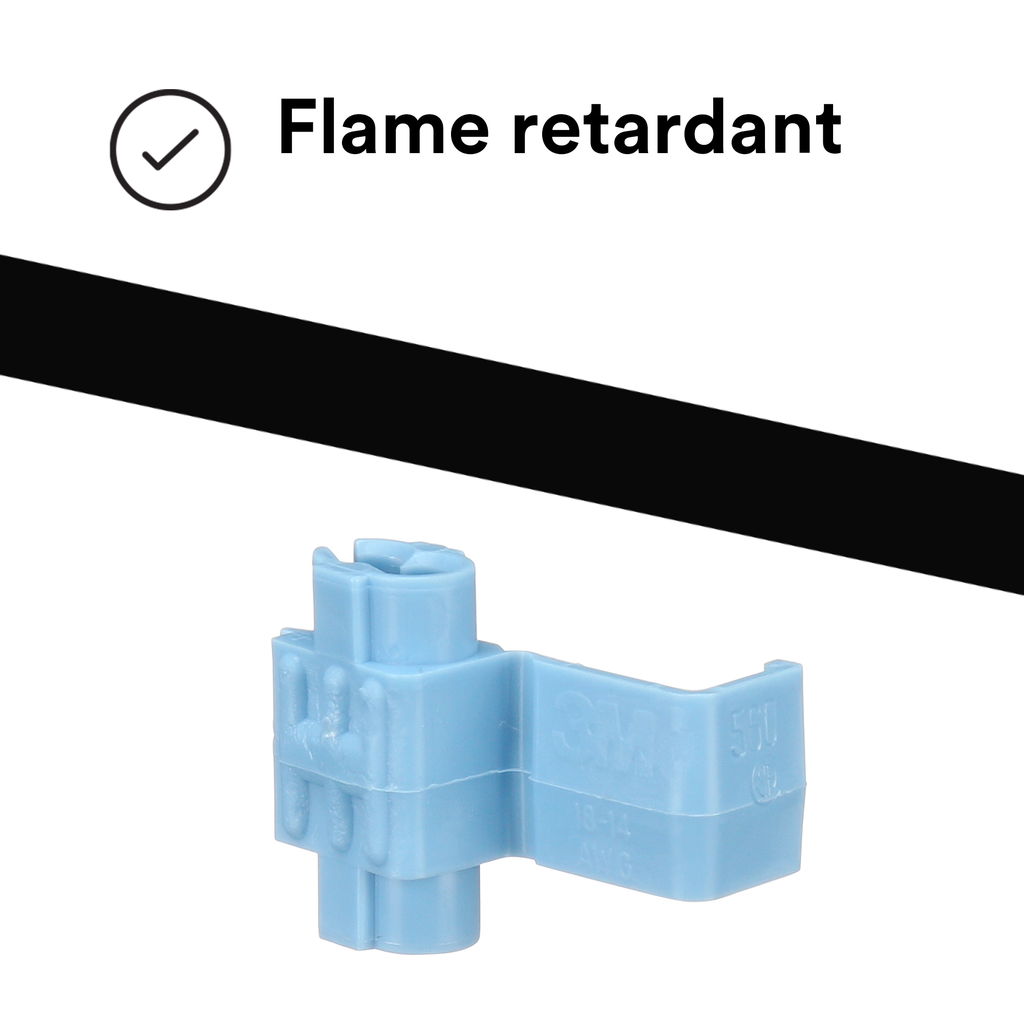

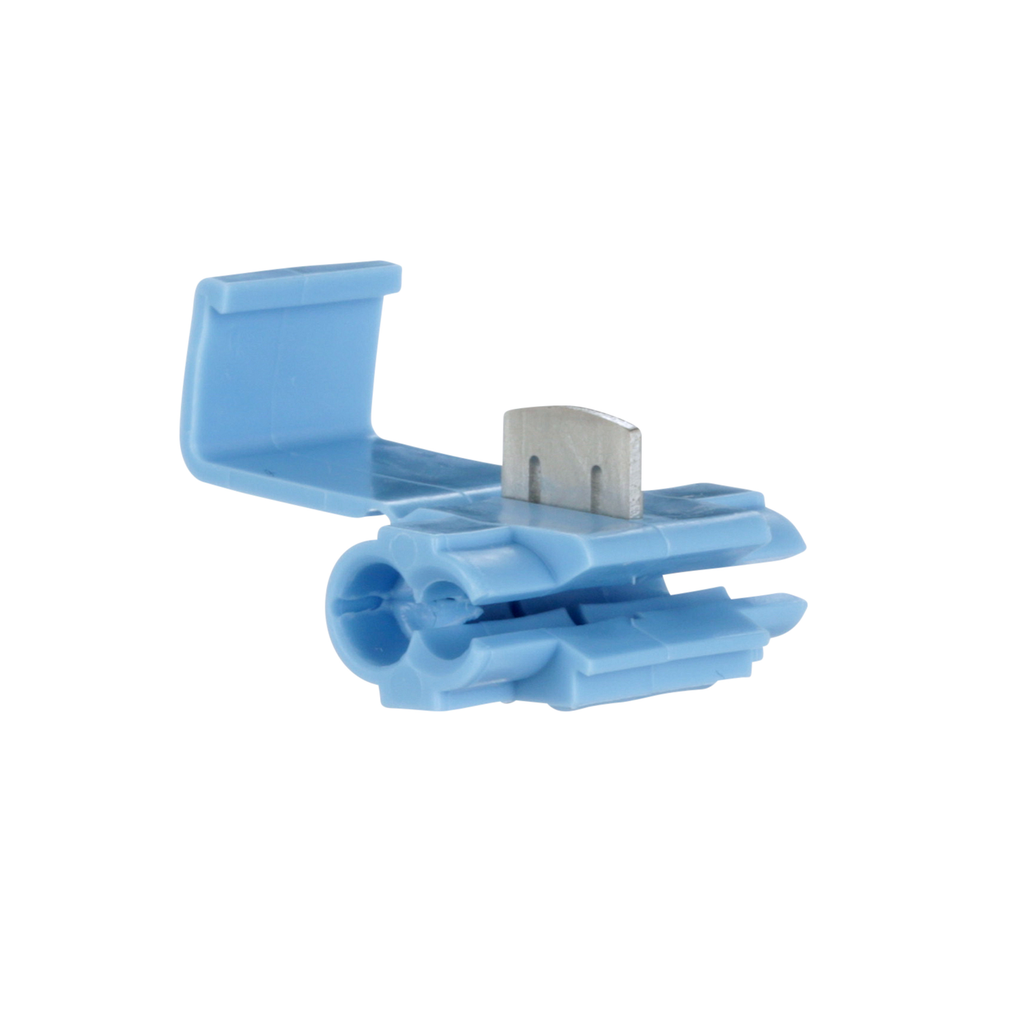

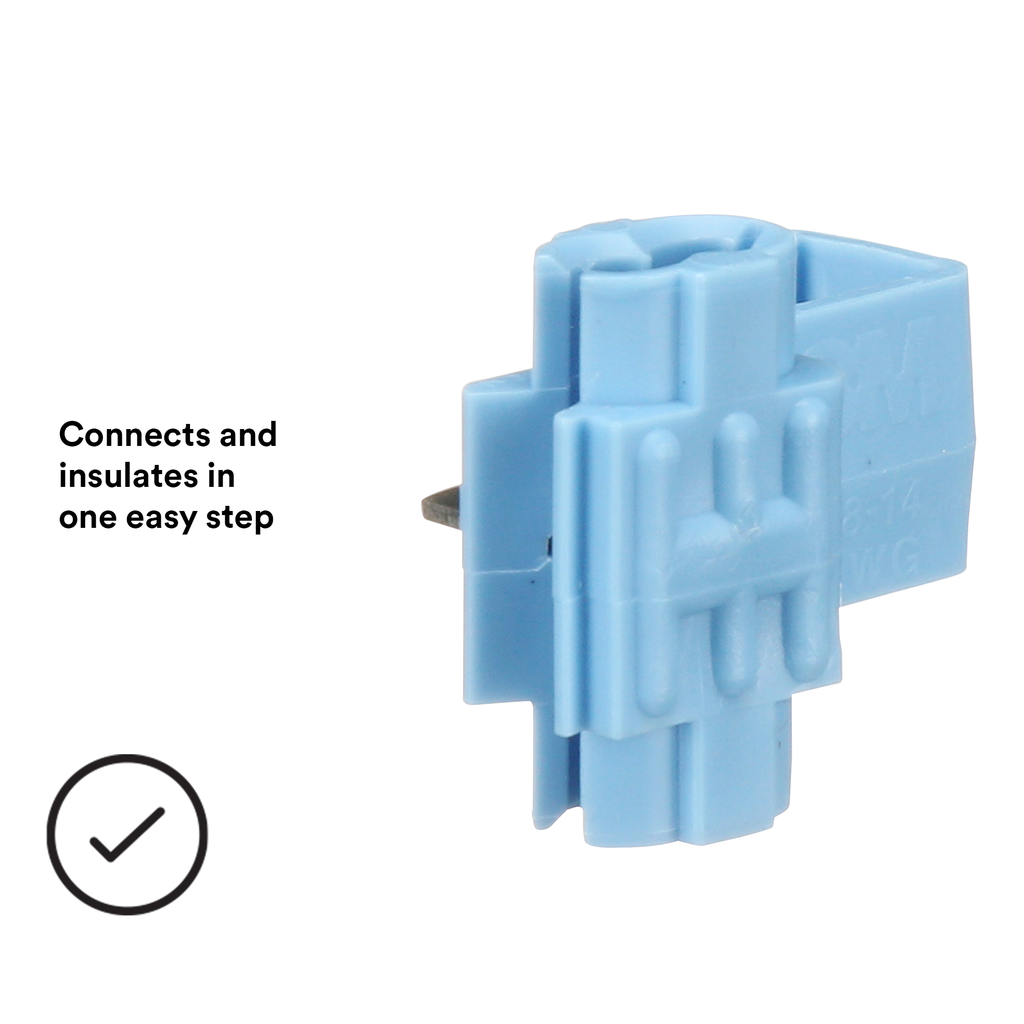

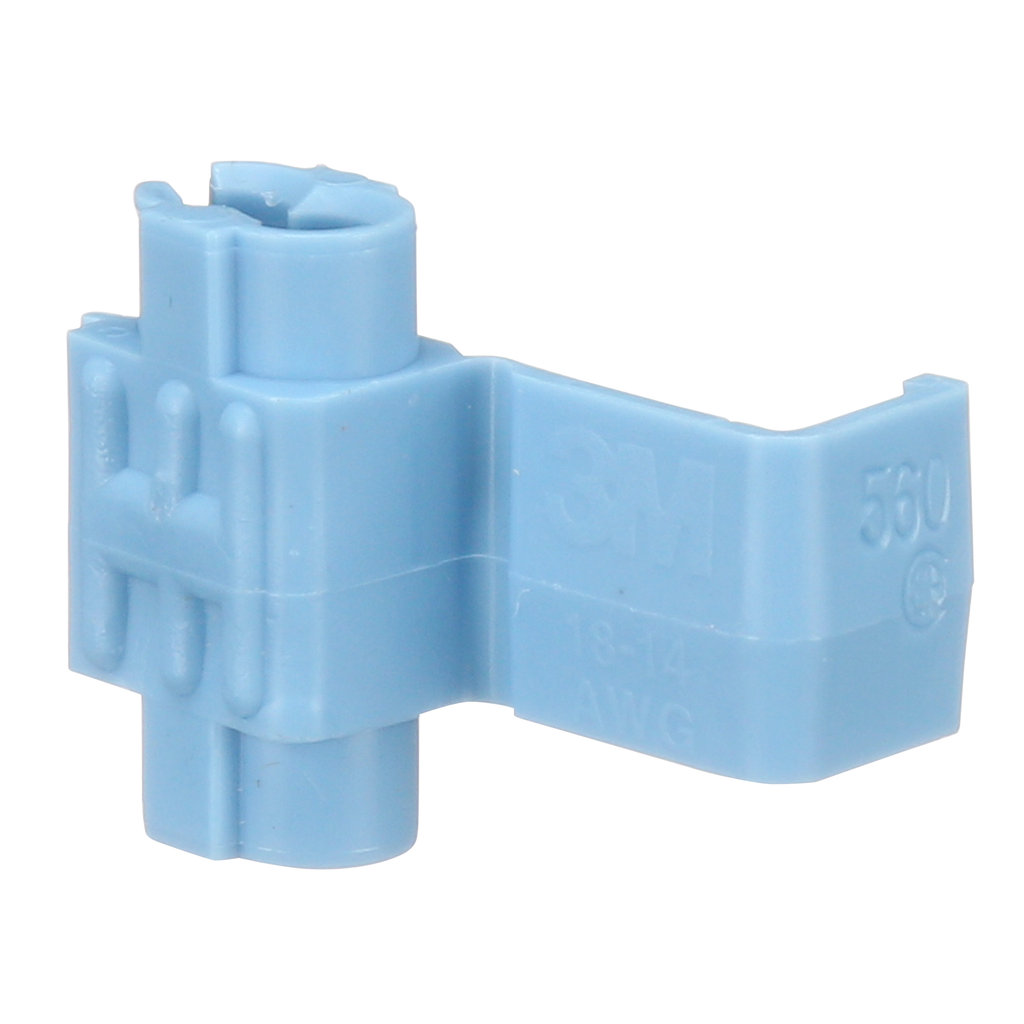

3M™ Scotchlok™ Insulation Displacement Connector 560/560B is a double run or tap connector for tap or parallel splicing. It is suitable for general purpose electrical connections on an auto, boat, van or trailer. Polypropylene insulated, self stripping and flame retardant.

Technical Information

Cable Size
18 - 16 AWG/14 AWG Stranded
Conductor Size
18-16 AWG/18-14 AWG
Connection Type
Double Run Or Tap
Flame Retardant
Yes
Max Operating Temperature
105.0 degrees C
Temperature Rating
221 F
Type
Insulation Displacement
Voltage
600 Volt
Wire Size
18-16 AWG / 14 AWG Stranded

Manufacturer Information

Brand
Scotchlok
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
054007008392
Color
Light Blue
GTiN
10054007008399
Product Type
Connector
Product UPC
05400700839

Certifications and Compliance

Country of Origin
USA
Features
  • Blue, polypropylene-insulated wire connector is suitable for tap or parallel splicing
  • Accommodates 18 to 14 AWG solid/stranded, tinned/untinned copper conductors
  • UL Listed, UL 486D approved, and RoHS 2011/65/EU Compliant
  • Operating temperature 221F (105C) with a 600 volts maximum for building wire, and a 1000 volts maximum for signs, fixtures and luminaires.
  • UL listed for AWG only
