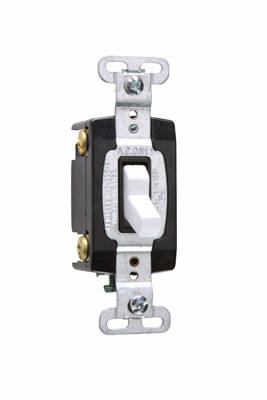

Product image for Pass & Seymour CSB15AC4-W Construction 4Way Switch, Back & Side Wire, 15Amp 120/277Volt, White
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour CSB15AC4-W Construction 4Way Switch, Back & Side Wire, 15Amp 120/277Volt, White

Manufacturer: Pass & Seymour / Legrand | Catalog # CSB15AC4W | Cooper Electric Part # 24816
$24.90/ea
ea
Log in or register to view your price, purchase history, and more!
Residential Commercial Commercial Hard-Use
Toggle Decora
15A 20A
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
61 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Product Brochure
Construction 4way Switch, Back & Side Wire, 15amp 120/277volt, Gray.

Technical Information

Actuator
Toggle, Rocker/Button
Amperage
15 Amp
Applications
Commercial
Contact Rating
120 V
Duty Rating
Hard Use
Grade
Commercial
Material
Thermoplastic
Number of Poles
4 Pole
Size
3.3"
Type
4 Way
Voltage
120 Volt
Wattage
4 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007126341
Color
White
Finish
Matte
GTiN
00785007126341
Product UPC
78500712634
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
2-3/8 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CSA,FEDSPEC,UL
Country of Origin
Mexico
Features
  • One-piece brass alloy contact arm for reliable electrical performance.
  • One-piece steel strap with integral ground is plated for corrosion resistance.
  • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
  • Heavy-duty toggle bumpers for smooth and quiet operation.
  • Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
  • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
  • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
  • Oversized silver alloy contacts for longer dependable switch life.
  • Tri-drive terminal and mounting screws.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • Federal Spec Listed
  • CSA Listed
  • cULus Listed
  • UL Listed
