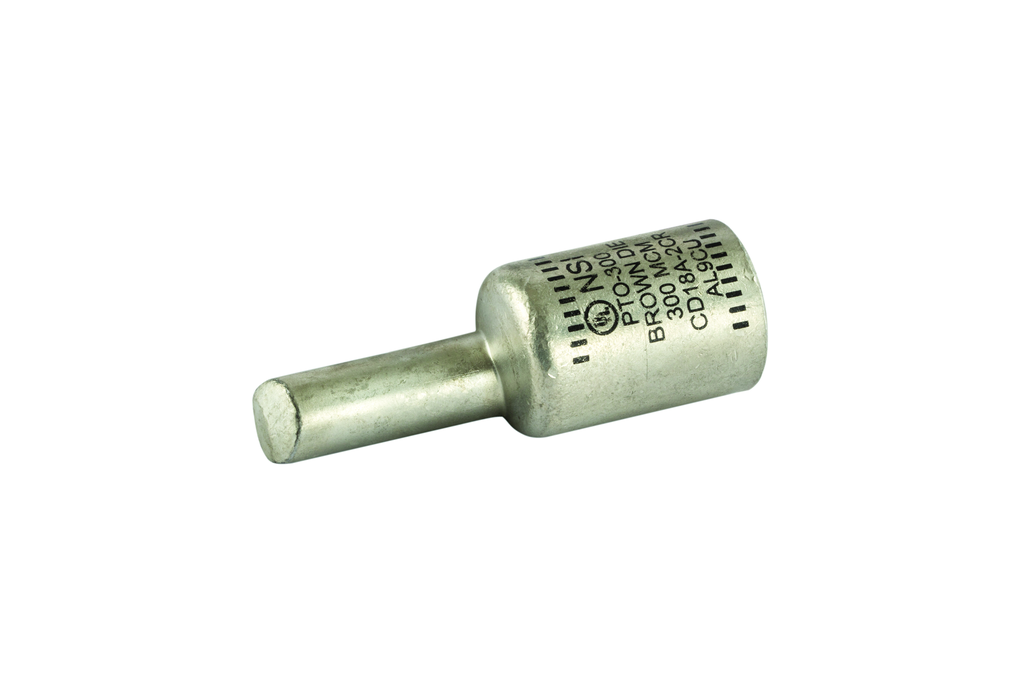

NSI PTO-300 300 MCM Brown Tinned Aluminum 1-Conductor Offset Pin Terminal

Manufacturer: NSi | Catalog # PTO-300 | Cooper Electric Part # 2476
$4,192.82/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Offset Pin Terminal 300 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.

Technical Information

Applications
Terminate, Splice, Tap Power Connectors
Conductor Size
300 kcmil
Connection Type
1/0 Pin
Insulation Material
Plastisol Cover
Material
Aluminum
Max Temperature
194 degrees F
Number of Conductors
1
Number of Poles
1 Pole
Size
L=3.09 - OD=1.09 - ID=.657 - Pin Dia=.530
Standard
UL486
TC Connection
1/0 Pin
Temperature Rating
90 degrees C
Type
Offset Pin
Voltage
600 Volt
Wire Size
300 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Pin Terminals

General Product Info

12-Digit UPC
662381033246
Color
Brown
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381033246
Product UPC
66238103324

Dimensions

Height
1.09 Inch
Length
3.09 Inch
Warranty Length
1 yr
Width
1.09 in

Certifications and Compliance

Country of Origin
India
Features
  • All-aluminum pin terminal designed for termination of both aluminum and copper conductors
  • Pin is offset for use in tight applications while providing ease of installation in side by side applications
  • The solid pin is made of aluminum and is Tin-plated and pre-filled with oxide inhibitor
  • Great for paralleling cable
  • A cover is provided for quick insulation
Certifications and Standards
  • UL Listed
  • UL 486A-486B
