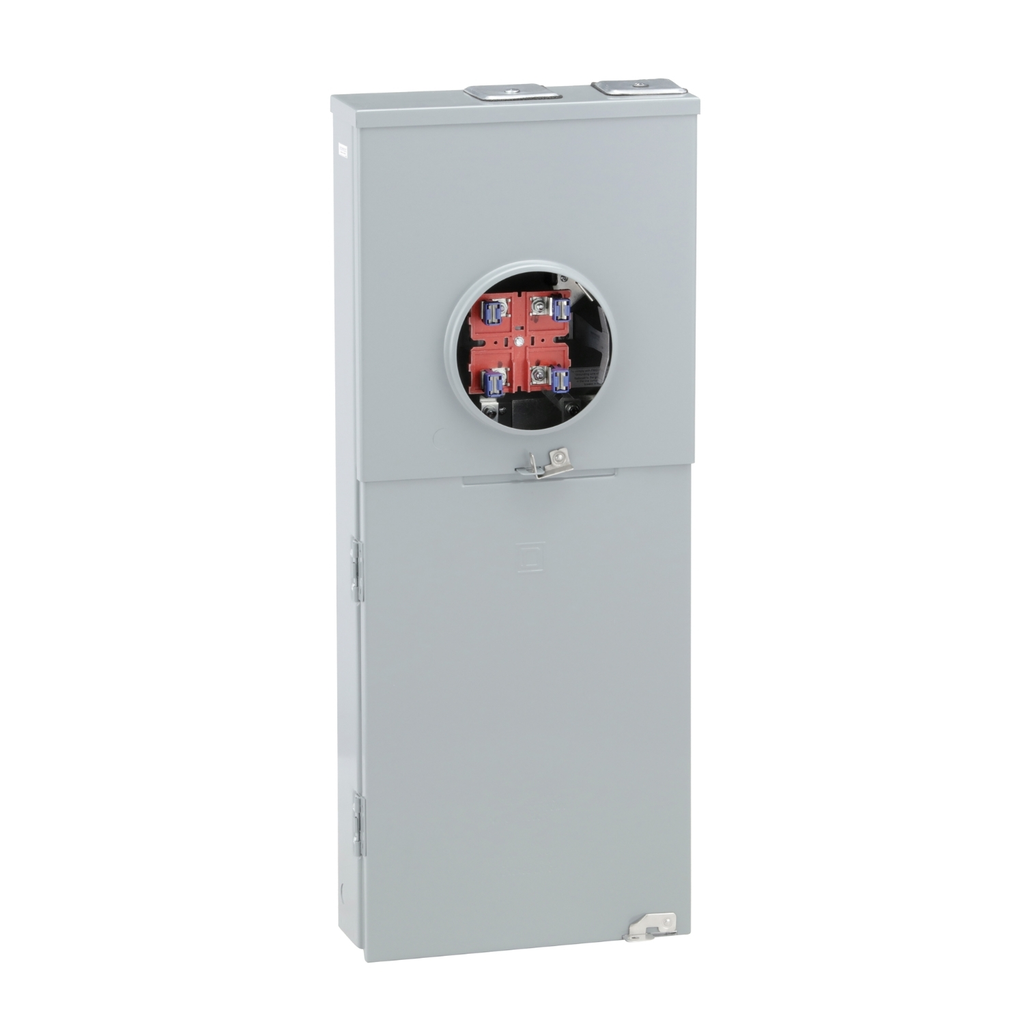

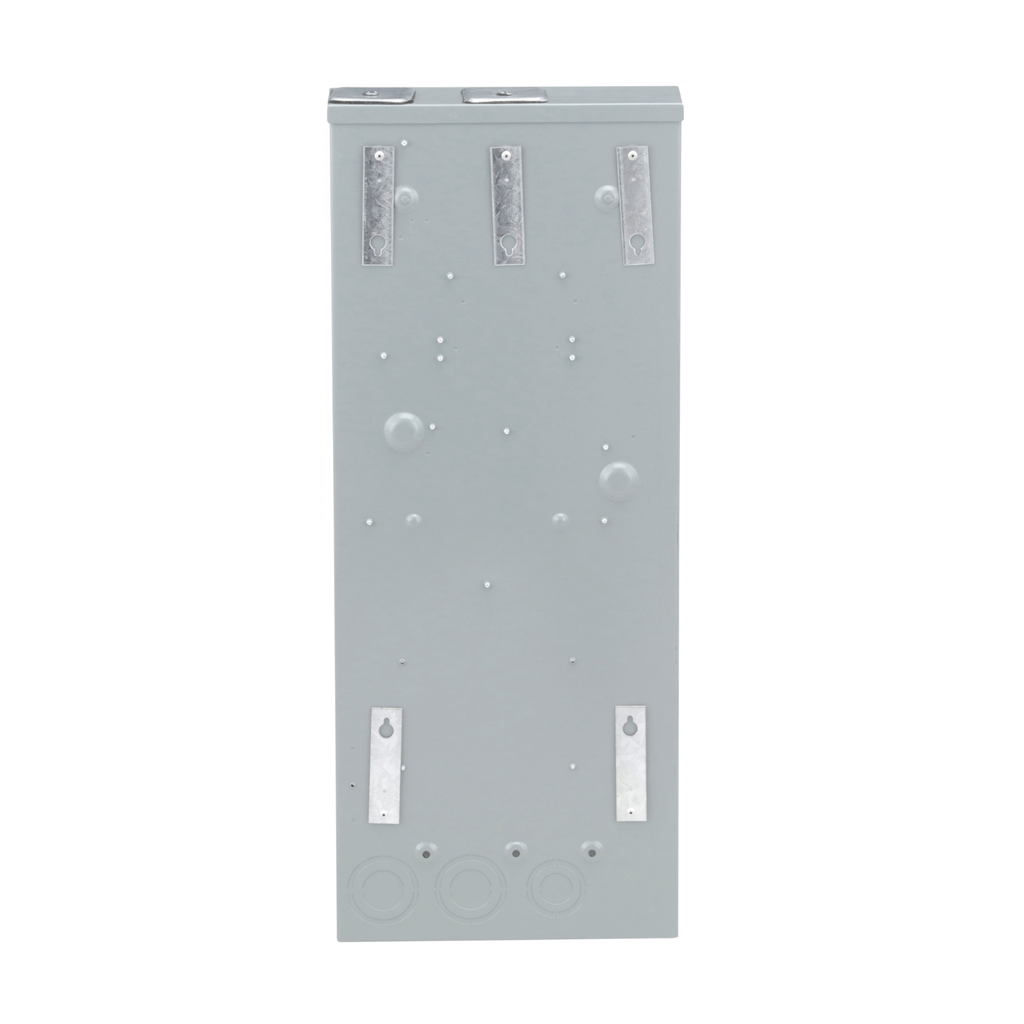

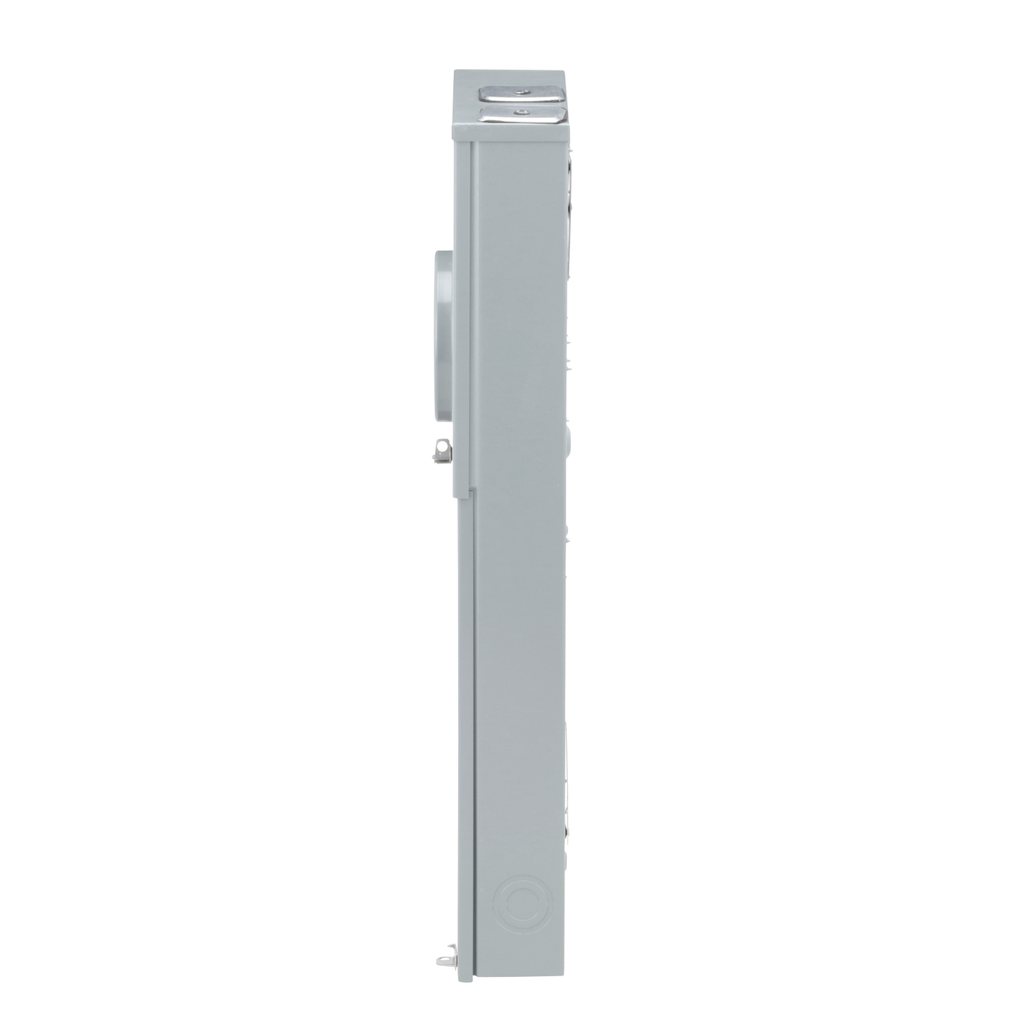

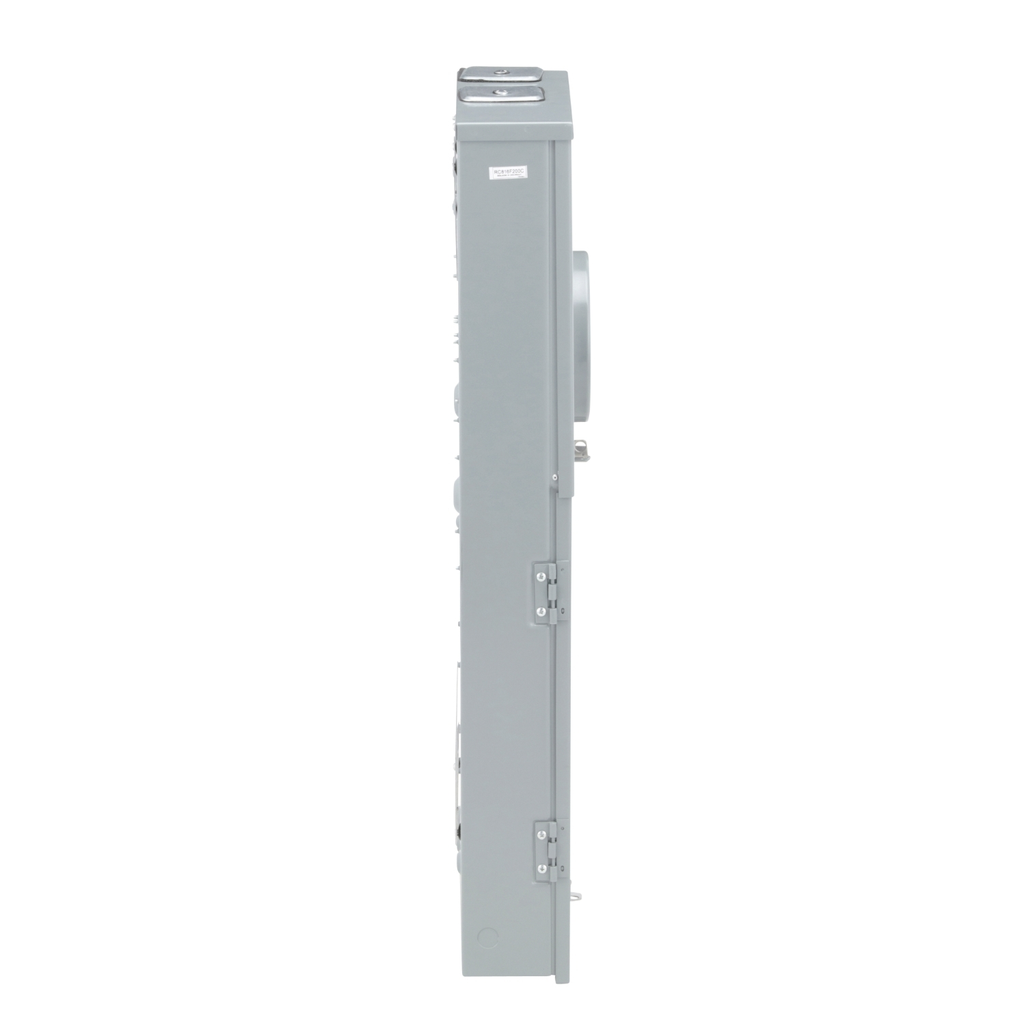

Square D RC816F200C 200 Amp 1-Phase 3-Wire Surface Mount Overhead/Underground Service Ringless Type Meter Main

Manufacturer: Square-D / Schneider | Catalog # RC816F200C | Cooper Electric Part # 24720
$1,227.00 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean opens monday 7:00am et
8 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Catalog Page Product Spec Sheet Product Brochure
The Square D® Load Centers and Combination Service Entrance Devices, RC816F200C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM Ringless Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior single main service disconnect with feed-thru lugs.

Technical Information

Amperage
200 Amp
Cable Entry
OH-UG
Conductor Size
6 AWG-350 kcmil
Line Rated Current
200 A
Mounting Type
Surface
Number of Circuits
16
Number of Phases
1 Phase
Number of Spaces
8
Short Circuit Current
22 kA
Short Circuit Current Ratng
22 kA
Size
14.37 IN,35.13 IN
Type
METER MAINS,RINGLESS
Wire Size
AWG 6...350 kcmil aluminium/copper)line side;AWG 12...AWG 2/0 aluminium/copper)service ground

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901863922
GTiN
00785901863922
Product UPC
78590186392

Dimensions

Depth
5.07 Inch
Height
35.13 Inch
Warranty Length
18 mth
Width
14.37 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL E-6294
Country of Origin
Mexico
Features
  • Homeline™ ringless meter mains support standard utility meters and a main disconnect breakers
  • This single compact solution provides a time and space saving solution for contractors and installers
  • Suitable for use as service entrance equipment
  • CSED allows for the meter socket to integrate with the load center into one compact design
  • Product conforms to the electrical characteristics per UL and ANSL standards
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Accessory Products
  • LK100AN
  • LK225AN
  • 5J
