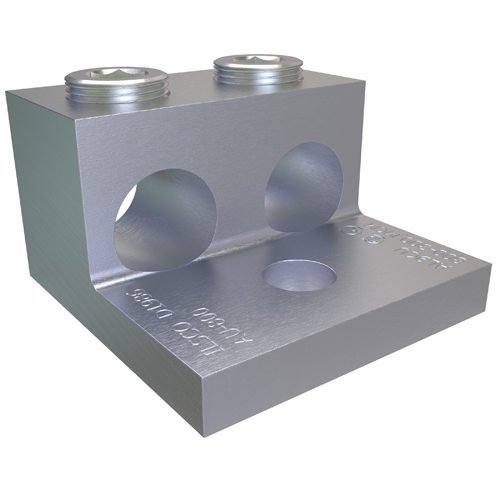

Product image for Ilsco AU-800 Aluminum Mechanical Lug, Conductor Range 800-300, 2 Ports, 1 Hole, 5/8in Bolt Size, Tin Plated, UL, CSA
Email

Ilsco AU-800 Aluminum Mechanical Lug, Conductor Range 800-300, 2 Ports, 1 Hole, 5/8in Bolt Size, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # AU-800 | Cooper Electric Part # 24582
$72.80/ea
ea
Log in or register to view your price, purchase history, and more!
1 2 3 4
0

Not Available for Pickup at Ocean Opens Tuesday 7:00am ET
5 available

For Delivery

Order by Tuesday 5:00pm ET for delivery Wednesday
Not in local stock *
Check another branch
Product Spec Sheet
ILSCO Mechanical Lug, Two Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 5/8 in, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 800 kcmil - 300 kcmil, 2 conductors, 2 ports/wireways, Drive Type Main 1/2 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
Mechanical Lug, Two Conductor
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.656 in
Number of Conductors
2
Number of Holes
1 Hole
Standard
UL Specifications: UL 486A-B,CSA File Number: LR-29601,UL File Number: E6207
TC Connection
Mechanical
Temperature Rating
90 degrees C
Type
AU:2 CONDUCTOR AL/CU
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669006803
Color
Silver
Finish
Tin Plated
GTiN
00783669006803
Product UPC
78366900680
Weight
1.152 lb

Dimensions

Height
1.938 Inch
Length
3-3/8 Inch
Width
3.188 in
