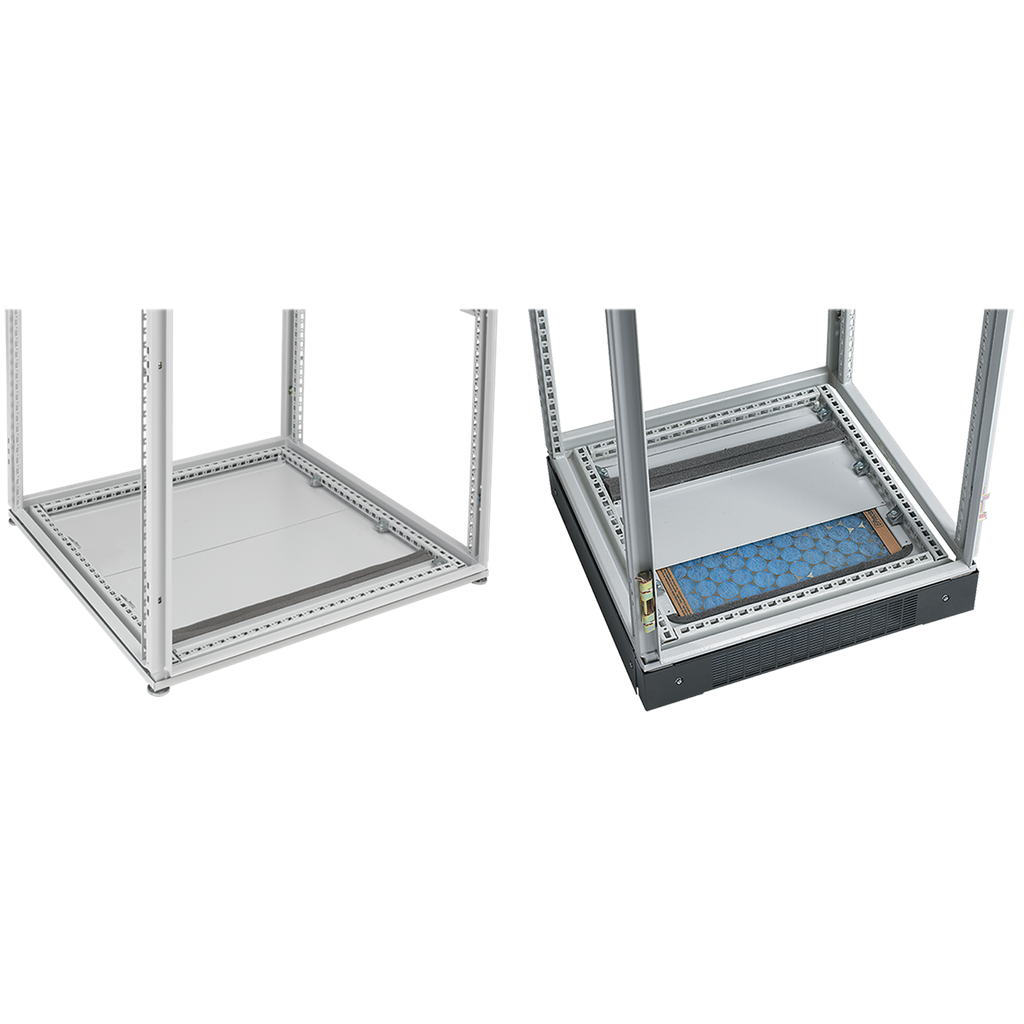

Product image for Hoffman PGP165 ProLine Gland Plates, fits 1600x500mm, Painted Solid
Email

Hoffman PGP165 ProLine Gland Plates, fits 1600x500mm, Painted Solid

Manufacturer: Hoffman | Catalog # PGP165 | Cooper Electric Part # 245383
$759.19/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Adjustable Gland Plates are used to seal the bottom of the ProLine frame. Solid, vented and shielded Gland Plates are available. Solid and filtered gland plates include covers that are gasketed to maintain Type 12 enclosure requirements. All installation hardware is included. Solid Gland Plate and EMC Gland Plate are accessories to 100-mm Solid Base, 100-mm/200-mm Plinth Base, Mobile Base and Transportation Base. These gland plates can be used without a base if casters, levelers or frame feet are installed. EMC Gland Plate maintains a Type 1 rating.

Technical Information

Applications
Controls and Drives; Power Distribution
Color Coding
RAL 7035
Material
Steel
Size
fits 1600x500mm
Type
Bases and Base Accessories

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine

General Product Info

12-Digit UPC
783510299590
Color
Light Gray
Finish
Powder Coated
GTiN
00783510299590
Product UPC
78351029959
Weight
30 lb

Dimensions

Height
2-3/4 Inch
Length
63-1/2 Inch
Thickness
1.9 mm
Width
23.25 in
Features
  • Solid Gland Plate and EMC Gland Plate are accessories to 100- mm Solid Base, 100-mm/200-mm Plinth Base, Mobile Base and Transportation Base. These gland plates can be used without a base if casters, levelers or frame feet are installed.
  • Solid Gland Plate: the Solid Gland Plate can be used with all ProLine subpanels or rack angles. The gland plate consists of a base mounting surface and two adjustable foam-gasketed plates that permit cable entry. The plate can be rotated 180 degrees for front or rear cable entry.
  • EMC Gland Plate: This gland plate can be used with subpanels or rack angles. Gland plate consists of a base mounting surface and two adjustable gland plates (both have a conductive coating) with conductive fabric-over-foam gasket for cable entry.
  • Filtered (Vented) Gland Plate: Filtered Gland Plate is used only in conjunction with Vented Plinth Base Covers. The plate can be used with all ProLine subpanels or rack angles. It consists of a mounting base, three adjustable plates for cable entry, a filter and filter retaining rails. Manufactured from 16 gauge steel and finished with RAL 7035 textured light-gray polyester powder paint. Replacement filters available. EMC Gland Plate maintains a Type 1 rating.
  • All hardware included
