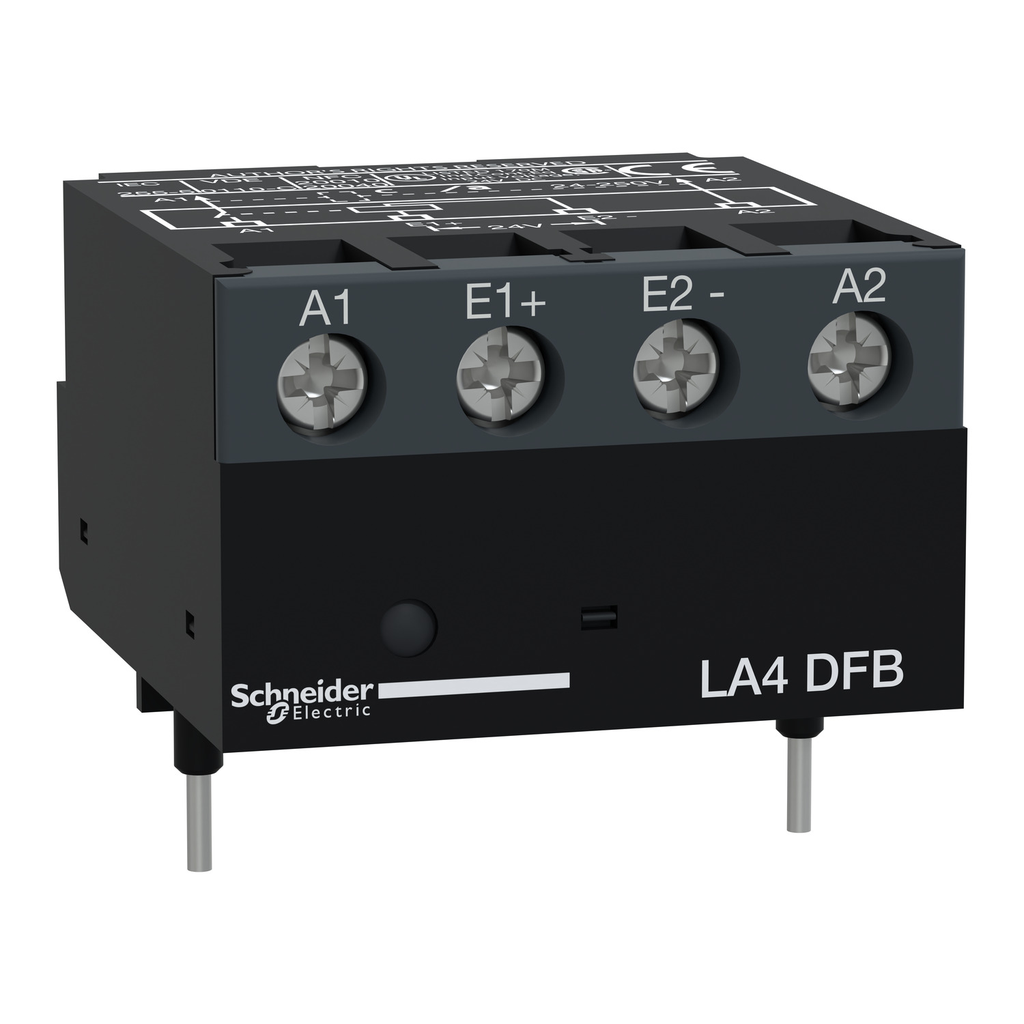

Product image for Square D LA4DFB 24 to 250 VAC 24 VDC Mechanical Relay Interface Amplifier Module
Image thumbnail 0
Image thumbnail 2
Email

Square D LA4DFB 24 to 250 VAC 24 VDC Mechanical Relay Interface Amplifier Module

Manufacturer: Square-D / Schneider | Catalog # LA4DFB | Cooper Electric Part # 245310
$155.88/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
TeSys Deca low signal interface module, for control of contactors LC.D09-D115 (3P). Electromechanical relay interface controlled by a 24V DC input signal. To be used with contactors with 24-250V AC coils (B7 to U7). To be mounted on a coil wiring adapter LAD4BB for contactors LC.D09-D38, LAD4BB3 for contactors LC.D40A-D80A, and directly on contactors LC.D80-D115. Green Premium compliant (RoHS/REACh).

Technical Information

Applications
LC1D09...D150
Coil Voltage
24 to 250 VAC
Current
20 degrees C
Indicator
LED indicator
Mounting Type
Top Mounted
Net Weight
0.05 kg
Operating Temperature
-25-55 degrees C
Range
TeSys
Size
0.47 in
Standard
IEC 60255-5
Storage Temperature
-40-80 degrees C
TC Connection
DIRECT
Technology Type
Electromechanical
Type
Interface module
Voltage
250 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS

General Product Info

12-Digit UPC
389110236371
GTiN
03389110236378
Product UPC
78590126090
Weight
0.05 kg

Dimensions

Height
12 mm
Warranty Length
18 mth

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Tunisia
Compatible Products
  • LC1D09M7
  • LC1D18M7
  • LC1D25M7
  • LC1D09P7
  • LC1D09B7
  • LC1D09F7
  • LC1D12M7
  • LC1D32M7
  • LC1D12B7
  • LC1D18P7
  • LC1D18B7
  • LC1D25P7
  • LC1D12P7
  • LC1D32B7
  • LC1D25B7
  • LC1D09G7
  • LC1D18F7
  • LC1D32P7
  • LC1D25F7
  • LC1D12F7
  • LC1D09U7
  • LC1D18G7
  • LC1D09E7
  • LC1D25G7TQ
  • LC1D12G7
  • LC1D32F7
  • LC1D25G7
  • LC1D32G7
  • LC1D80M7
  • LC1D25E7
  • LC1D18U7
  • LC1D12E7
  • LC1D95M7
  • LC1D32U7
  • LC1D18E7
  • LC1D25U7
  • LC1D12U7
  • LC1D18F7TQ
  • LC1D80F7
  • LC1D38P7
  • LC1D115M7
  • LC1D80P7
  • LC1D32E7
  • LC1D38B7
  • LC1D150M7
  • LC1D115F7
  • LC1D123B7
  • LC1D95P7
  • LC1D38F7
  • LC1D09Q7
  • LC1D95F7
  • LC1D80G7
  • LC1D096M7
  • LC1D150F7
  • LC1D115P7
  • LC1D093P7
  • LC1D183P7
  • LC1D40G7M
  • LC1D096F7
  • LC1D115G7
  • LC1D123P7
  • LC1D150P7
  • LC1D323B7
  • LC1D38U7
  • LC1D18Q7
  • LC1D25Q7
  • LC1D80M5
  • LC1D12Q7
  • LC1D123E7
  • LC1D80B7
  • LC1D09FE7
  • LC1D150G7
  • LC1D25D7
  • LC1D25FE7
  • LC1D186M7
  • LC1D09D7
  • LC1D80U7
  • LC1D115B7
  • LC1D12D7
  • LC1D80E7
  • LC1D18D7
  • LC1D32FE7
  • LC1D186F7
  • LC1D95B7
  • LC1D50G7
  • LC1D40G7
  • LC1D256M7
  • LC1D32Q7
  • LC1D12FE7
  • LC1D253B7
  • LC1D65G7
  • LC1D183B7
  • LC1D126M7
  • LC1D183E7
  • LC1D95U7
  • LC1D186B7
  • LC1D256F7
  • LC1D12LE7
  • LC1D95E7
  • LC1D65F7
  • LC1D80G7M
  • LC1D115U7
  • LC1D326M7
  • LC1D093B7
  • LC1D32D7
  • LC1D386M7
  • LC1D95G7
  • LC1D80Q7
  • LC1D50F7
  • LC1D326F7
  • LC1D1156M7
  • LC1D186P7
  • LC1D38G7
  • LC1D1506M7
  • LC1D50U7
  • LC1D115M5
  • LC1D40F7
  • LC1D093F7
  • LC1D115E7
  • LC1D253P7
  • LC1D150B7
  • LC1D150U7
  • LC1D323P7
  • LC1D50B7
  • LC1D40M7
  • LC1D95Q7
  • LC1D126F7
  • LC1D099G7
  • LC1D806LE7
  • LC1D326B7
  • LC1D80FE7
  • LC1D09G7TQ
  • LC1D096B7
  • LC1D32LE7
  • LC1D326P7
  • LC1D09FC7
  • LC1D806M7
  • LC1D115P5
  • LC1D09LE7
  • LC1D95FE7
  • LC1D1506G7
  • LC1D80D7
  • LC1D150E7
  • LC1D096P7
  • LC1D40P7
  • LC1D25LE7
  • LC1D40B7
  • LC1D38Q7
  • LC1D18LE7
  • LC1D1156F7
  • LC1D50M7
  • LC1D18FC7
  • LC1D65B7
  • LC1D183FE7
  • LC1D38FE7
  • LC1D323FE7
  • LC1D32G7TQ
  • LC1D115Q7
  • LC1D183F7
  • LC1D32FC7
  • LC1D256G7
  • LC1D326G7
  • LC1D40U7
  • LC1D150Q7
  • LC1D096G7
  • LC1D65U7
  • LC1D65P7
  • LC1D115G6
  • LC1D1156B7
  • LC1D806G7
  • LC1D186G7
  • LC1D123G7
  • LC1D115FE7
  • LC1D123FE7
  • LC1D1506F7
  • LC1D256B7
  • LC1D256P7
  • LC1D253F7
  • LC1D093M7
  • LC1D65M7
  • LC1D40U7M
  • LC1D80G6
  • LC1D80L6
  • LC1D253M7
  • LC1D1156FE7
  • LC1D12G7TQ
  • LC1D150FE7
  • LC1D1506B7
  • LC1D1156L7
  • LC1D80B5
  • LC1D80L7
  • LC1D323F7
  • LC1D093G7
  • LC1D806F7
  • LC1D115LE7
  • LC1D40L6
  • LC1D40E7
  • LC1D18G7TQ
  • LC1D123F7
  • LC1D09K7
  • LC1D50LE7
  • LC1D323M7
  • LC1D12L7
  • LC1D806B7
  • LC1D126B7
  • LC1D65E7
  • LC1D256U7
  • LC1D95L6
  • LC1D183M7
  • LC1D1506LE7
  • LC1D40G6
  • LC1D126G7
  • LC1D50E7
  • LC1D183G7
  • LC1D150LE7
  • LC1D1156LE7
  • LC1D50G6
  • LC1D09L7
  • LC1D65L6
  • LC1D65G6
  • LC1D95L7
  • LC1D25L7
  • LC1D806K7
  • LC1D186L7
  • LC1D2583E7
  • LC1D1156G7
  • LC1D096L7
  • LC1D80K7
  • LC1D256K7
  • LC1D115U5
  • LC1D80U7M
  • LC1D115L7
  • LC1D256L7
  • LC1D956K7
  • LC1D253E7
