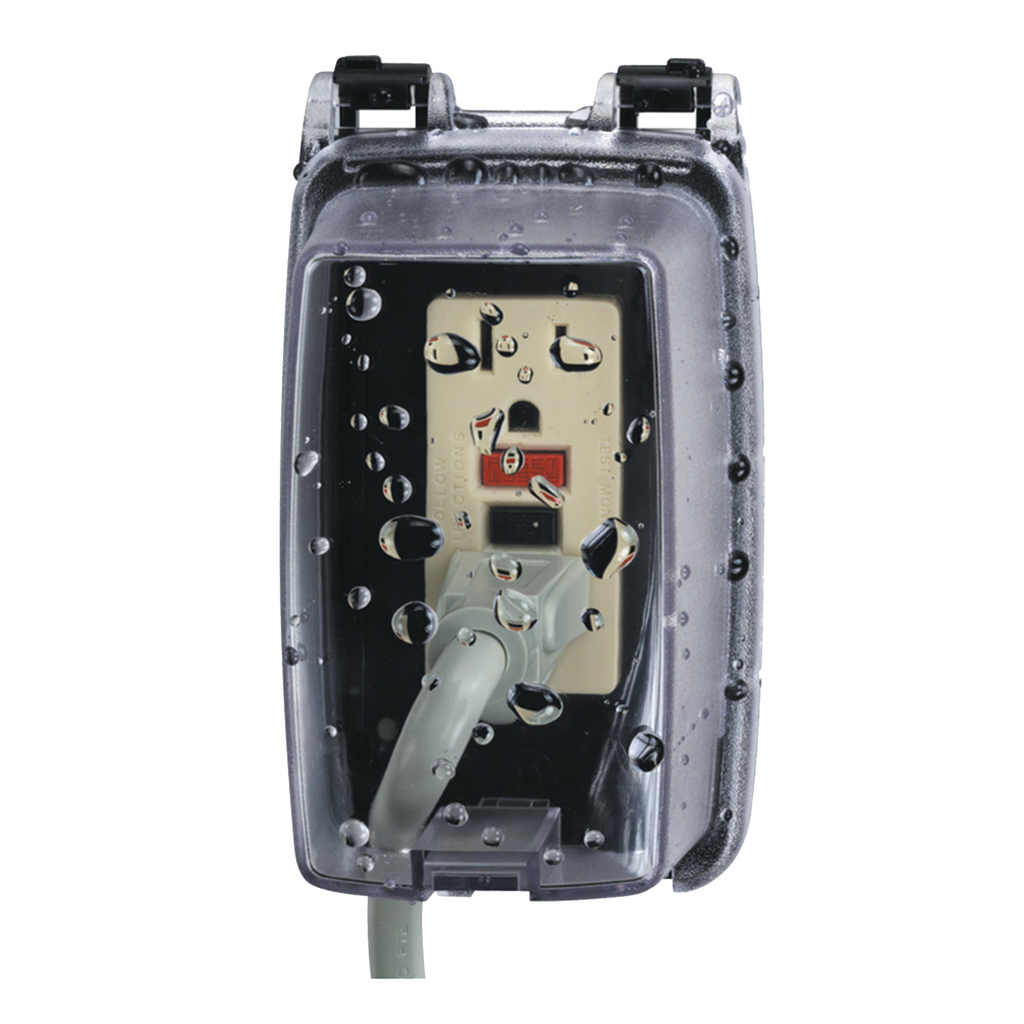

Product image for Intermatic WP1000C 1Gang Vertical Weatherproof In-Use Cover, 2-1/4" Deep - Clear
Email

Intermatic WP1000C 1Gang Vertical Weatherproof In-Use Cover, 2-1/4" Deep - Clear

Manufacturer: Intermatic, Inc | Catalog # WP1000C | Cooper Electric Part # 24525
$35.03/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
4 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet
Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.

Technical Information

Applications
Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage, Schools
Cable Size
(2) 14 Gauge, (1) 12 Gauge
Enclosure Rating
3R
Enclosure Type
NEMA 3R
Gang Type
Single
Insulation Material
Neoprene Gasket
Insulation Type
Neoprene Gasket
Material
Polycarbonate
Mounting Type
Vertical, Screw
Number of Gangs
1 Gang
Number of Outlets
1
Size
2-1/4 DEPTH IN, 57.15 DEPTH MM
Type
Rectangular, Receptacle

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275022515
Color
Clear White
Construction
Heavy-Duty Polycarbonate
Construction Features
Heavy-Duty Polycarbonate
GTiN
00078275022515
Product UPC
07827502251
Shape
Rectangle

Dimensions

Depth
57.15 mm
Height
5-1/2 Inch
Warranty Length
1 yr
Width
3.8 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Complies with 2020 NEC Article 314.15 for damp and wet locations
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1?8\" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
  • Three inserts provided with all models that allow each model to meet multiple installations (up to 8 configurations)
  • Max cord size: (2) #14 AWG or (1) #12 AWG
  • Warranty: 1-year limited
  • NA
