Panduit NE1X3WH6 Slotted Duct, Halogen Free,1"X3"X6',White

Manufacturer: Panduit Corp | Catalog # NE1X3WH6 | Cooper Electric Part # 245162
$63.60/ea
ft
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Engineering Drawing Product Brochure

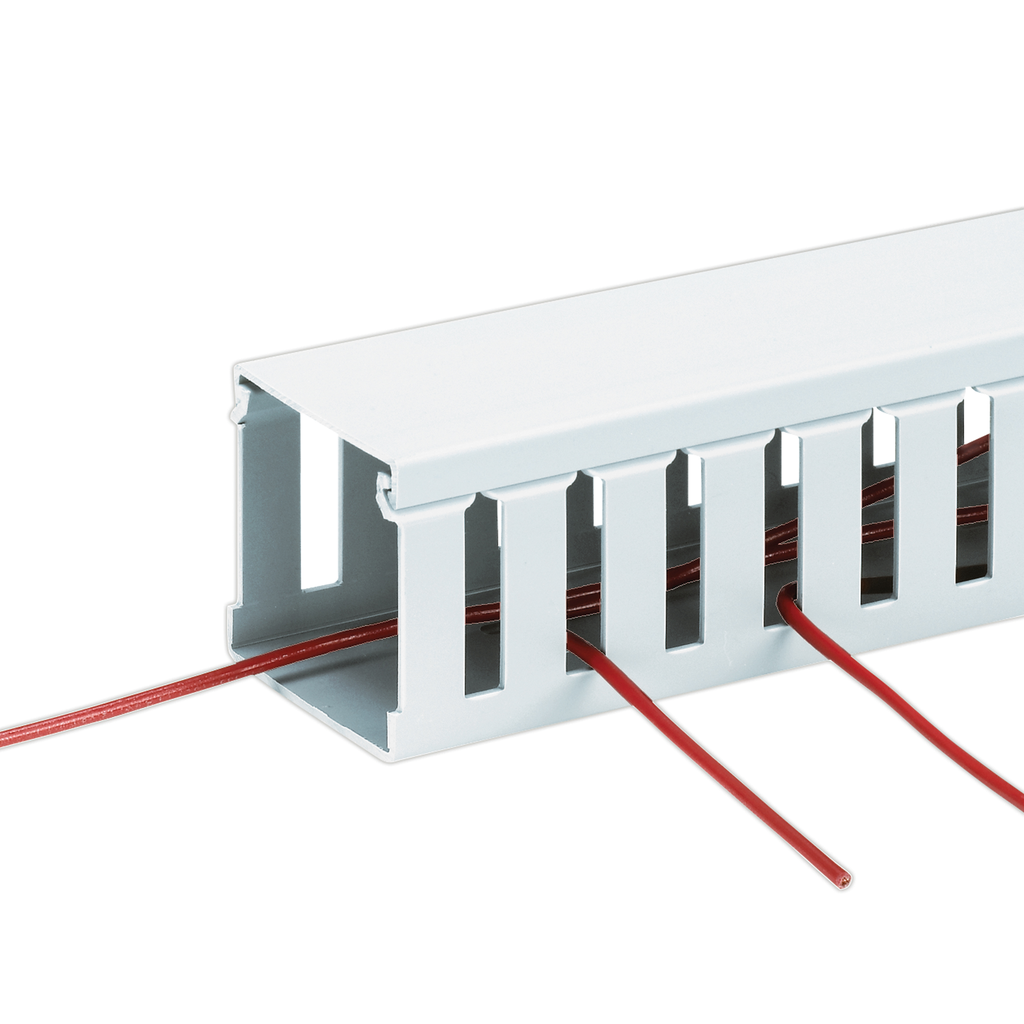

The NE1X3WH6 Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95.C (203.F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 3.06" x 1.14" (77.7 mm x 29.0 mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6 pieces per package.

Technical Information

Applications
Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications
Material
Polyphenylene Oxide
Mounting Type
DIN Standard Mounting Holes
Size
1.00 x 3.00 IN
Standard
CSA,RU Listed,RoHS
TC Connection
Standard Mounting Holes
Type
Base Wiring Duct

Packaging

Pkg Qty
6

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Panduct

General Product Info

12-Digit UPC
074983214846
Color
White
GTiN
00074983214846
Product UPC
07498321484

Dimensions

Height
3.06 Inch
Length
1.8 m
Overall Length
6 ft
Thickness
0.07 in
Width
1.14 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved; EN 45545-2 HL1
