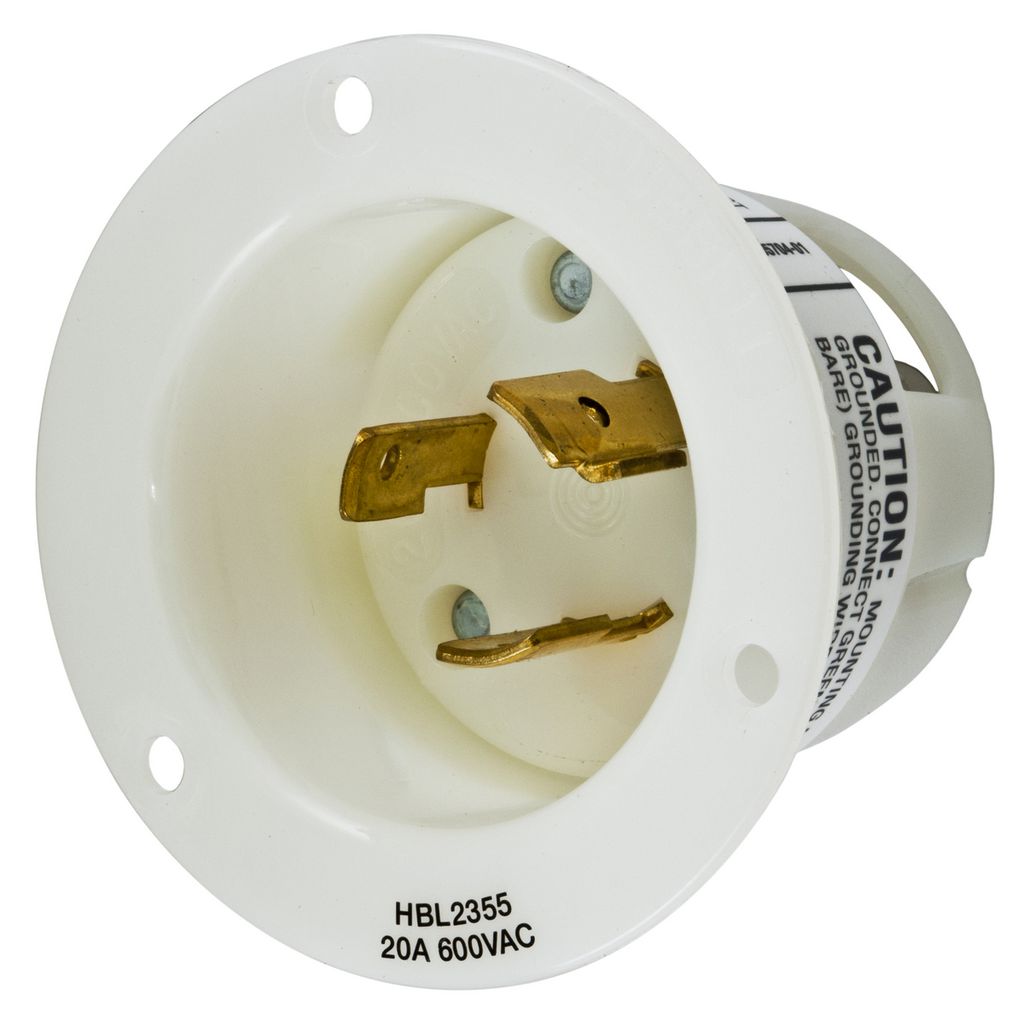

Product image for Hubbell HBL2355 20 Amp 600 Volt 2-Pole 3-Wire NEMA L9-20P White Locking Flanged Inlet
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL2355 20 Amp 600 Volt 2-Pole 3-Wire NEMA L9-20P White Locking Flanged Inlet

Manufacturer: Hubbell Wiring Device | Catalog # HBL2355 | Cooper Electric Part # 243062
$44.38/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 20A 600V AC, 2-Pole 3-Wire Grounding, NEMA L9-20P, Screw Terminal, Nylon casing, Back wired, White.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
16-8 AWG
Current
20 Amp
Dielectric Strength
2500 VAC
Grounding
Grounding
Material
Nylon
Mounting Type
Screw

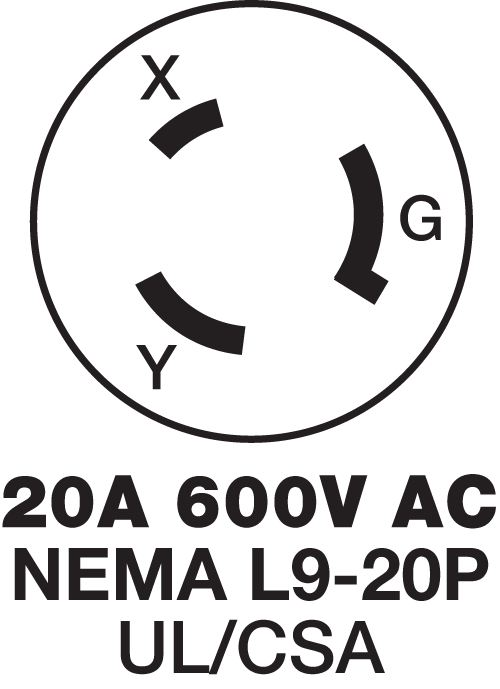

NEMA
L9-20P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
2 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminals
Temperature Rating
-40 to 75 degrees C
Type
Non-Reversing
Voltage
600 Volt
Wattage
120000 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585038063
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585038063
Product UPC
78358503806
Weight
0.2 lb

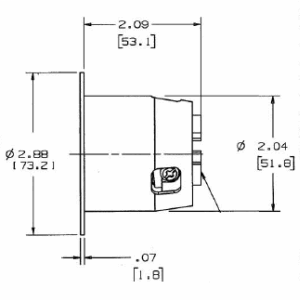

Dimensions

Height
2.09 Inch
Length
2.88 Inch
Width
2.88 in

Certifications and Compliance

Country of Origin
USA
Features
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard Product
