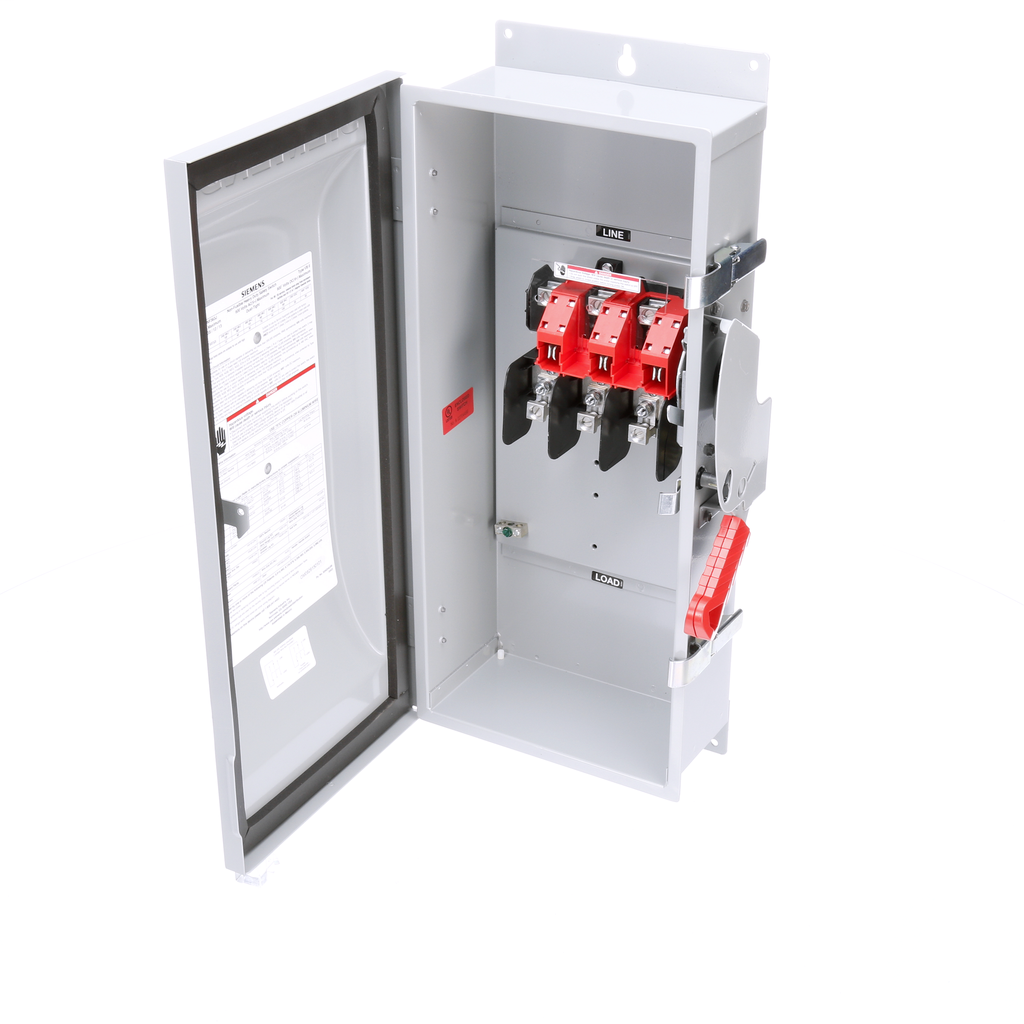

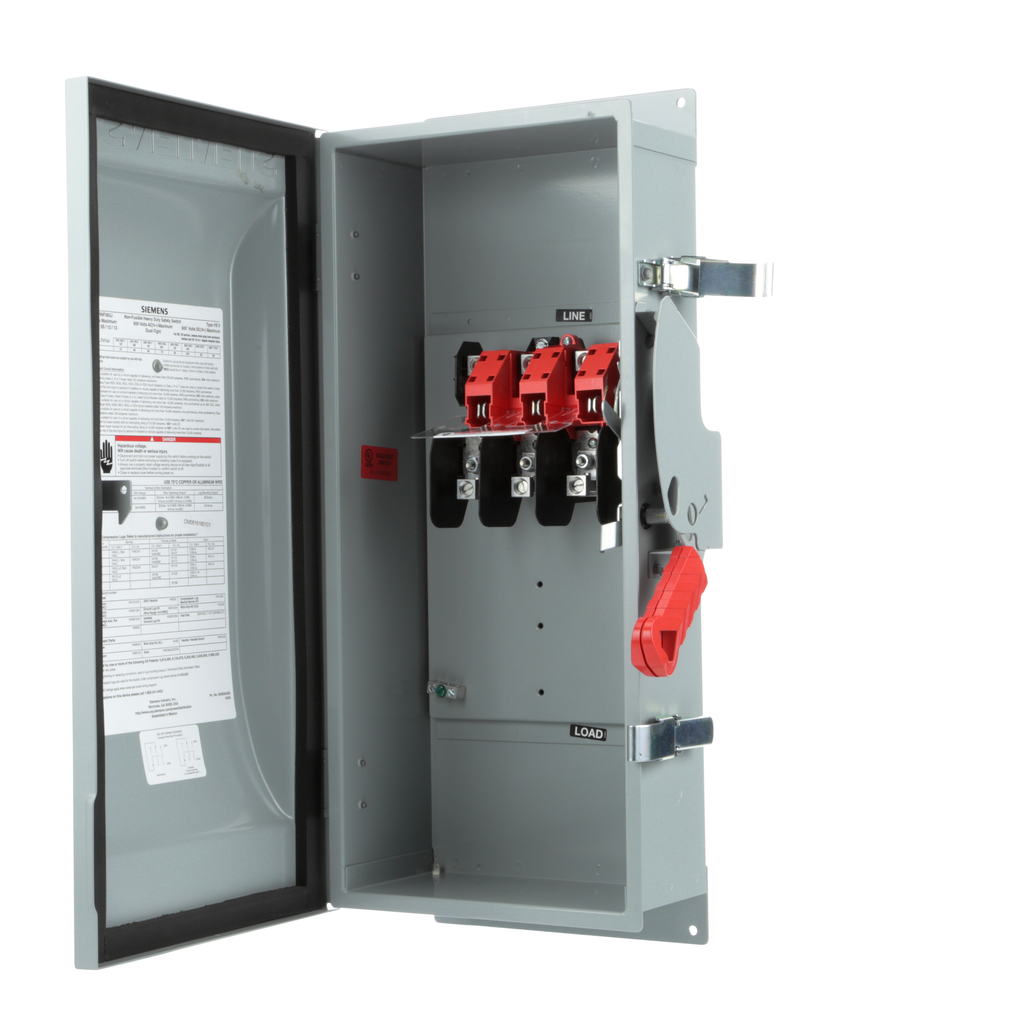

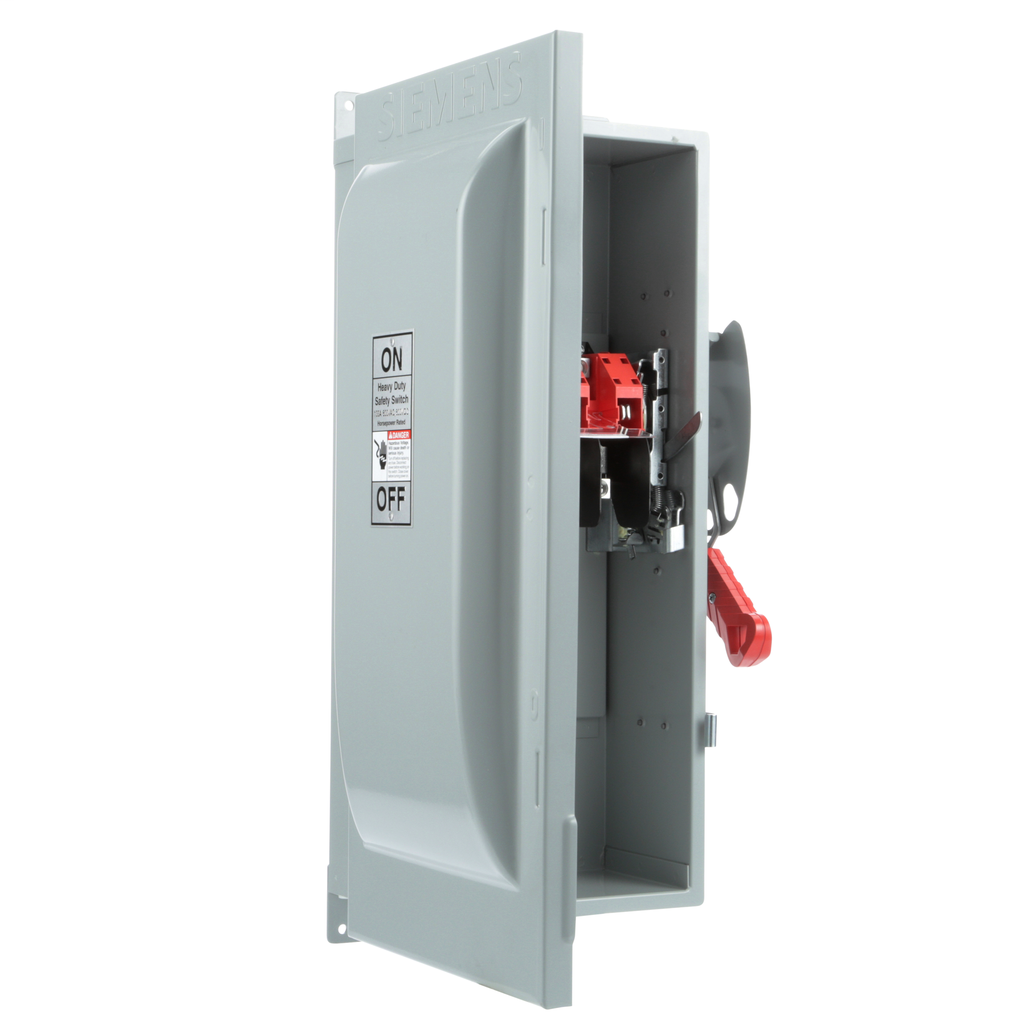

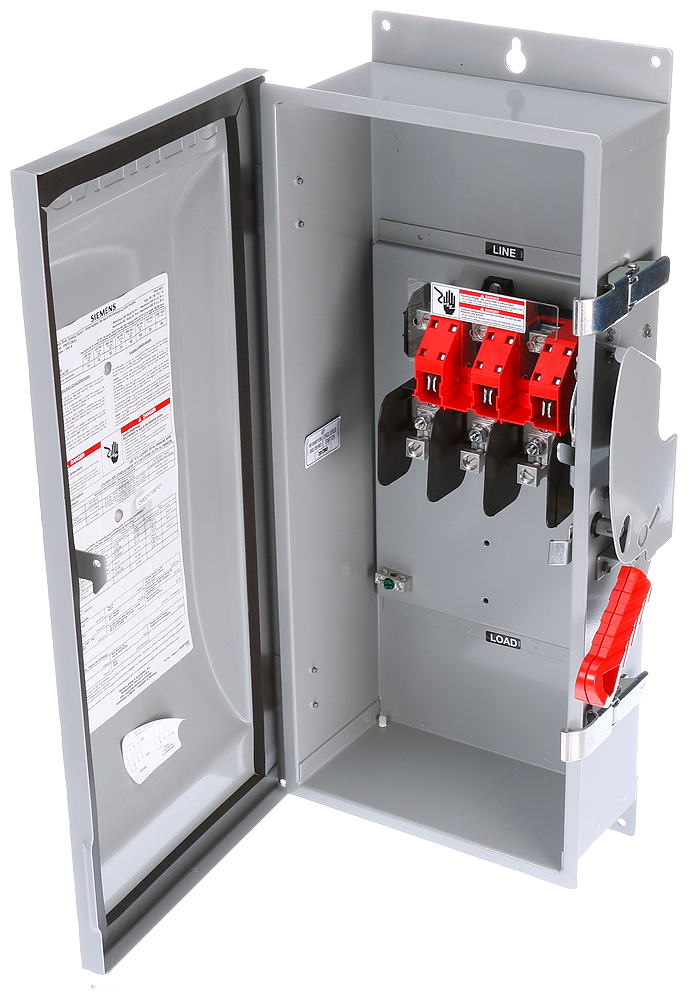

Product image for Siemens HNF363J 240/480/600 VAC 250/600 VDC 100 Amp 3-Pole 3-Wire NEMA 3R/3S/12 Heavy Duty Non-Fusible Safety Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Siemens HNF363J 240/480/600 VAC 250/600 VDC 100 Amp 3-Pole 3-Wire NEMA 3R/3S/12 Heavy Duty Non-Fusible Safety Switch

Manufacturer: Siemens | Catalog # HNF363J | Cooper Electric Part # 239828
$1,005.29/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 3-Pole Non-Fused in a type 12 industrial enclosure. Rated 600VAC (100A).

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Ambient Temperature
-29 C
Amperage
100 Amp
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Connection Type
MECHANICAL LUGS
Enclosure
NEMA12
Frequency
60 Hz
Insulated?
Yes
Material
Steel
Mounting Type
SURFACE
Number of Poles
3 Pole
Operating Cycles
10000
Operating Temperature
-29 degrees C
TC Connection
MECHANICALLUGS
Type
HEAVYDUTYSWITCH
Voltage
600 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
783643151925
GTiN
00783643151925
Product UPC
78364315192
Weight
25.000 lb

Dimensions

Height
8.4 Inch
Length
28.1 Inch
Width
14.700 in

Certifications and Compliance

Country of Origin
Mexico
