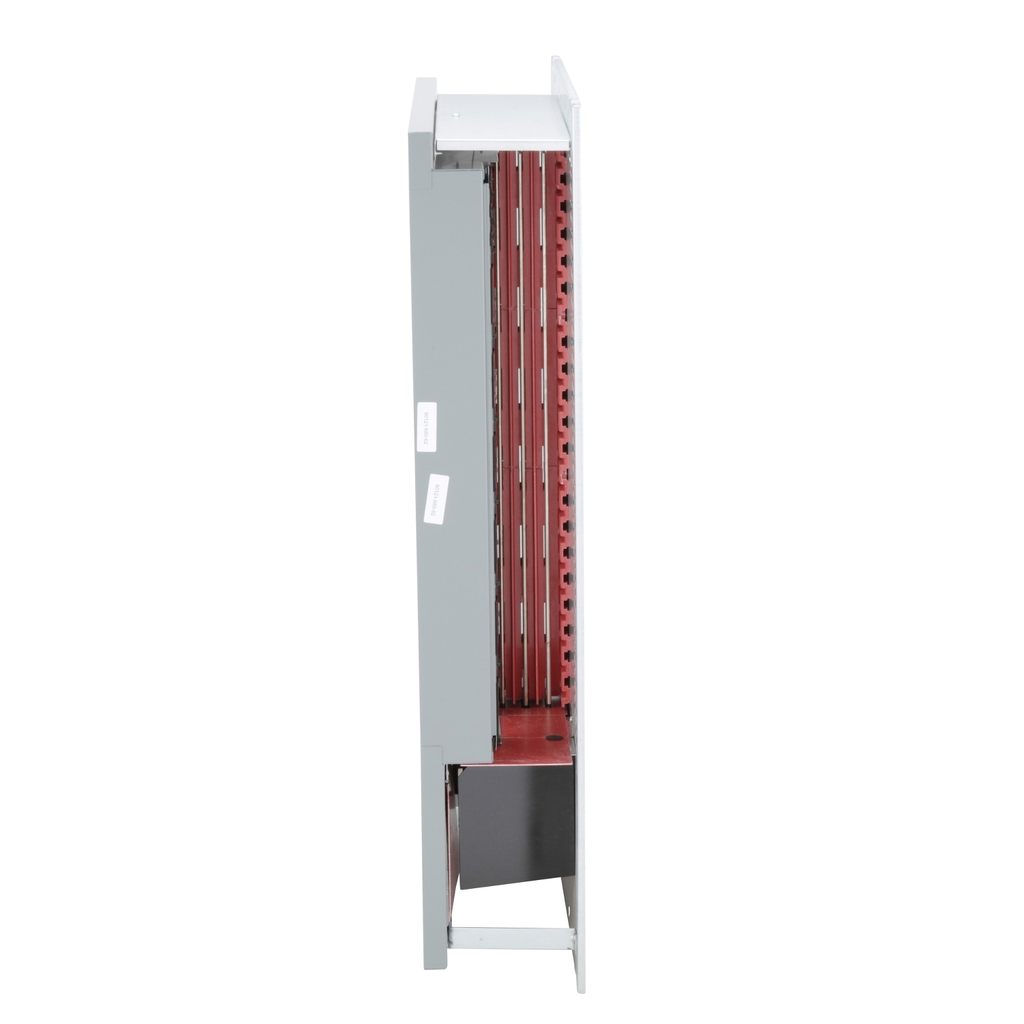

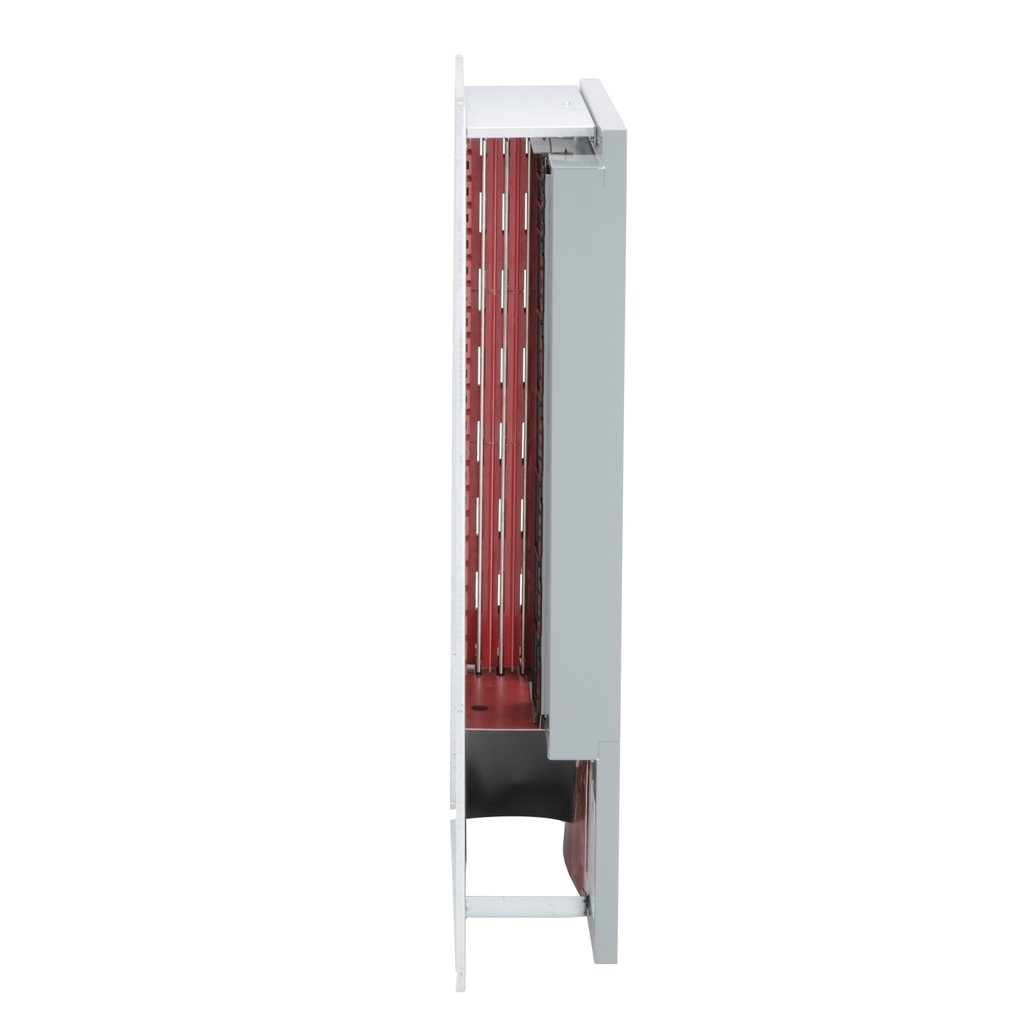

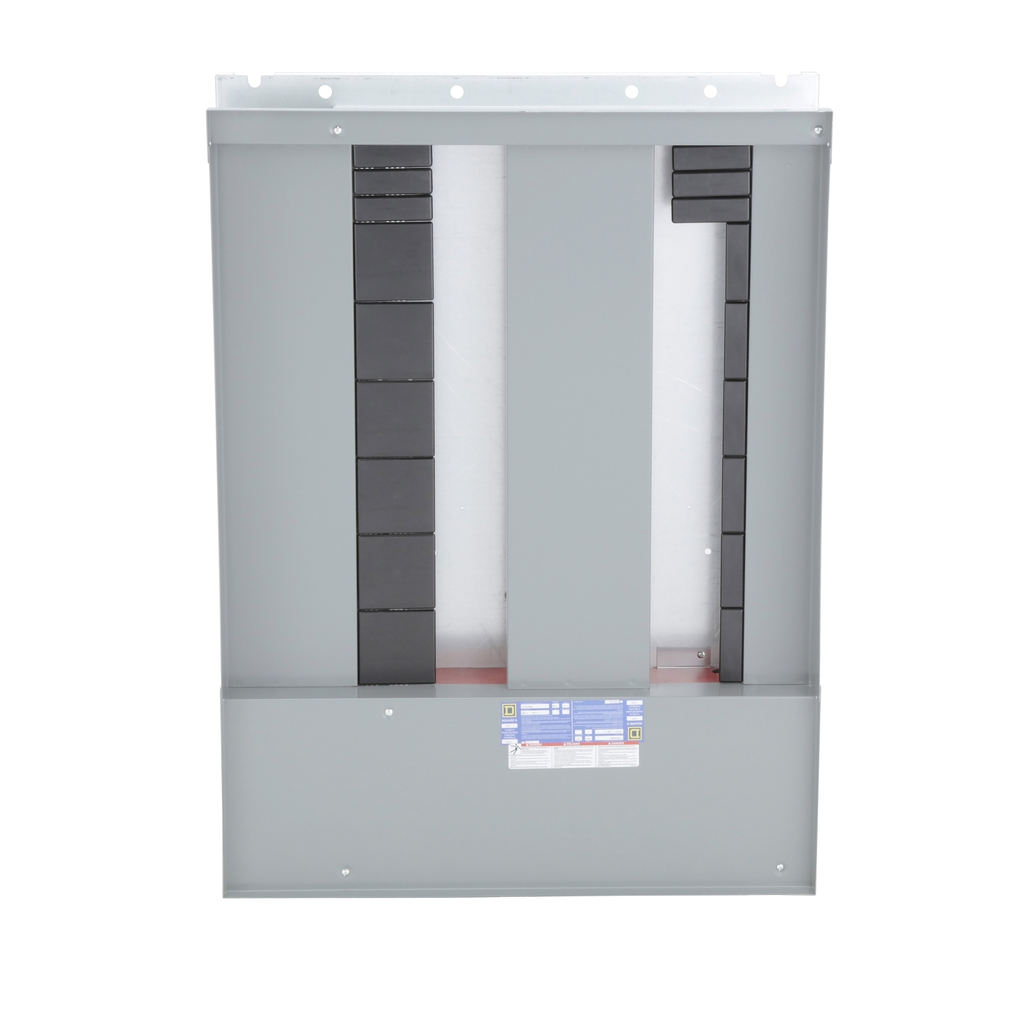

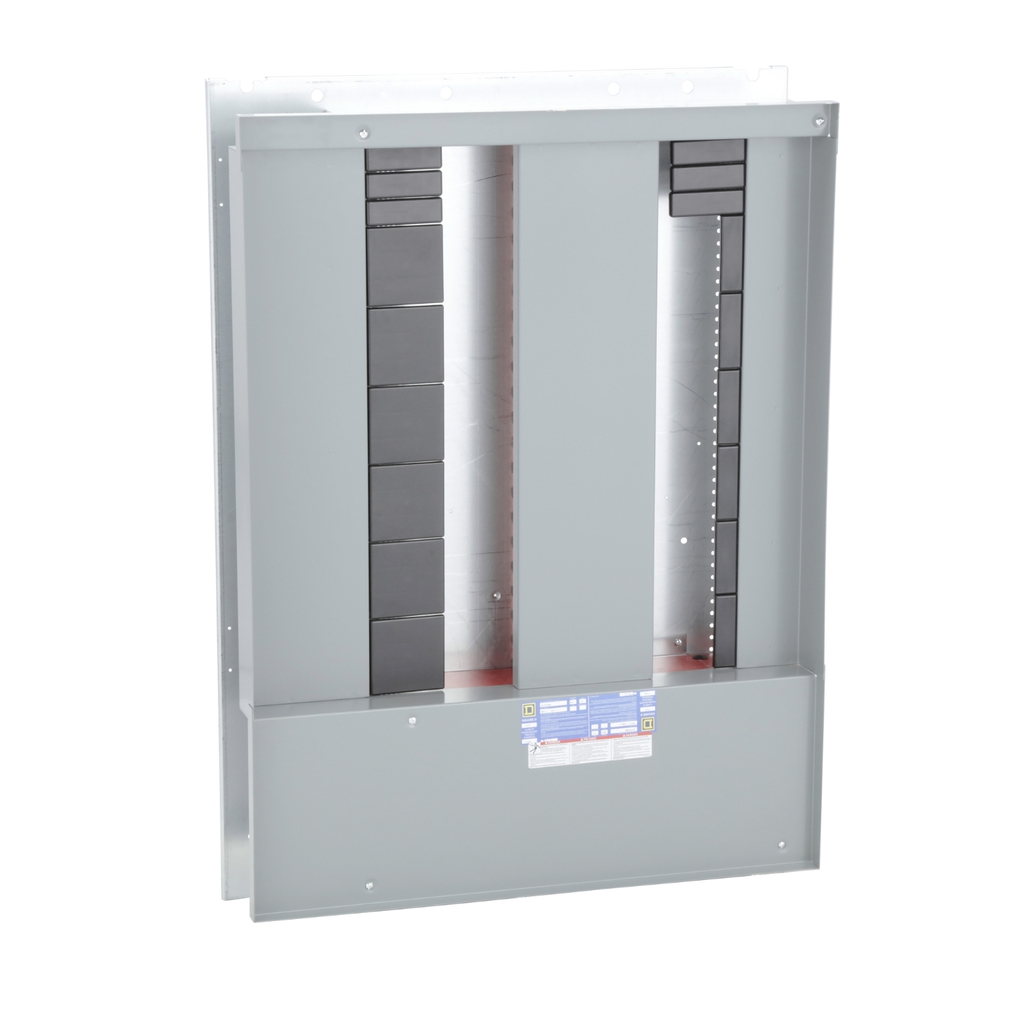

Square D HCP32688 600 VAC 250 VDC 800 Amp 3-Phase 3-Wire Panelboard Interior

Manufacturer: Square-D / Schneider | Catalog # HCP32688 | Cooper Electric Part # 237755
$4,696.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400.1200A main lugs only and 100.1200A main circuit breakers. This HCP I-Line panelboard interior is a 800A and has main lugs. The dimesnions are 68 in (H), 42 in (W). This product is certified to cULus & CE standards. This product comes with an 18 month warranty.

Technical Information

Amperage
800 Amp
Applications
PANELBOARD INTERIOR
Current
800 Amp
Line Rated Current
800 A
Material
Aluminum
Operating Temperature
PER UL
Range
I-Line
Size
34.38 IN,48 IN,63 IN
TC Connection
BOTTOM
Type
PANELBOARD INTERIOR
Voltage
600//250 VAC//VDC

Manufacturer Information

Brand
Square D
Sub Brand
I-LINE

General Product Info

12-Digit UPC
785901213192
GTiN
00785901213192
Product UPC
78590121319

Dimensions

Height
48 Inch
Length
63 Inch
Warranty Length
18 mth
Width
34.38 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
