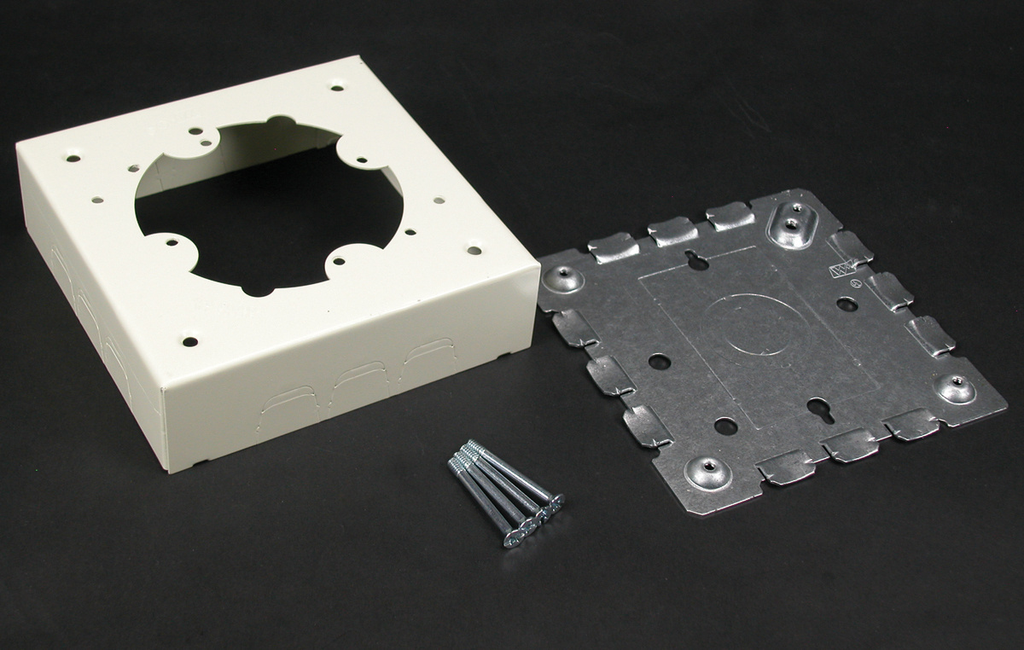

Product image for Wiremold V5735 4-3/4 x 4-3/4 x 1-3/8" Ivory Steel 1-Channel Raceway Distribution Box
Image thumbnail 0
Image thumbnail 1
Email

Wiremold V5735 4-3/4 x 4-3/4 x 1-3/8" Ivory Steel 1-Channel Raceway Distribution Box

Manufacturer: The Wiremold Co | Catalog # V5735 | Cooper Electric Part # 23548
$29.27/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual Product Brochure
Twistouts permit use of three parallel raceway runs on each side. Base has 1/2'' and 1'' concentric trade size KOs and a 1 13/16'' (46mm) x 2 7/8'' (73mm) rectangular KO to mount on a one-gang in-wall outlet box. Cover accepts devices with mounting screw centers of 2 3/4'', 3 1/2'', or 4 1/16'' (70mm, 89mm, or 104mm), and canopy fixtures no larger than 4 5/8'' (117mm) in diameter. With 5736 Blank Cover, this fitting can be used as junction box, pull box, etc. NOTE: Certified to Canadian Safety Standards for sale in Canada. When ordering these products, change the ''V'' color prefix to ''VC'' to denote the Canadian versions.

Technical Information

Applications
Commercial, Office, Residential
Component Type
Boxes
Material
Steel
Standard
CSA C22.2 No. 85,UL E23018,cULus
Type
Roll Form
Voltage
600 Volt

Manufacturer Information

Brand
Wiremold
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786776070385
Color
Ivory
GTiN
00786776070385
Jacket Color
Ivory, White
Product Series
500,700
Product UPC
78677607038

Dimensions

Depth
1-3/8 Inch
Length
4-3/4 Inch
Outside Diameter
1.375 in
Width
4.75 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
NAFTA,ROHS,UL
Country of Origin
USA
Certifications
  • NAFTA Compliant
  • UL Listed
  • RoHS Compliant
Features
  • Twistouts permit use of three parallel raceway runs on each side. Base has 1/2'' and 1'' concentric trade size KOs and a 1 13/16'' (46mm) x 2 7/8'' (73mm) rectangular KO to mount on a one-gang in-wall outlet box.
  • Cover accepts devices with mounting screw centers of 2 3/4'', 3 1/2'', or 4 1/16'' (70mm, 89mm, or 104mm), and canopy fixtures no larger than 4 5/8'' (117mm) in diameter.
  • With 5736 Blank Cover, this fitting can be used as junction box, pull box, etc. NOTE: Certified to Canadian Safety Standards for sale in Canada. When ordering these products, change the ''V'' color prefix to ''VC'' to denote the Canadian versions.
