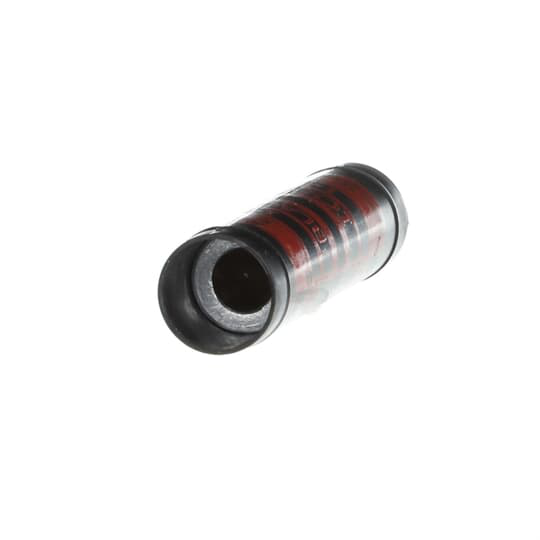

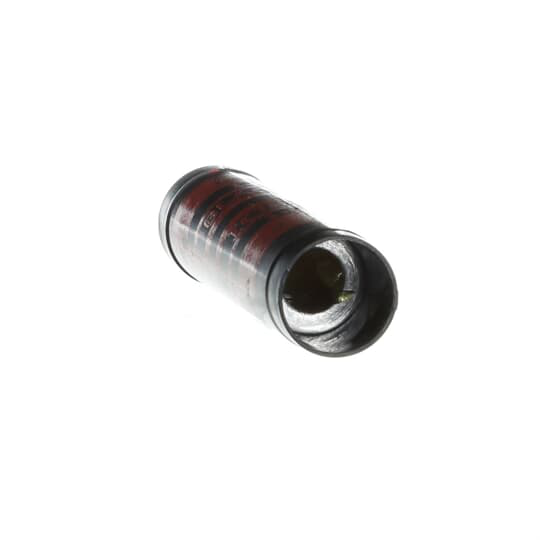

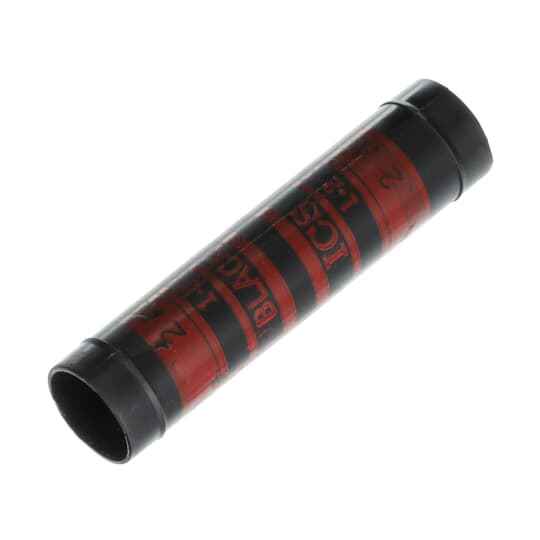

Product image for Blackburn ICS73-1 2-3/4" Aluminum Service Entrance Compression Splice. Wire Range - End A: 2 ASCR, 1-2 Str., Red; End B: 2 ASCR, 1-2 Str., Red
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Blackburn ICS73-1 2-3/4" Aluminum Service Entrance Compression Splice. Wire Range - End A: 2 ASCR, 1-2 Str., Red; End B: 2 ASCR, 1-2 Str., Red

Manufacturer: Blackburn / Thomas & Betts | Catalog # ICS73-1 | Cooper Electric Part # 23519
$3.91/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Aluminum 2-25/32 inch Service Entrance Compression Splice for Wire Range - End A: 2 ASCR, 1-2 Stranded, Red, End B: 2 ASCR, 1-2 Stranded, Red, Die: 5/8. For AL to AL and AL to CU Conductors.

Technical Information

Applications
For Standard Conductor, Solid Cores
Conductor Size
2 AWG ACSR, 2-1 AWG Stranded (End A), 2 AWG ACSR, 2-1 AWG Stranded (End B)
Conductor Type
ACSR, Stranded
Connection Type
Compression
Connector Type
Compression, Parallel
Insulated?
Yes
Material
Aluminum
Mounting Type
None
Number of Conductors
2
Size
2-25/32 inch
TC Connection
Compression
Type
Standard Version
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786102457
Color
Red
Environmental Conditions
All Seasons / Conditions
GTiN
00783786102457
Product UPC
78378610245

Dimensions

Length
2-25/32 Inch
Features
  • Use for combinations of aluminum-to-aluminum and aluminum-to-copper conductors. Can be used as a low-cost reducing sleeve.
  • Color-coded and marked for easy identification.
  • Standards compliant. Meets ANSI C119.4 requirements. Connectors are RUS listed.
  • Concave caps seal out dirt but are easily pierced when inserting conductor. Prefilled with Oxide Inhibitor.
