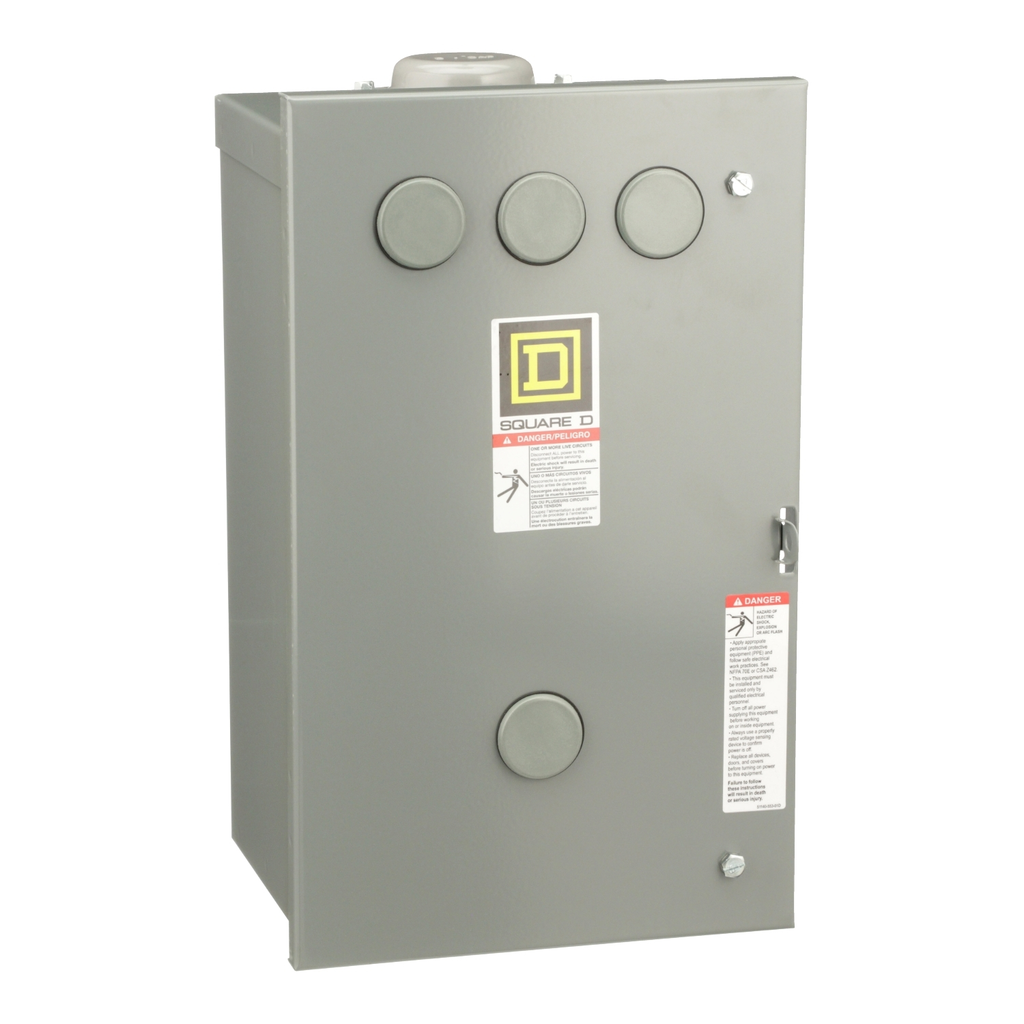

Square D 8903LH60V02 110/120 VAC 30 Amp 6-Pole NEMA 3R Electrically Held Lighting Contactor

Manufacturer: Square-D / Schneider | Catalog # 8903LH60V02 | Cooper Electric Part # 234914
$1,202.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 6 pole device has 6 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 3R rainproof painted sheet steel enclosure, but a variety of other enclosure types are available. Coil and contacts are easily replaced. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.

Technical Information

Applications
ELECTRICALLY HELD
Coil Voltage
110@50Hz/120@60Hz VAC
Contact Configuration
6 NO
Contact Rating
20-20 A TUNGSTEN-30-30 A FLUORESCENT
Current
20 Amp
Indicator
NO INDICATOR
Line Rated Current
20-20 A
Number of Poles
6 Pole
Size
219 MM,250 MM,414 MM
TC Connection
SCREW-CLAMP TERMINALS
Type
ELECTRICALLY HELD LIGHTING CONTACTOR

Manufacturer Information

Brand
Square D
Sub Brand
8903L

General Product Info

12-Digit UPC
785901022909
GTiN
00785901022909
Product UPC
78590102290

Dimensions

Depth
8.62 in
Height
16.3 in
Warranty Length
18 mth
Width
9.84 in

Certifications and Compliance

Certifications
CSA,UL Listed
Country of Origin
Mexico
Inrush Power In VA
  • 150-150 VA 60 Hz
  • 140-140 VA 50 Hz
Carbon Footprint Of The Installation Phase A5
  • 1.342683036205962
  • 1 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 14 kg CO2 eq.
  • 13.925429330865928
UC Control Circuit Voltage
  • 110 V AC 50 Hz
  • 120 V AC 60 Hz
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 75 kg CO2 eq.
  • 75.22170575353073
Nema Degree Of Protection
  • NEMA 3R painted sheet steel surface
Accessories
  • 8903L3L
  • 8903L3R
  • 9999SP28R
  • 9999SPL28G
  • 9999SC8
  • 9999SPL28R
  • 9001KA2
  • 9999SC2
  • 9999SC22
  • 9001KN244
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 502 kg CO2 eq.
  • 501.9998790002029
Line Rated Current
  • 20-20 A tungsten
  • 30-30 A fluorescent
Accessory Products
  • 8903L3L
  • 8903L3R
  • 9999SP28R
  • 9999SPL28G
  • 9999SC8
  • 9999SPL28R
  • 9001KA2
  • 9999SC2
  • 9999SC22
  • 9001KN244
Persona Type Ids
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
Carbon Footprint Of The Distribution Phase A4
  • 8.202177834611822
  • 8 kg CO2 eq.
Poles Description
  • 6P 6 NO
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Hold In Power Consumption In VA
  • 30-30 VA 60 Hz
  • 30-30 VA 50 Hz
