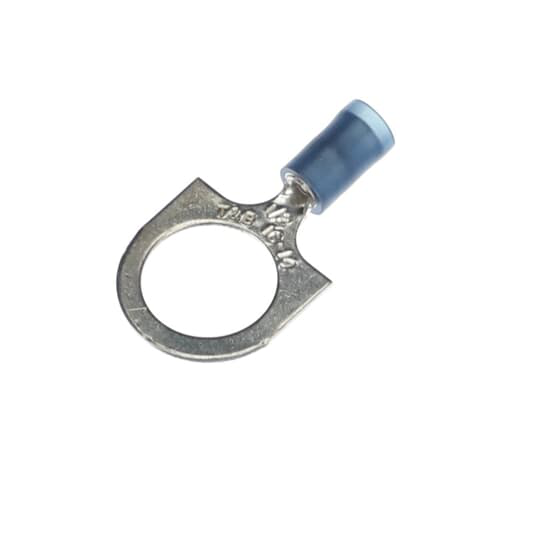

Product image for ABB RB14-12 INS NYL RING TERM 18-14
Image thumbnail 0

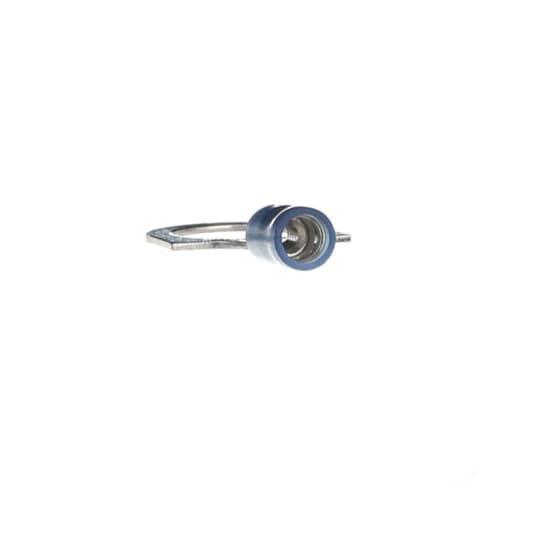

Image thumbnail 1

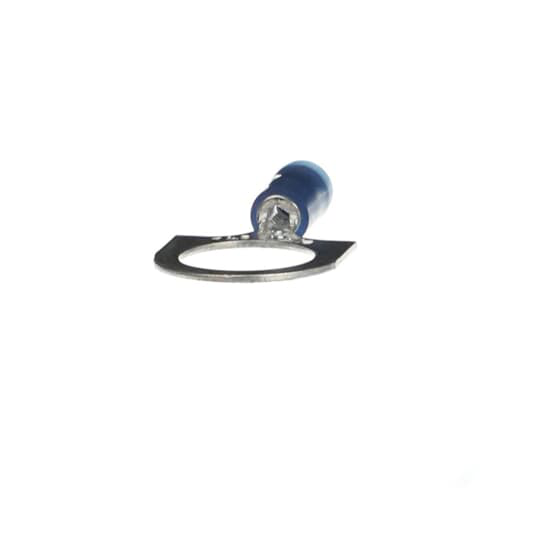

Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

ABB RB14-12 INS NYL RING TERM 18-14

Manufacturer: ABB | Thomas & Betts | Catalog # RB14-12 | Cooper Electric Part # 233731
$631.13/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Nylon Insulated Ring Terminal, Length 1.25 Inches, Width .72 Inches, Maximum Insulation .162, Bolt Hole 1/2 Inch, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Conductor Size
18-14 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
1/2 in
Temperature Rating
105 degrees C
Terminal Type
RB
Type
Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210878522
Color
Blue
Finish
Electro Tin Plated
GTiN
05414363158332
Product UPC
78621087852

Dimensions

Height
3 Inch
Thickness
.03 in
Width
1.3 in
Certifications
  • UL
  • CSA
Features
  • Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
