Thomas & Betts 10RC-10FX 12 to 10 AWG #10 Stud Yellow Electrotinned Copper Expanded Entry Vinyl Insulated Fork Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # 10RC-10FX | Cooper Electric Part # 233669
$319.88/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

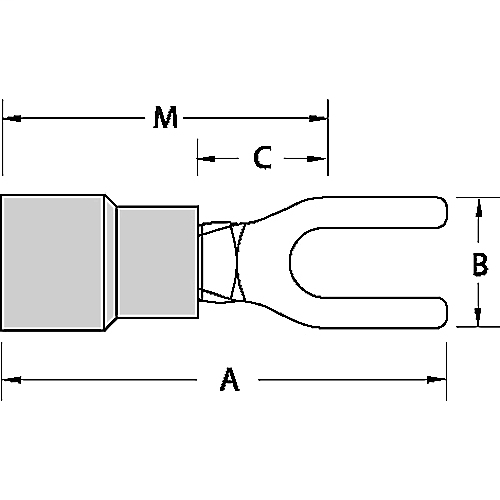

Expanded Vinyl-Insulated Fork Terminal, Length 1.11 Inches, Width .38 Inches, Maximum Insulation .250, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Expanded Insulated Vinyl
Material
Copper
Stud Size
#10
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800448
Color
Yellow
Finish
Tin Plated
GTiN
05414363935797
Product UPC
78621080044
Used With
Round Conductors

Dimensions

Height
8 Inch
Thickness
.04 in
Width
9.1 in
Certifications
  • CSA
  • UL
Features
  • Fork teminals allow easy installation since the mounting screw does not have to be completely removed. These terminals have expanded insulation support which means a wider wire entry to accommodate heavy wall insulation.
