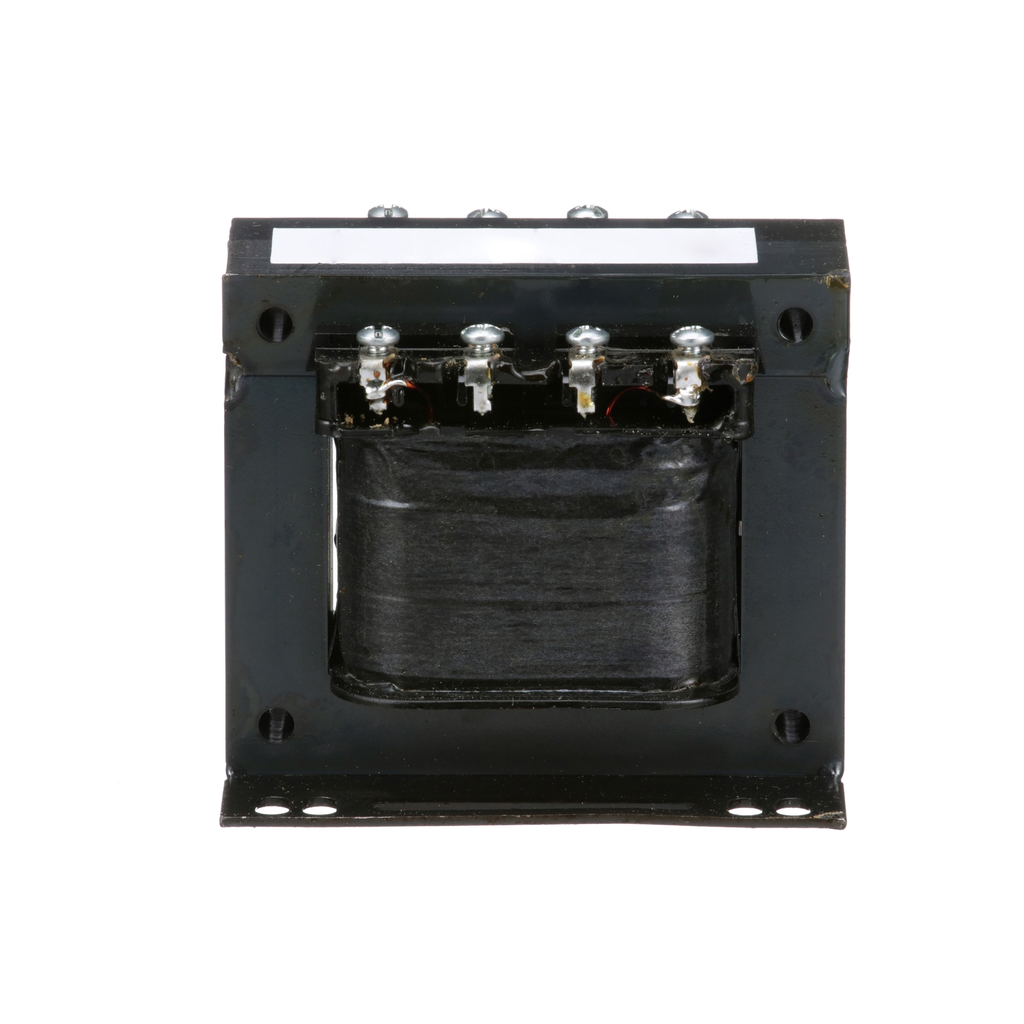

Square D 9070T150D23 150 VA 120 x 240 VAC Primary 24 VAC Secondary 1-Phase Control Transformer

Manufacturer: Square-D / Schneider | Catalog # 9070T150D23 | Cooper Electric Part # 231211
$276.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
The Type T units are designed for the global market and are the best choice when size and cost are of concern. for the global market and are the best choice when size and cost are of concern. This is our most popular and complete offering of industrial control transformers. The following features are included with the Type T transformers sich as they are rated 50/60 Hz. They have customer installable accessories such as covers, fuse blocks and fuse clips. The Type T transformers are designed with various temperature classes. This Industrial Control Transformer is 1 phase and has a rated power of 150 VA. This transformer has a primary voltages of 120 x 240 V and a secondary voltage of 24 V with a temperature rise of 55 .C. The dimensions forThis product are 3.2 in (H), 3.75 in (W), 3.59 in (D). This product is compatable with FSC1. This product complys to UL listed & CSA standards.

Technical Information

Applications
FSC1
Enclosure
NOT RATED (OPEN DEVICE)
Material
Copper: Winding
Number of Phases
1 Phase
Power Rating
150 VA;150 VA
Primary Voltage
24 V
Secondary Voltage
24 V
TC Connection
SCREW CLAMP
Temperature Rating
55 DEGREES C
Temperature Rise
55 degrees C
Type
Industrial Control Transformer
Voltage
24 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901905103
GTiN
00785901905103
Product UPC
78590190510

Dimensions

Depth
3.59 Inch
Height
3.2 Inch
Warranty Length
10 yr
Width
3.75 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA File LR37055 Guide 184-N-90,UL Listed File E61239
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9070FP1
  • 9070FSC1
  • 9070FB3A
  • 9070FB2A
  • 9070SF25A
  • 9070SF41A
  • 9070FB1A
