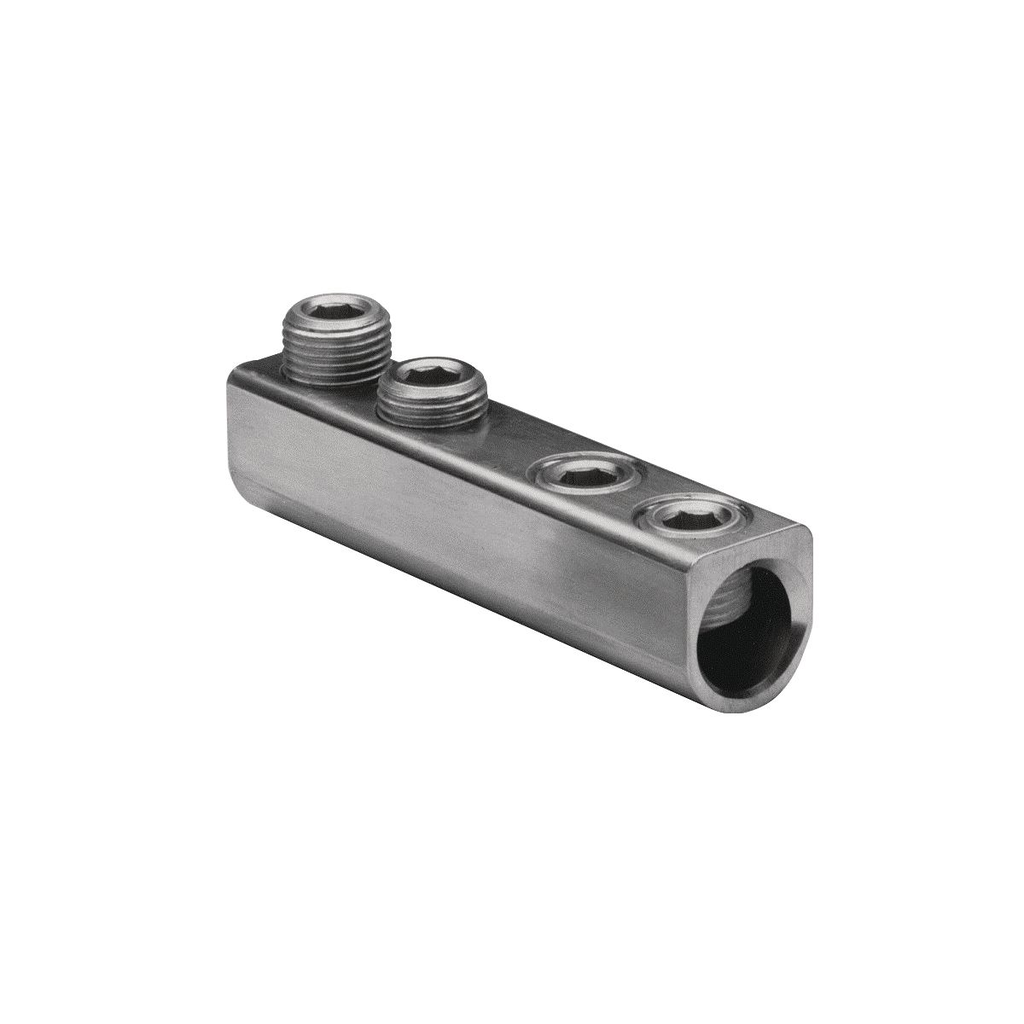

Product image for Burndy AMS750 Aluminum Mechanical Splice, 750-250 kcmil, 15/16" Screw Dia, 4 Screws, 1/2" Hex Size, Al/Cu Rated, Tin Plated
Image thumbnail 0
Image thumbnail 1
Email

Burndy AMS750 Aluminum Mechanical Splice, 750-250 kcmil, 15/16" Screw Dia, 4 Screws, 1/2" Hex Size, Al/Cu Rated, Tin Plated

Manufacturer: Burndy | Catalog # AMS750 | Cooper Electric Part # 230991
$171.82/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
Aluminum Mechanical Splice, 750-250 kcmil, 15/16" Screw Dia, 4 Screws, 1/2" Hex Size, Al/Cu Rated, Tin Plated.

Technical Information

Applications
For Use With Copper And Aluminum Conductors
Conductor Size
250 kcmil
Connection Type
In-Line
Material
Aluminum
Plated?
Yes
Plating Type
Tin
Size

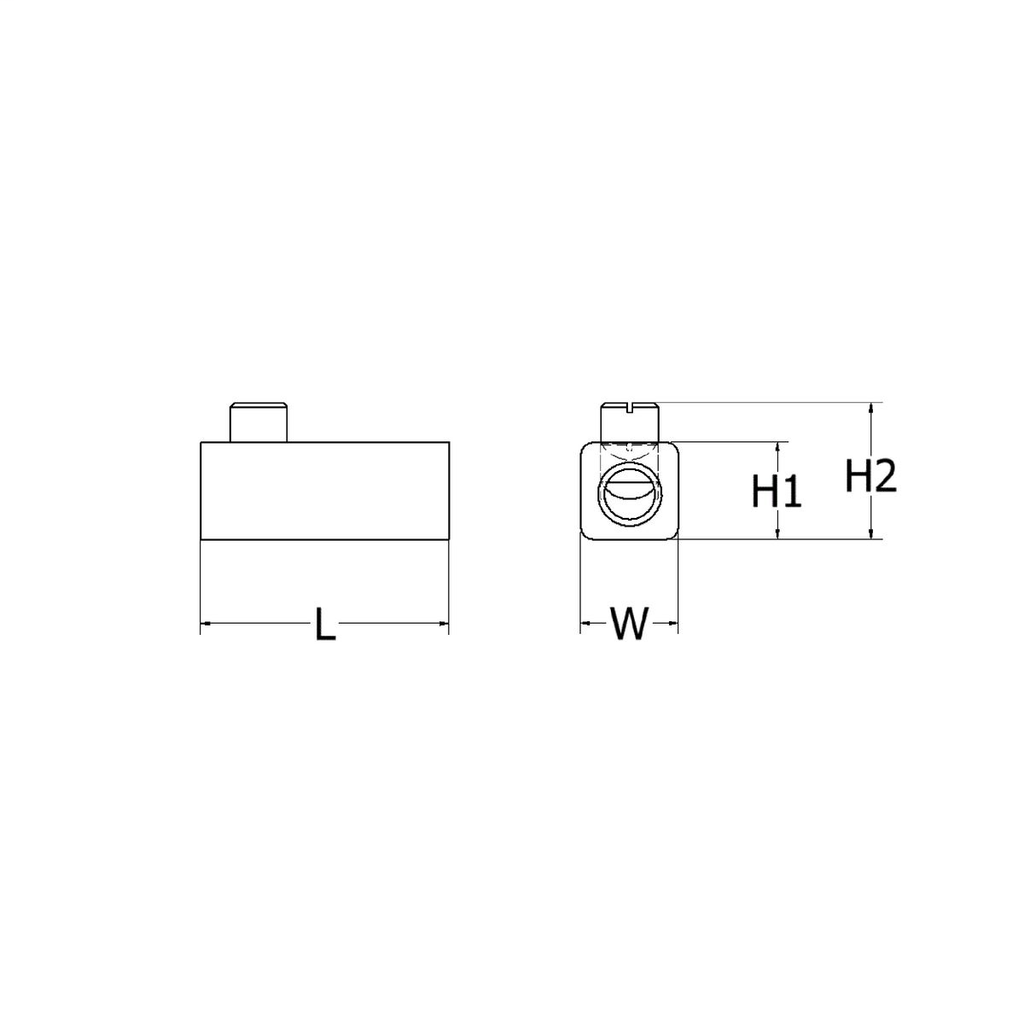

6-1/16 IN Length X 1-7/16 IN Width X 1-5/8 IN Dimension H1 X 1.98 IN Maximum Dimension H2
Temperature Rating
194degrees F
Type
AMS, Dual Rated

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810241066
Finish
Tin Plated
GTiN
00781810241066
Product UPC
78181024106

Dimensions

Depth
0.56 Inch
Height
1.98 Inch
Length
4.88 Inch
Overall Length
154 mm
Width
1.44 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • Standard mounting hole diameter is .562 for 1/2 bolts
  • The end wall within the cable socket of this design is solid and pressure tight
  • Connectors are pre-filled and plugged with electrical joint compound
  • Marked with catalog number, conductor size and die reference
  • Meets performance requirements of ANSI C119.4
