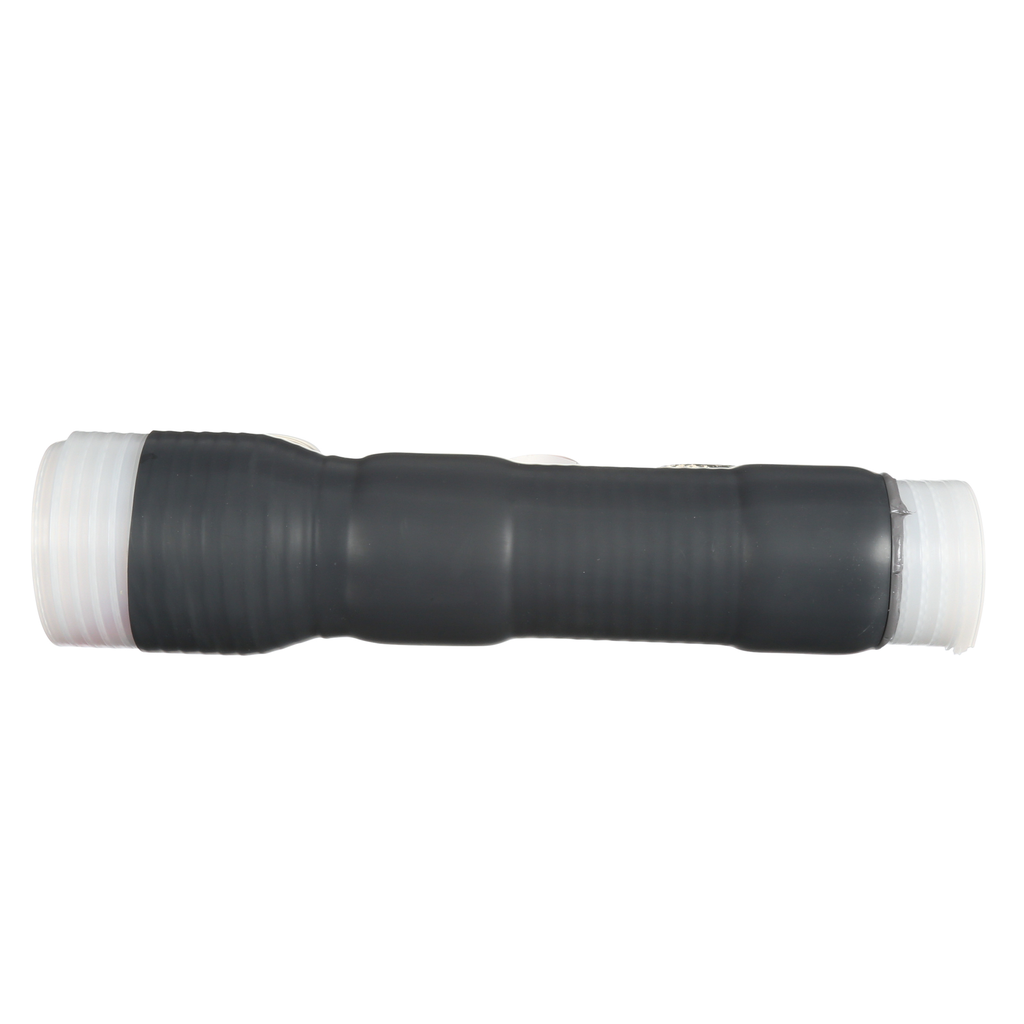

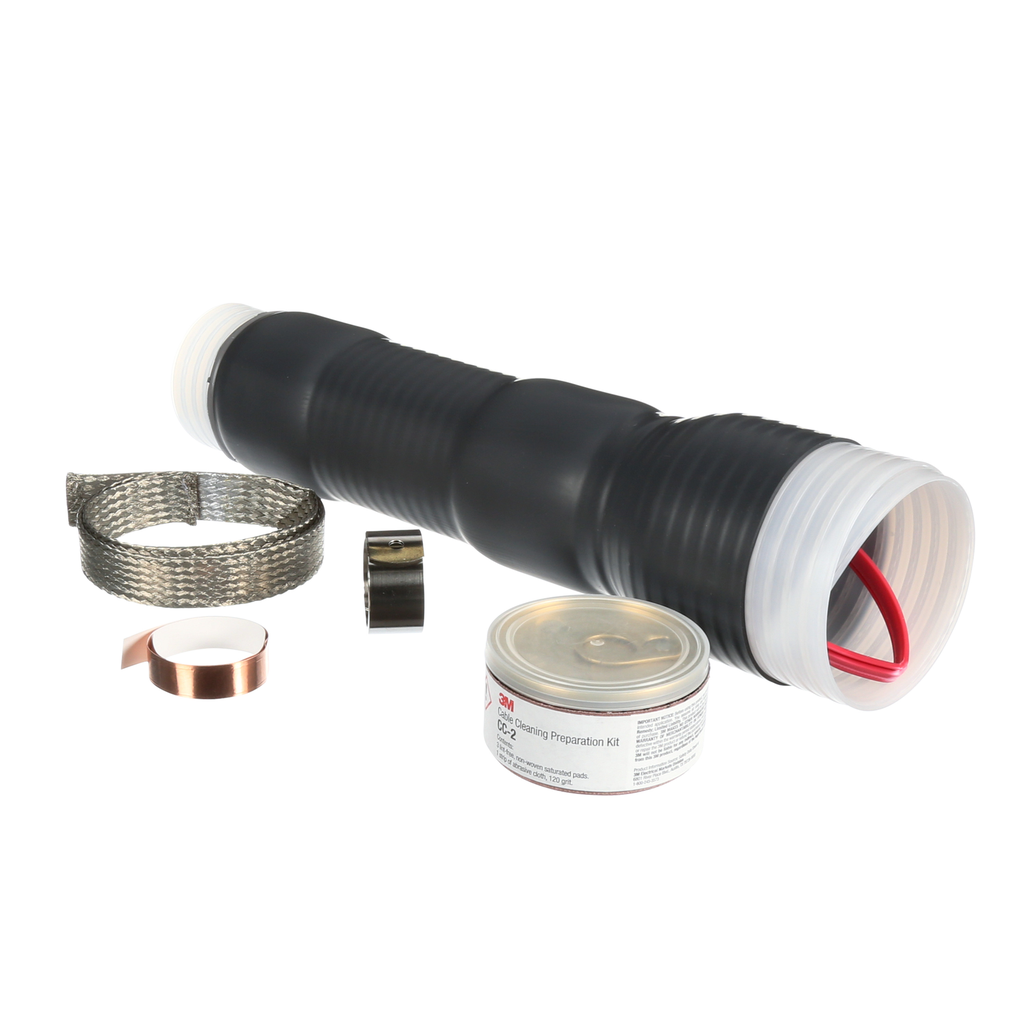

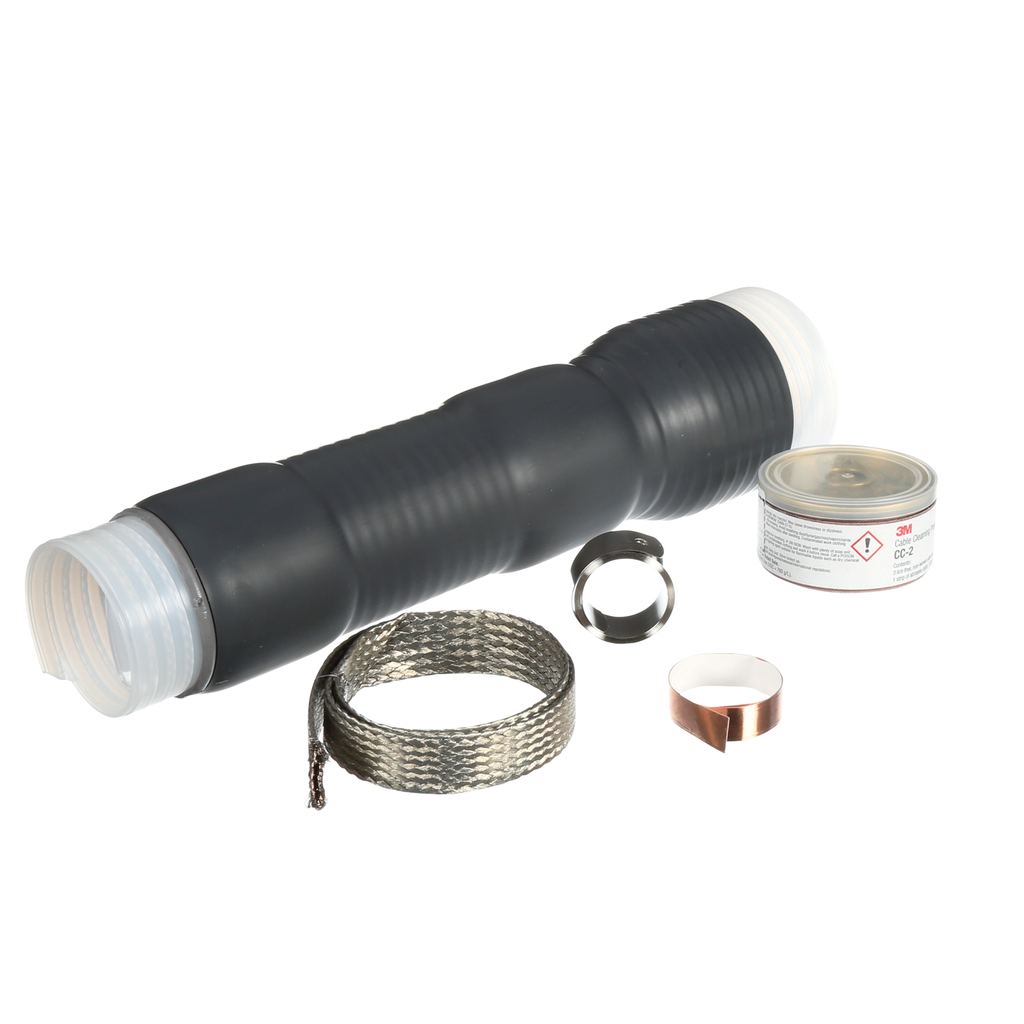

Product image for 3M 7625-T-110 7625-T-110, Indoor Termination Kit
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

3M 7625-T-110 7625-T-110, Indoor Termination Kit

Manufacturer: 3M | Catalog # 7000006103 | Cooper Electric Part # 230955
$1,647.43/ea
kt
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
22 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Safety Data Sheet Product Brochure
3M™ Cold Shrink QT-III Termination Kits offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Termination Kit 7625-T-110 has a conductor size range for 5 kV: 700-1500 kcmil, 8 kV: 600-1250 kcmil and 15 kV: 500-1000 kcmil.

Technical Information

Applications
For Indoor Non-Skirted
Cable Type
Tape Shield; UniShield(R); Wire Shield
Conductor Size
500-1500 kcmil
Indoor Outdoor
Indoor Non-skirted
Insulation Diameter Range
26.67 mm
Material
Rubber
Number of Conductors
1
Shielding Type
Tape Shield,UniShield®,Wire Shield
Type
QT-III
Voltage
15 kV

Packaging

Units Per Case
1

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007417620
GTiN
00054007417620
Product Series
7620-T
Product UPC
05400741762
Used With
Connection of Paper with Plastic Insulated Cables

Certifications and Compliance

Country of Origin
USA
Additional Information
  • Installed Length 12 Inch
  • Number of Conductors 1
  • Applicable Standard IEEE
Features
  • 3M™ Cold Shrink Qt-Iii Silicone Rubber Termination Kit 7620-T and 7690-T Series Contain One-Piece, Non-Skirted, Silicone Rubber Terminations, Qualified as IEE Standard 48 Class 1 for Indoor and Weather-Protected Applications
  • The Termination Assemblies Consist of a Tubular Insulator, High Dielectric Constant (Hi-K) Stress Control Tube (7620-T Designed and Assembled with Stress Controlling Compound Only), Conformable Hi-K Stress Controlling Compound and Built-In Environmental Top Seal
  • The Insulator is Made of a Dark Gray Silicone Rubber with Advanced Tracking Resistant and Hydrophobic Properties
  • The Complete Assembly is Prestretched and Loaded onto a Removable Core Which Can be Recycled
  • The Kits are Designed for Terminating Solid Dielectric Shielded Power Cable Rated 5-35 Kilovolt, with Tape Shield, Wire Shield and Unishield® Constructions
