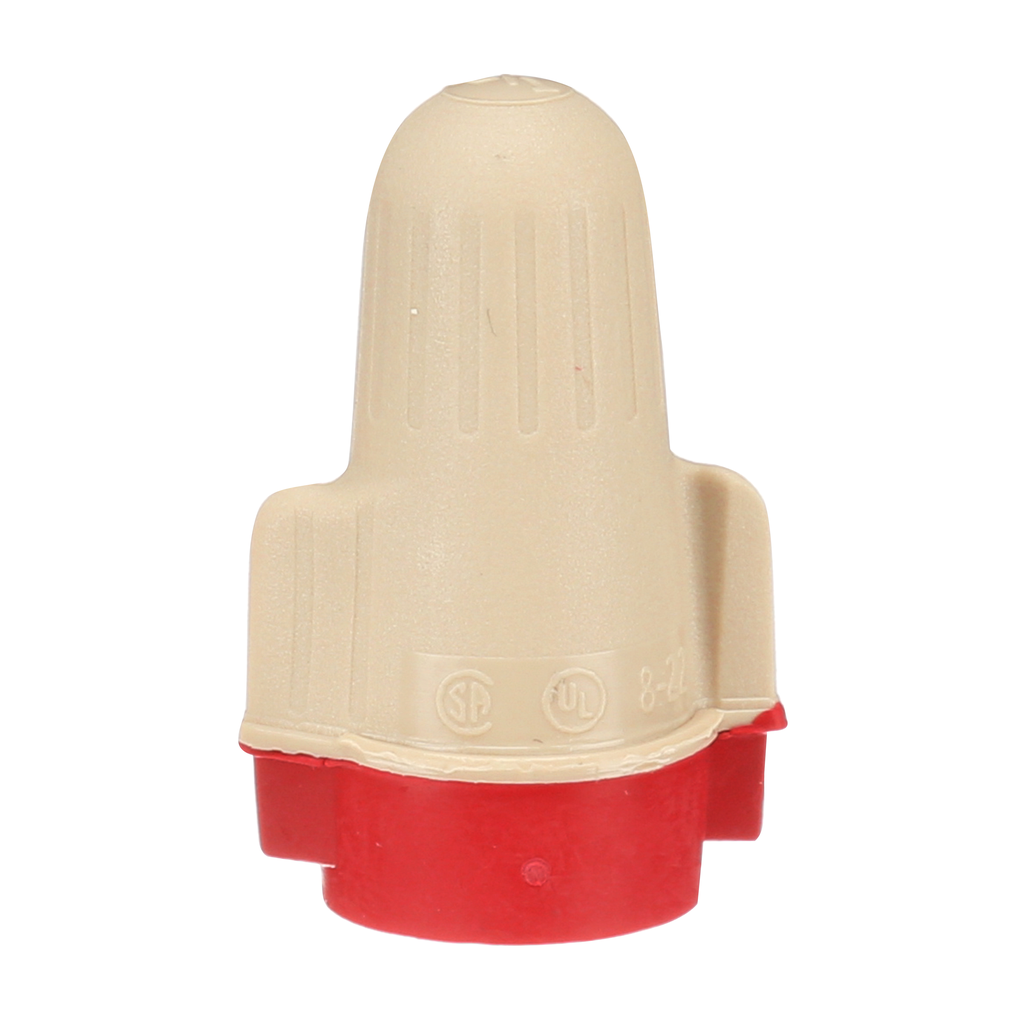

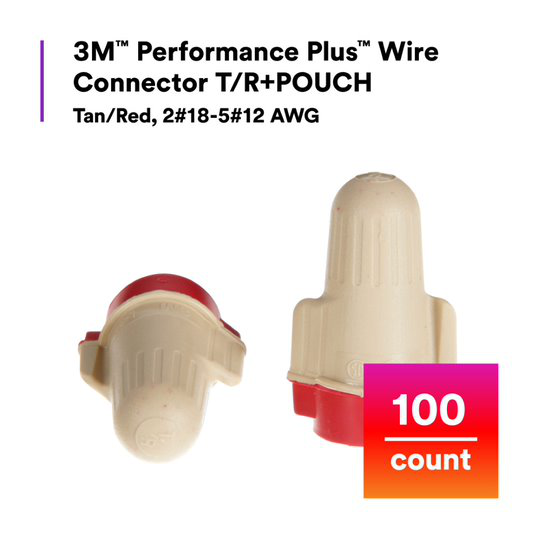

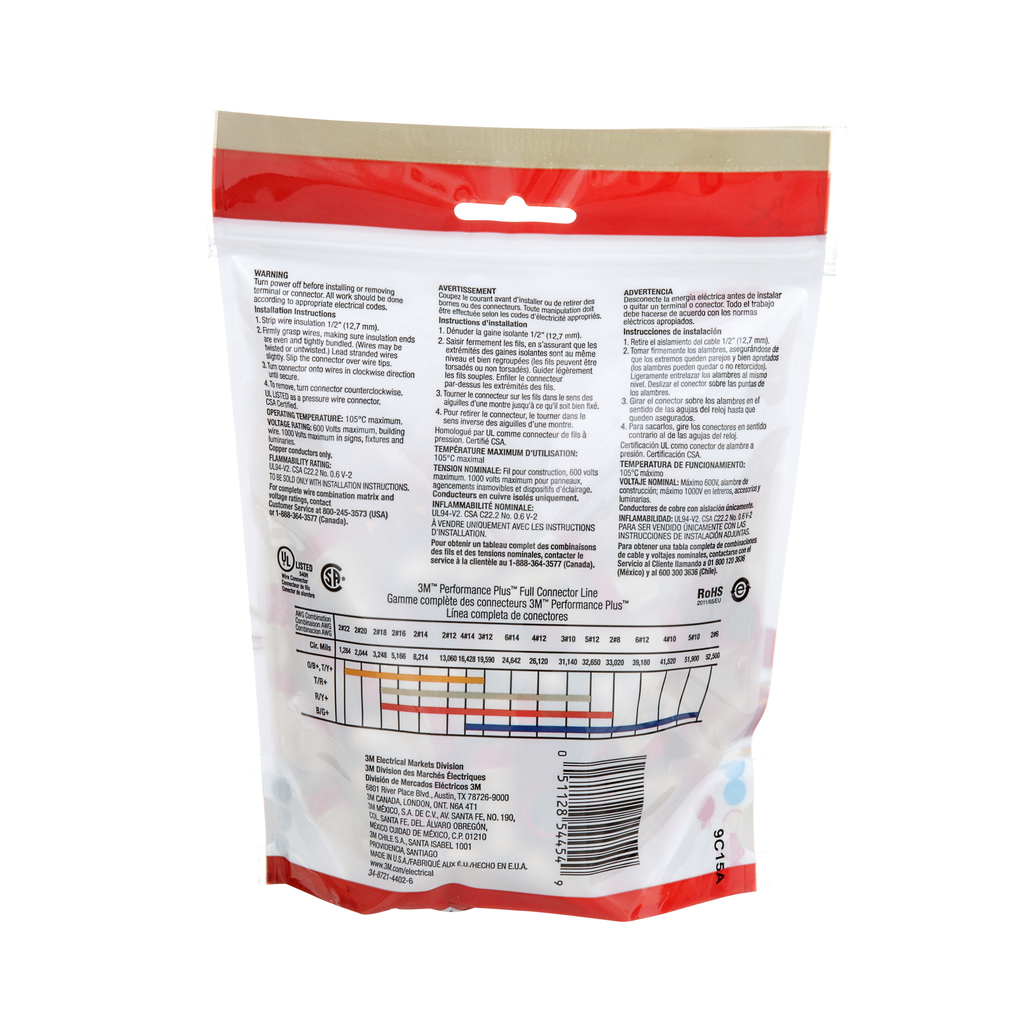

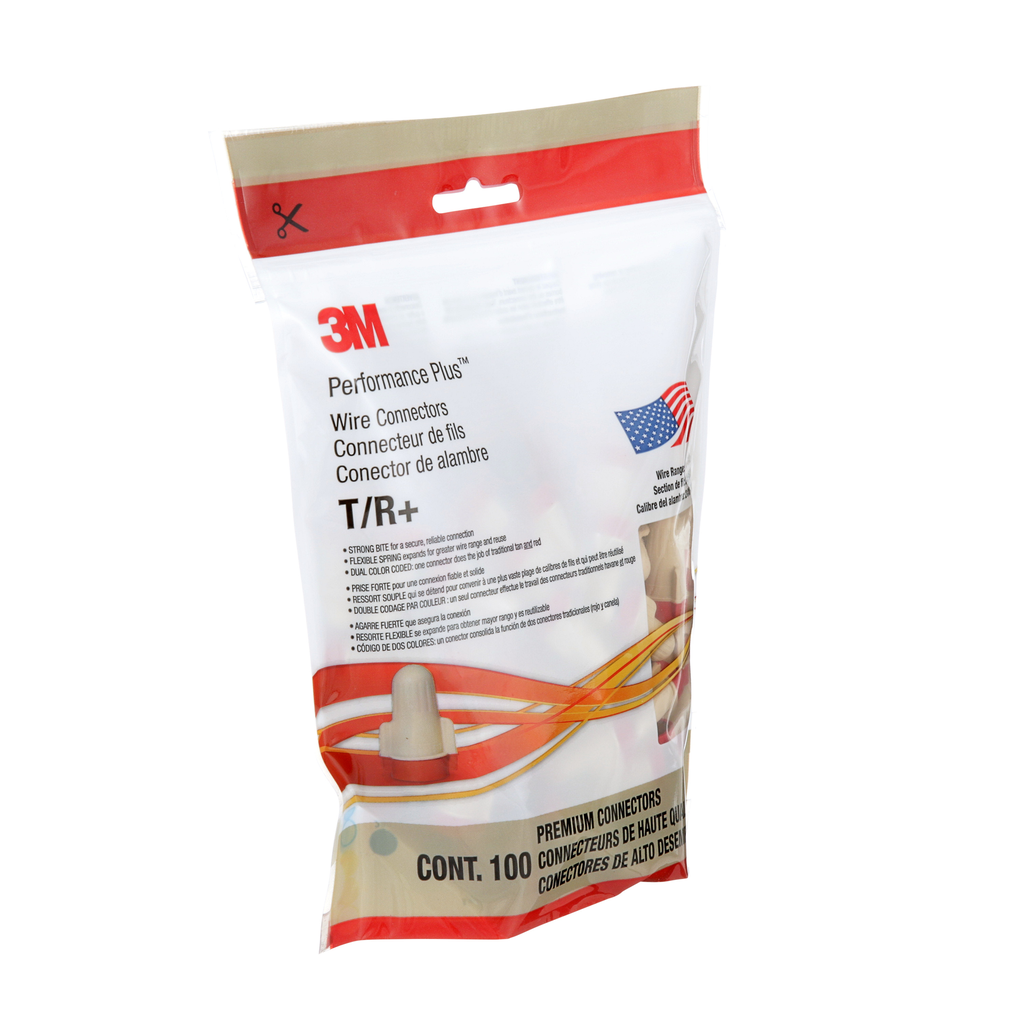

3M T/R+Box 100/Box Super Tan/Red Connector

Manufacturer: 3M | Catalog # 7100127165 | Cooper Electric Part # 23045
$0.42/ea
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
7,900 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Product Brochure
3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.

Technical Information

Conductor Size
22-8 AWG
Connection Type
Twist-On
Contact Material
Spring Steel
Insulation Material
Polypropylene, Thermoplastic Elastomer
Material
Plastic
Max Operating Temperature
105.0 degrees C
Temperature Rating
105 degrees C
Type
Flame Retardant
Voltage
600 Volt

Manufacturer Information

Brand
3M
Sub Brand
Performance Plus™

General Product Info

12-Digit UPC
051128544549
Color
Tan/Red
GTiN
10051128544546
Product Type
Connector
Product UPC
05112854454

Dimensions

Diameter
0.76 Inch
Length
1.17 Inch

Certifications and Compliance

Country of Origin
USA
Features
  • Strong bite for a secure, reliable connection
  • Flexible spring expands for greater wire range and reuse
  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications
  • UL Listed
