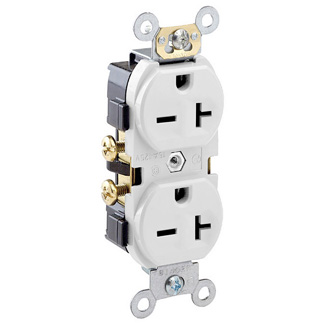

Product image for Leviton 5822-W 20 Amp 250 Volt NEMA 6-20R 2-Pole 3 Wire Narrow Body Straight Blade Commercial Grade White Duplex Receptacle
Email

Leviton 5822-W 20 Amp 250 Volt NEMA 6-20R 2-Pole 3 Wire Narrow Body Straight Blade Commercial Grade White Duplex Receptacle

Manufacturer: Leviton Mfg Co | Catalog # 5822-W | Cooper Electric Part # 23036
$31.73/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
Duplex Receptacle Outlet, Commercial Specification Grade, Indented Face, 20 Amp, 250 Volt, Side Wire, NEMA 6-20R, 2-Pole, 3-Wire, Self-Grounding - White

Technical Information

Amperage
20 Amp
Applications
Commercial Grade
Body Material
Nylon
Conductor Size
14-10 AWG
Connection Type
Side Wire
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Industrial
Grounding
Self-Grounding
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Wallbox, Flush
NEMA
WD-2,WD-6
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.56 W x 19 D IN
Standard
ANSI C-73
TC Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Termination Type
Side Wire
Type
Outlet
Voltage
250 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Commercial Receptacles

General Product Info

12-Digit UPC
078477790434
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTiN
00078477790434
Product UPC
07847779043

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
USA
NEMA
  • 6-20R
