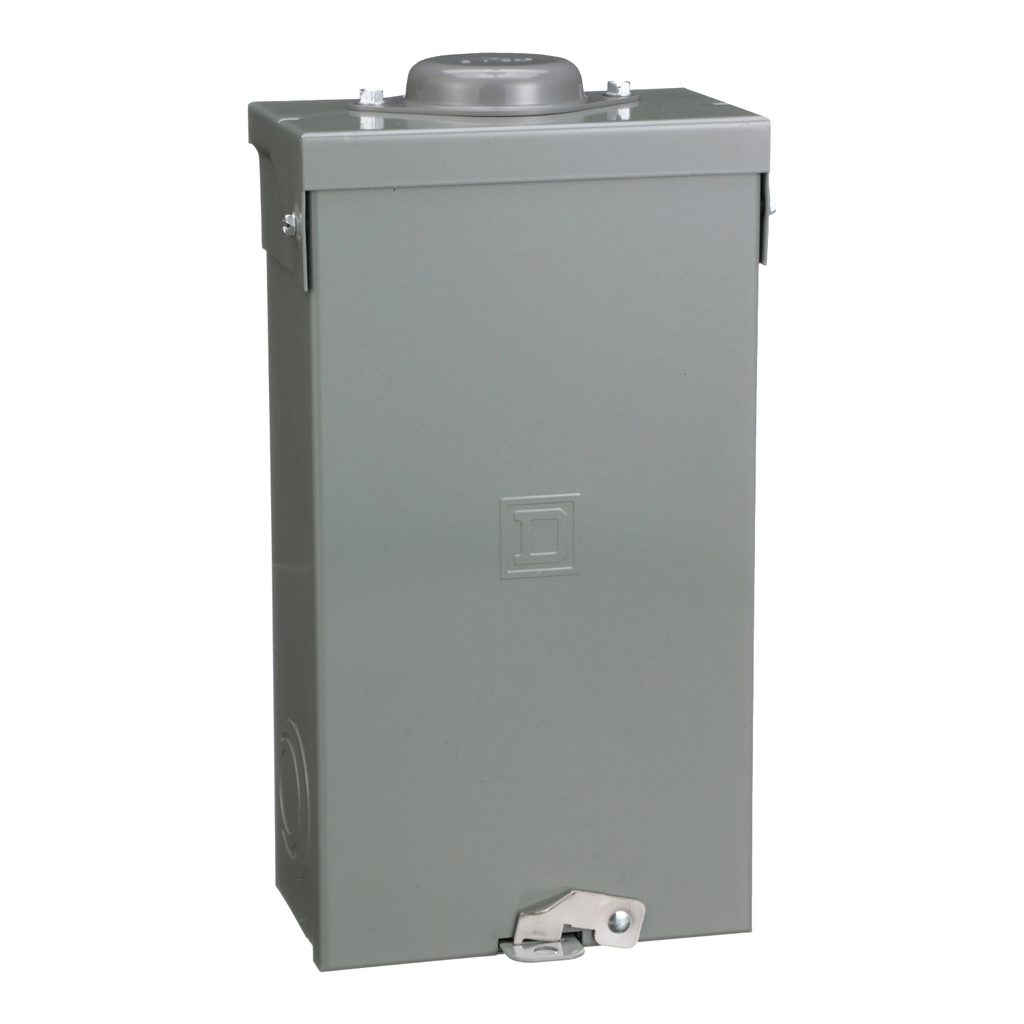

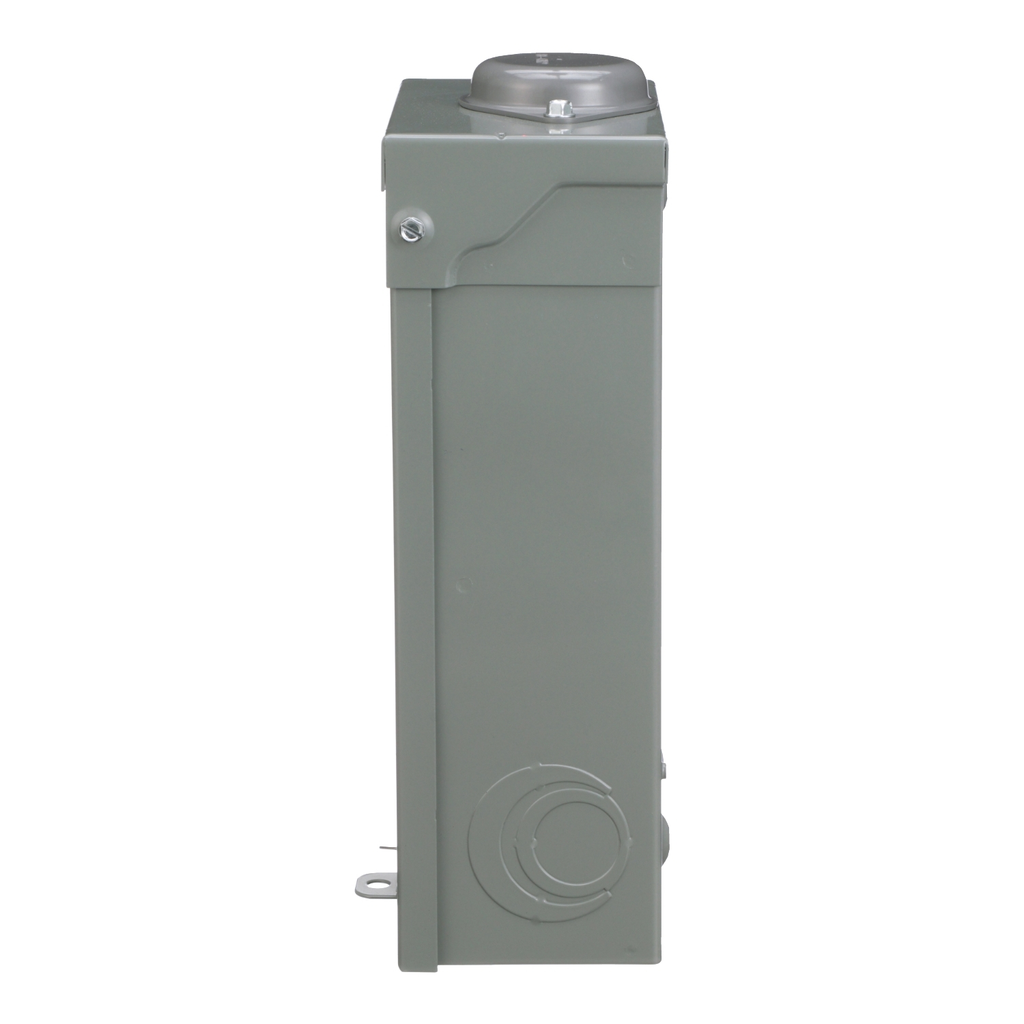

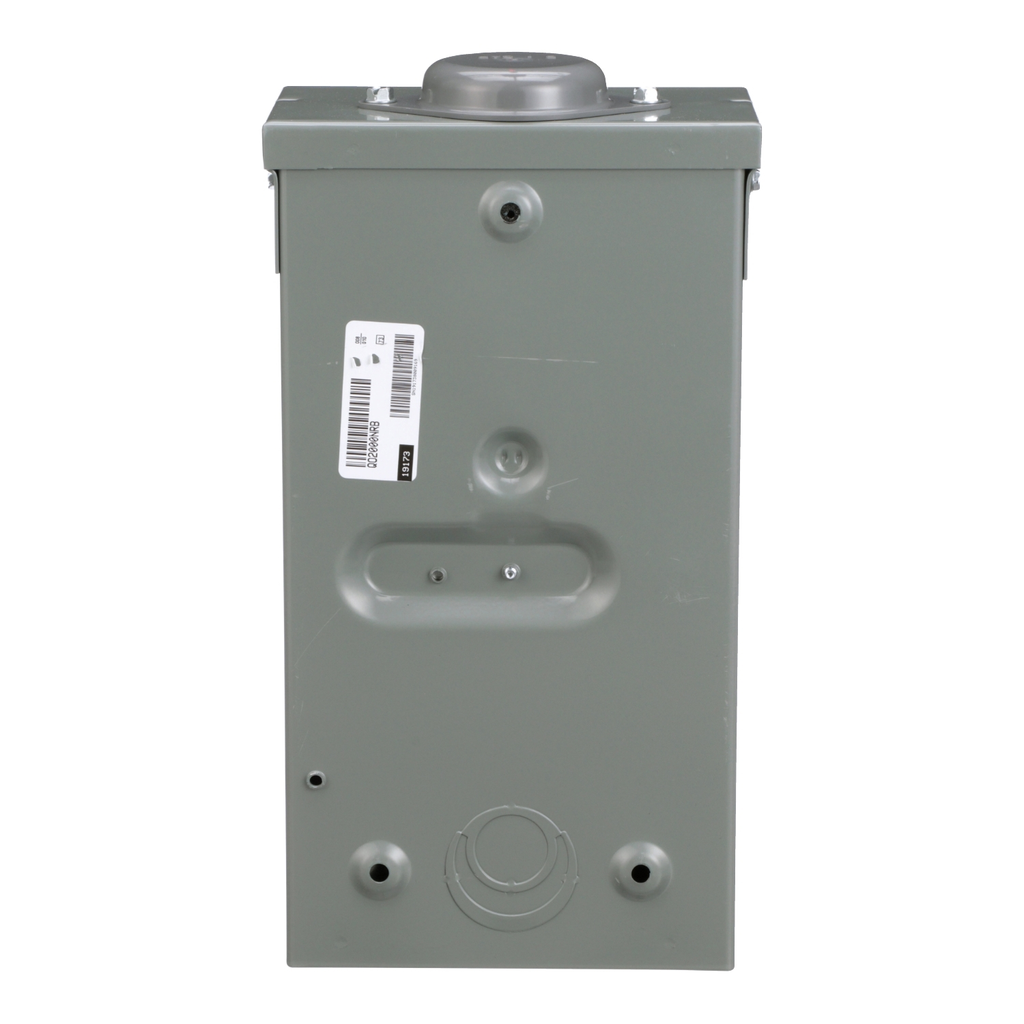

Square D QO2000NRB Molded Case Switch Non-Fusible 100A 240V 1Ph NEMA-3R

Manufacturer: Square-D / Schneider | Catalog # QO2000NRB | Cooper Electric Part # 229788
$338.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure
QO and QOB miniature switches are intended for use as disconnecting devices only. They provide no overcurrent protection. This 2 pole QO molded case switch is rated at 100A at 240VAC. This product has a breaking capacity of 10kA with plug in mounting. It has a NEMA 3R rating. Shunt trip and bell alarm electrical accessories are not available on this miniature switch. A complete range of handle accessories are available for this switch. QO and QOB miniature switches in an enclosure are UL listed under UL file E59921 and are CSA certified under file 025490_S_000 class 465204. QO and QOB miniature switches in an enclosure are UL listed under UL file E59921 and are CSA certified under file 025490_S_000 class 465204.

Technical Information

Amperage
100 Amp
Conductor Size
4-2/0 AWG
Current
100 Amp
Enclosure
NEMA 3R ENCLOSURE
Interrupt Rating
108 kAIC
Line Rated Current
100 A
Mounting Type
Plug-in
Net Weight
4.010 kg
Number of Poles
2 Pole
Short Circuit Current
10 kA
Size
2.91 in
TC Connection
Box lugs
Type
Switch
Voltage
240 Volt
Wire Size
AWG 4...AWG 2/0 copper or aluminium NULL

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901539537
GTiN
00785901539537
Product UPC
78590153953
Weight
4.010 kg

Dimensions

Depth
74 mm
Height
89 mm
Warranty Length
18 mth
Width
38 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • QO1HT
  • QOTHT
  • QO3HT
  • HLO1
  • QOHPL
  • QO1HPL
  • QO1PA
  • QO2PAF
  • QO2125SL
  • QO2DTI
  • QO2DTIM
  • QON2L70
  • QOMB1
  • SN12125
