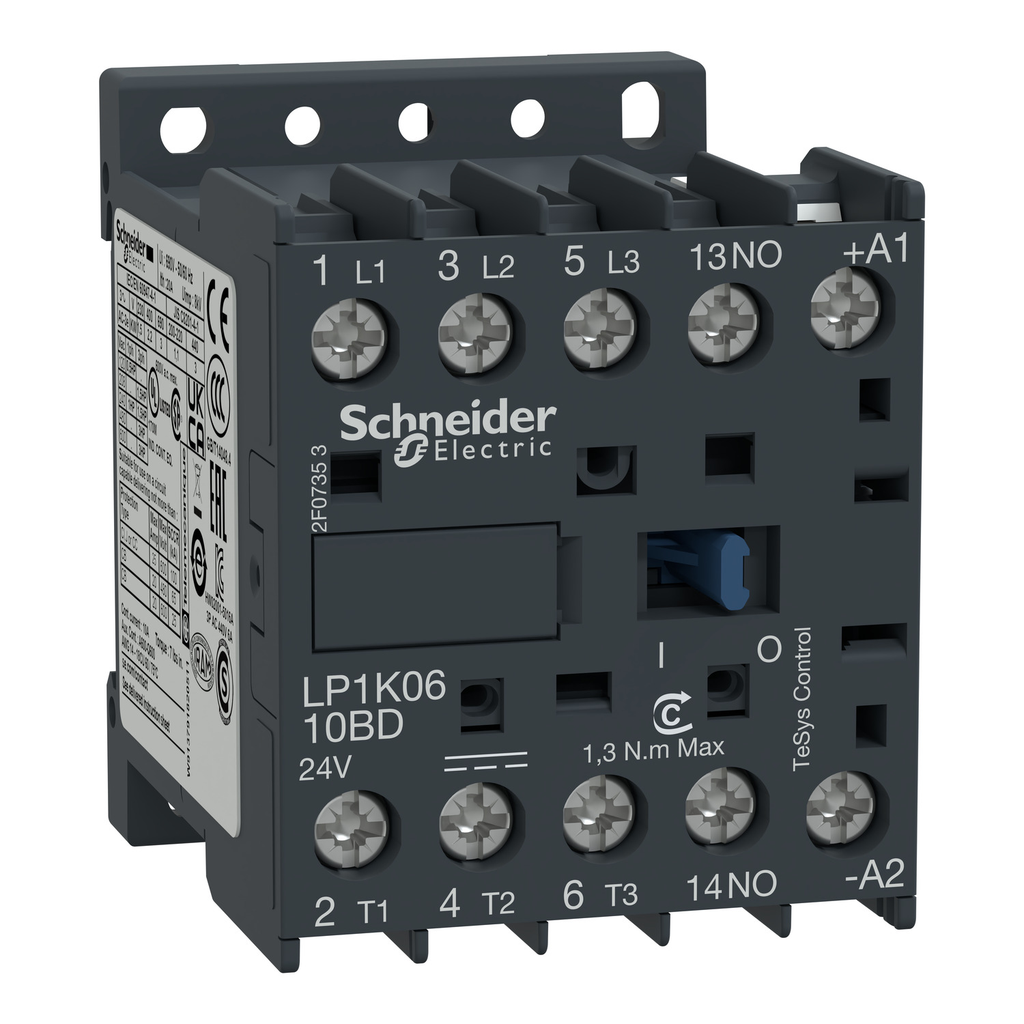

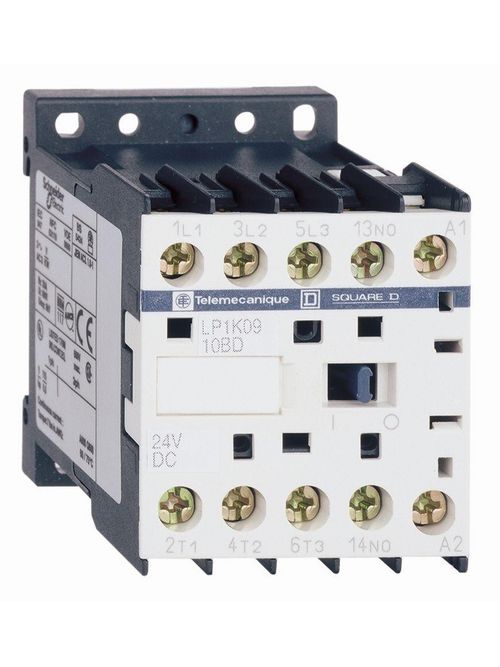

Product image for Square D LP1K0610BD 600 VAC 6 Amp 3-Pole 1NO Screw Clamp Terminal Non-Reversing IEC Contactor
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Square D LP1K0610BD 600 VAC 6 Amp 3-Pole 1NO Screw Clamp Terminal Non-Reversing IEC Contactor

Manufacturer: Square-D / Schneider | Catalog # LP1K0610BD | Cooper Electric Part # 228713
$71.54 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
LP1K0610BD is a compact 3-pole TeSys K contactor from Schneider Electric for motor applications. Rated 9A AC-3 4kW@400V, it includes a 24V DC coil and 1NO auxiliary contact allowing easy integration to all control systems. LP1K0610BD is a 3-pole TeSys K contactor from Schneider Electric for simple motor applications rated up to 2.2kW@400V. Very compact, DIN-rail compatible, with connections by screw clamp terminals, it can be easily integrated into all control systems thanks to its 24V DC coil and 1NO built-in auxiliary contact. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 45mm wide, for DIN-rail and panel mounting. Ready for connection to all control systems thanks to a 24V DC control voltage and 1NO built-in auxiliary contact. Optimized for simple power applications. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K).

Technical Information

Applications
MOTOR CONTROL
Coil Voltage
POWER CIRCUIT 690 V AC 50/60 HZ-SIGNALLING CIRCUIT <= 690 V AC 50/60 HZ
Contact Configuration
1 NO,3 NO
Contact Rating
20 A 50 AC POWER CIRCUIT-10 A 50 AC SIGNALLING CIRCUIT
Impedance
3 MOhm - Ith 20 A 50 Hz For Power Circuit
Net Weight
0.225 kg
Operating Cycles
3600 cyc/h
Range
TeSys
Size
57 MM
Standard
CSA C22.2 No 60947-4-1,CSA C22.2 No 60947-5-1,EN/IEC 60947-4-1,EN/IEC 60947-5-1,GB/T 14048.4,UL 60947-4-1,UL 60947-5-1
Storage Temperature
-50-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 1 1.5-4 MMASOLID- SCREW CLAMP TERMINALS 1 0.75-4 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.34-2.5 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1.5-4 MMASOLID- SCREW CLAMP TERMINALS 2 0.75-4 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.34-1.5 MMAFLEXIBLE WITH CABLE END
Type
CONTACTOR
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS K

General Product Info

12-Digit UPC
338911036321
GTiN
03389110363227
Product UPC
78590183243
Weight
0.225 kg

Dimensions

Depth
2.24 in
Height
2.28 in
Warranty Length
18 mth
Width
1.77 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CB Scheme,CCC,CE,CSA,EAC,UKCA,UL
Country of Origin
Indonesia
Insulation Resistance
  • > 10 MOhm for signalling circuit
Connections Terminals
  • screw clamp terminals 1 1.5-4 mm²solid
  • screw clamp terminals 1 0.75-4 mm²flexible without cable end
  • screw clamp terminals 1 0.75-4 mm²fle
IE Rated Operational Current
  • 6 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
  • 6 A (at <60 °C) at <= 440 V AC AC-3 fo
ITH Conventional Free Air Thermal Current
  • 20 A (at 60 °C) for power circuit
  • 10 A (at 50 °C) for signalling circuit
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=LP1K0610BD_CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003365_3D-CAD&p_File_name=MCADPP0003365_3D-simplified.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCAD
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0 kg CO2 eq.
  • 0.013472865458001313
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.37238162354829996
  • 0.4 kg CO2 eq.
Standards
  • EN/IEC 60947-4-1
  • EN/IEC 60947-5-1
  • UL 60947-4-1
  • UL 60947-5-1
  • CSA C22.2 No 60947-4-1
  • CSA C22.2 No 60947-5-1
  • GB/T 14048.4
Operating Time
  • 30...40 ms coil energisation and NO closing
  • 10 ms coil de-energisation and NO opening
Control Circuit Type
  • DC standard
Minimum Switching Voltage
  • 17 V for signalling circuit
UC Control Circuit Voltage
  • 24 V DC
ICW Rated Short Time Withstand Current
  • 90 A 50 °C - 1 s for power circuit
  • 85 A 50 °C - 5 s for power circuit
  • 85 A 50 °
Related Products
  • LA1KN22
  • LA1KN11
  • LA1KN40
  • LA1KN31
  • LA1KN20
  • LA1KN04
  • LA1KN02
  • LA1KN13
  • LA4KE1B
  • LA4KC1B
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 1 kg CO2 eq.
  • 1.2191683759210354
UI Rated Insulation Voltage
  • power circuit 600 V UL 508
  • power circuit 690 V IEC 60947-4-1
  • signalling circuit 690 V IEC 60947-4-1
  • signalling circuit 690 V IEC 609
Average Impedance
  • 3 mOhm - Ith 20 A 50 Hz for power circuit
Electrical Durability
  • 1.3 Mcycles 6 A AC-3 <= 440 V
  • 1.3 Mcycles 6 A AC-3e <= 440 V
  • 0.05 Mcycl
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • System Integrator
Inrush Power In W
  • 3-3 W 20 °C)
Motor Power KW
  • 1.5 kW 220...230 V AC 50/60 Hz AC-3
  • 2.2 kW 380...415 V AC 50/60 Hz AC-3
  • 2.
Add Ons
  • LA1KN22
  • LA1KN11
  • LA1KN40
  • LA1KN31
  • LA1KN20
  • LA1KN04
  • LA1KN02
  • LA1KN13
Flame Retardance
  • V1 conforming to UL 94
  • requirement 2 conforming to NF F 16-101
  • requirement 2 conforming to NF F 16-102
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 109 kg CO2 eq.
  • 109.09130710440348
Persona Type Ids
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SI
Auxiliaries
  • LA4KE1B
  • LA4KC1B
Safety Reliability Level
  • B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
  • B10d = 1369863 cycles contactor with nominal load EN/ISO 13
Carbon Footprint Of The Distribution Phase A4
  • 0.08748530601806714
  • 0.1 kg CO2 eq.
Tightening Torque
  • 0.8-1.3 N.m screw clamp terminals Philips No 2
  • 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm
  • 0.8-1.3 N.m screw cla
Minimum Switching Current
  • 5 mA for signalling circuit
Operating Altitude
  • 6561.68 ft (2000 m) without derating
Control Circuit Voltage Limits
  • operational: 0.8...1.15 Uc (at <50 °C)
  • drop-out: >= 0.10 Uc (at <50 °C)
Hold In Power Consumption In W
  • 3-3 W 20 °C
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
IRMS Rated Making Capacity
  • 110 A AC for power circuit conforming to IEC 60947
  • 110 A AC for signalling circuit conforming to IEC
Associated Fuse Rating
  • 25 A gG at <= 440 V for power circuit
  • 25 A aM for power circuit
  • 10 A gG for signalling c
UE Rated Operational Voltage
  • power circuit <= 690 V AC <= 400 Hz
  • signalling circuit <= 690 V AC <= 400 Hz
  • signalling circuit <= 690 V
Rated Breaking Capacity
  • 110 A at 220...230 V conforming to IEC 60947
  • 110 A at 380...400 V conforming to IEC 60947
  • 110 A at 380...400 V conformi
