Specified Technologies Inc. (STI) SSB26 2 x 6 x 9 Inch Firestop Pillow

Manufacturer: Specified Technologies Inc | Catalog # SSB26 | Cooper Electric Part # 226919
$31.81/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Thursday 8:00am ET
40 available

For Delivery

Order by Wednesday 5:00pm ET for delivery Thursday
Not in local stock *
Check another branch
Product Spec Sheet

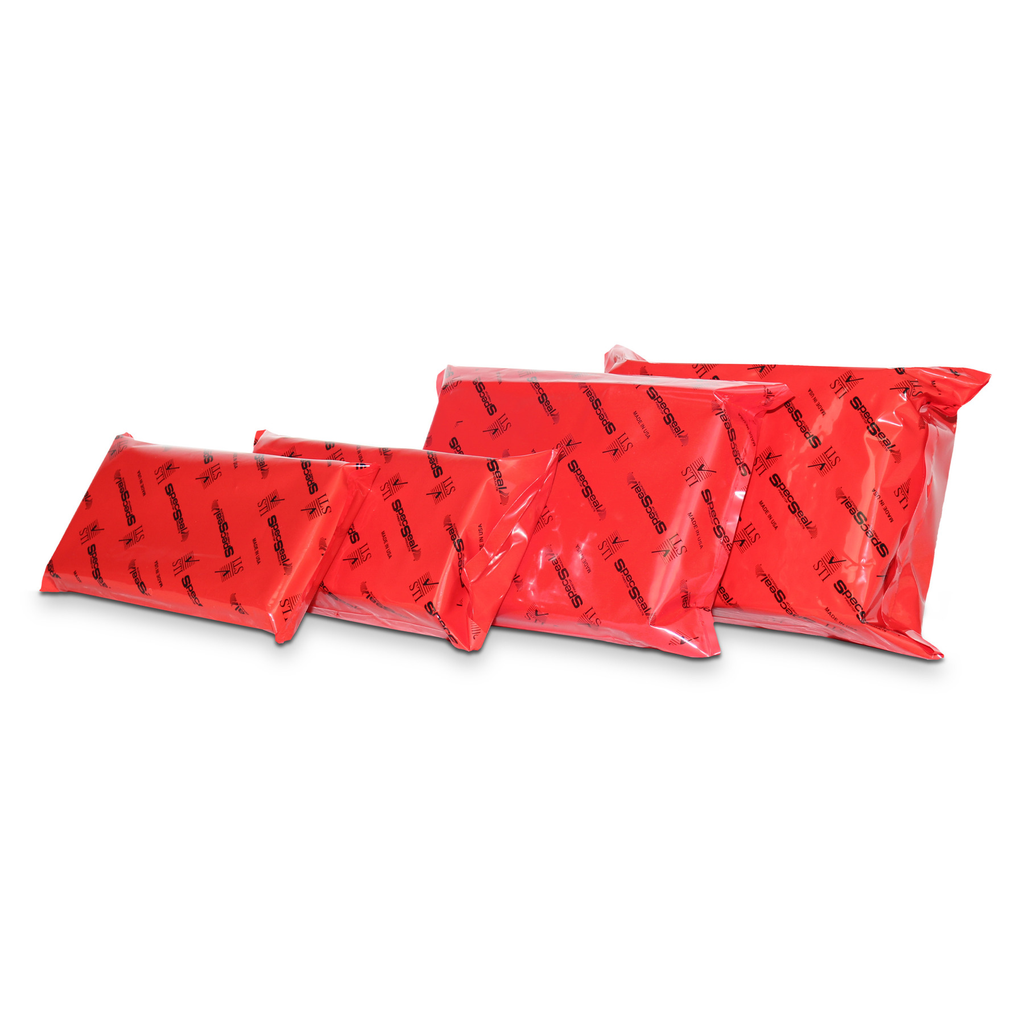

SpecSeal SSB Firestop Pillows easily compress and conform around any penetrant. Equally suited for new or existing conditions, SpecSeal Pillows make short work of even the most complex through-penetration firestop conditions.

Technical Information

Material
Intumescent
Type
Through-penetration Firestop Products

Manufacturer Information

Brand
SpecSeal

General Product Info

12-Digit UPC
730573062609
Color
Red
Product UPC
73057306260
Weight
0.39 lb

Dimensions

Height
6 Inch
Length
9 Inch
Width
2 in

Certifications and Compliance

Country of Origin
USA
Properties
  • Finished Product
  • Intumescent
  • Light Weight
  • Low VOC
  • No Expiration
  • Re-Enterable
  • Smoke Barrier
  • STC Rating
Features
  • The firestopping system shall utilize an intumescent pillow heat sealed in a fire-retardant poly bag. The firestop pillow shall consist of a monolithic (one piece) core that is encapsulated on all sides by a flexible intumescent coating and shall not contain any loose fiber fill. The pillow shall be UL Certified and/ or FM Systems Approved and tested to the requirements of ASTM E814 (UL1479) and CAN/ULC-S115
  • Intumescent: expands in all directions for a tough, tight seal., Re-installable - easy retrofitting of cables., Heat-sealed poly bag: strong & durable, no sewn seams to unravel or tear, no irritating fiberglass., Shelf life: no limit.
  • Available in four different sizes
  • Tested in a wide range of construction types and configurations
  • Easily installs from a single side
  • Re-enterable allowing for future work in previously sealed openings
Standards and Certifications
  • ASTM E814
  • UL 1479
  • CAN/ULC S115
  • ASTM E814 (UL1479)
  • CAN/ULC-S115
  • FM Approved: Yes
  • UL Certified Firestop: Yes
  • FBC System Compatible: No
Construction Type
  • SpecSeal SSB Pillows are suitable for use in all common constructions for sealing new or existing openings. Even the most complex through-penetration firestop conditions.
Applications
  • Blank Opening
  • Busway
  • Cables
  • Cable Tray
  • Duct
  • Metal Pipe
  • Multi Pen
  • Plastic Pope
Industry
  • Residential
  • Commercial
  • Industrial
  • Construction
  • Government
Recommended Use

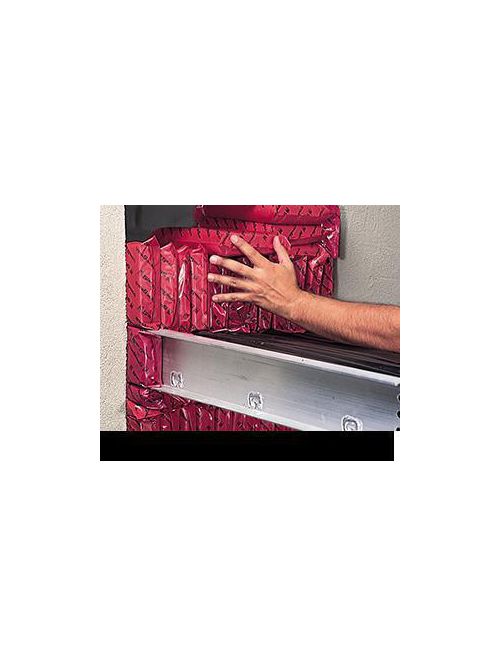

  • SpecSeal Firestop Pillows are designed for firestopping medium to large openings containing various penetrating items such as pipes, conduits, cables, insulated metal pipes, bus ducts and HVAC ducts. Pillows are particularly well suited for applications involving data, communications, power or control cables, innerducts and cable trays. This method of sealing offers easy retrofitting of cable installations without the need to damage the firestop seal. Difficult applications such as one-sided shaft wall installations and other applications where access is restricted to one side of the assembly may be easily firestopped with this material.
