INT-MAT ETCB28458PCR Expanded 8-Pol

Manufacturer: Intermatic, Inc | Catalog # ETCB28458PCR | Cooper Electric Part # 2261735
$1,103.93/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times

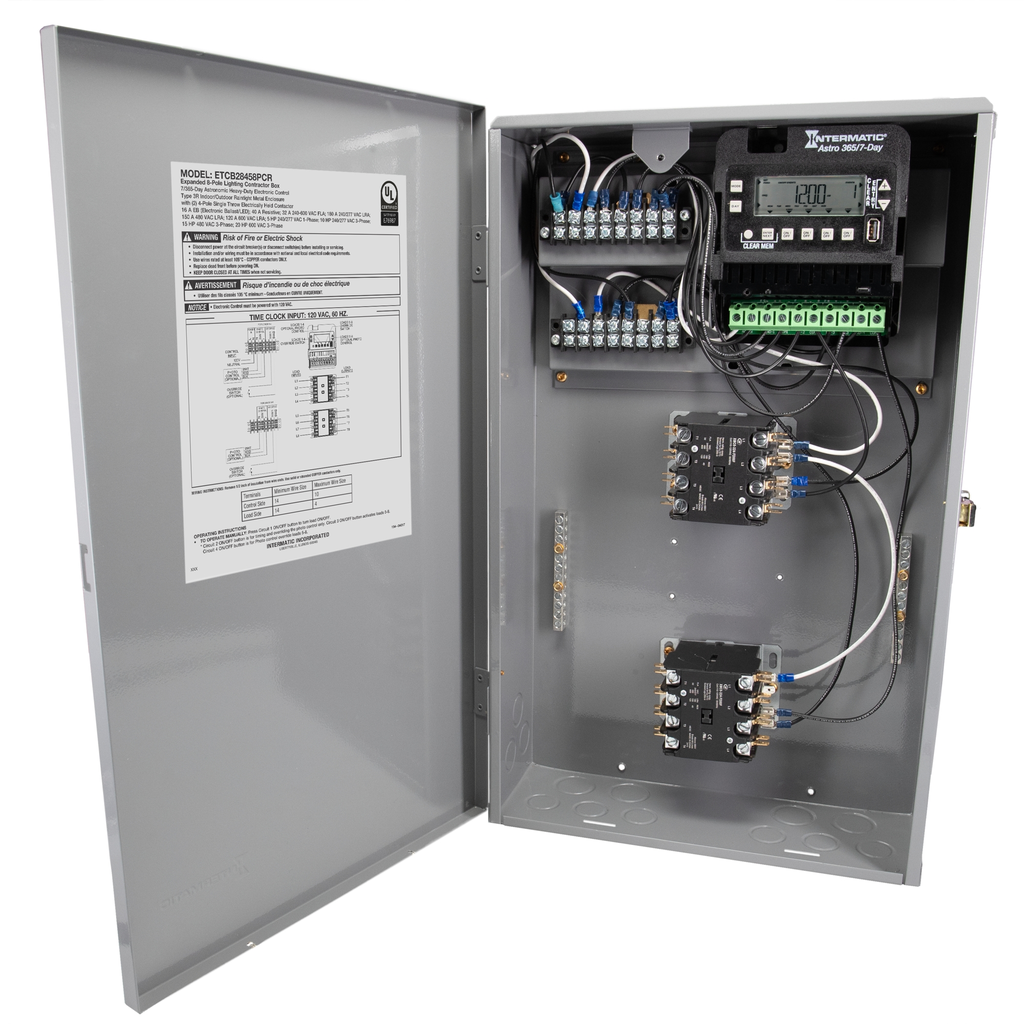

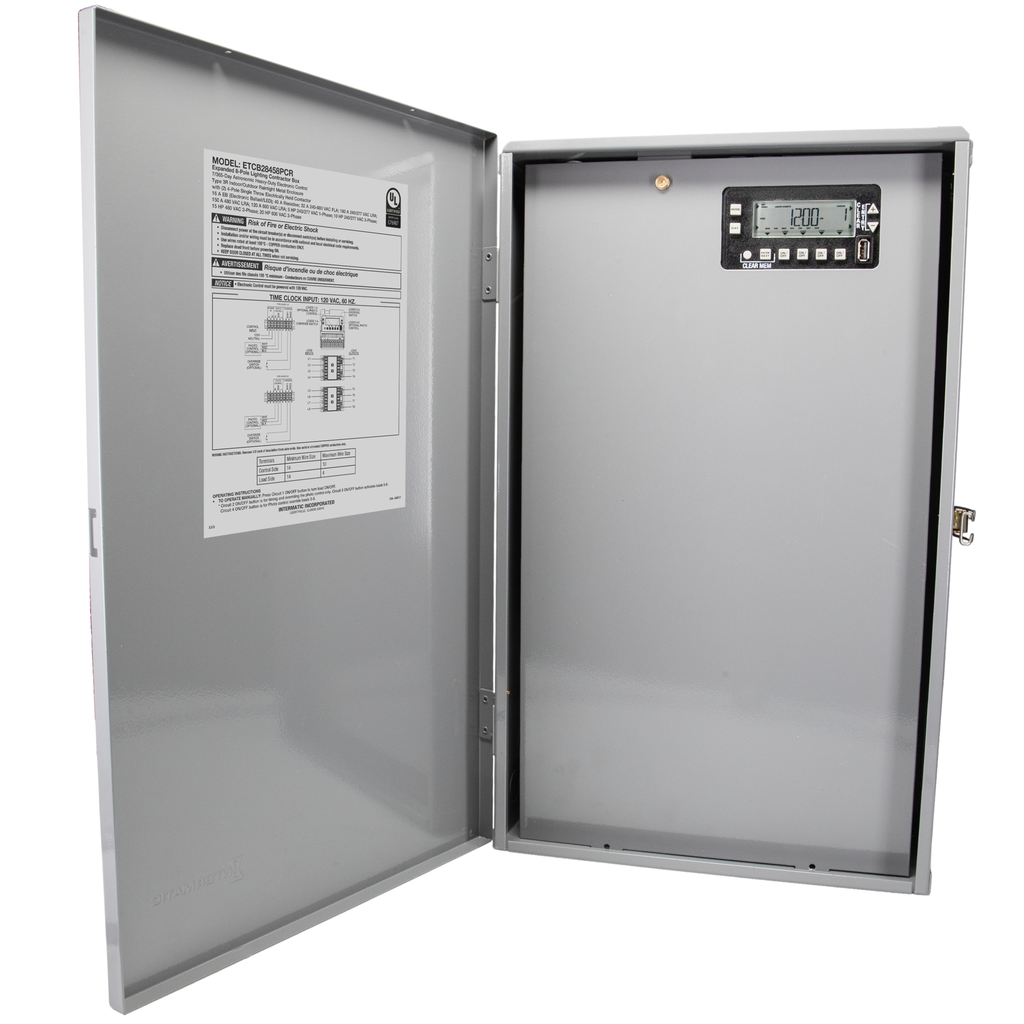

The ETCB28458PCR Expanded 8-Pole lighting Contractor Box provides an easy-to-install solution for a variety of application needs. The Contractor Box comes with a pre-installed Astronomic timer with 7-day, holiday/exception period scheduling, USB for Schedule transfer and Backup, an electrically held 40 A contactor, as well as inputs for overrides and surge protective devices.

Technical Information

Applications
Indoor Lighting Control,Machinery & Pump Controls,Motor Control,Outdoor Lighting Control,Timing/Scheduling ON/OFF

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275159198
Color
Gray
GTiN
00078275159198
Product UPC
07827515919

Dimensions

Depth
4-3/4 Inch
Height
20-7/8 Inch
Warranty Length
2 yr
Width
12.875 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • 7-Day/365 Day Astronomic Scheduling
  • Up to 96 Scheduling set points
  • Up to 50 Holiday/Exception Period set points
  • USB port for backing up or transferring schedules
  • Built-in (2)40 A 4-Pole contactor for more robust loads.
  • Input for optional \"Timed\" photo control override
  • Input for other types of switches/sensors
  • Terminals for adding Surge Protection
  • 100-hour supercapacitor eliminates the need for battery replacement
  • Requires 120 VAC 60 Hz for powering the control
