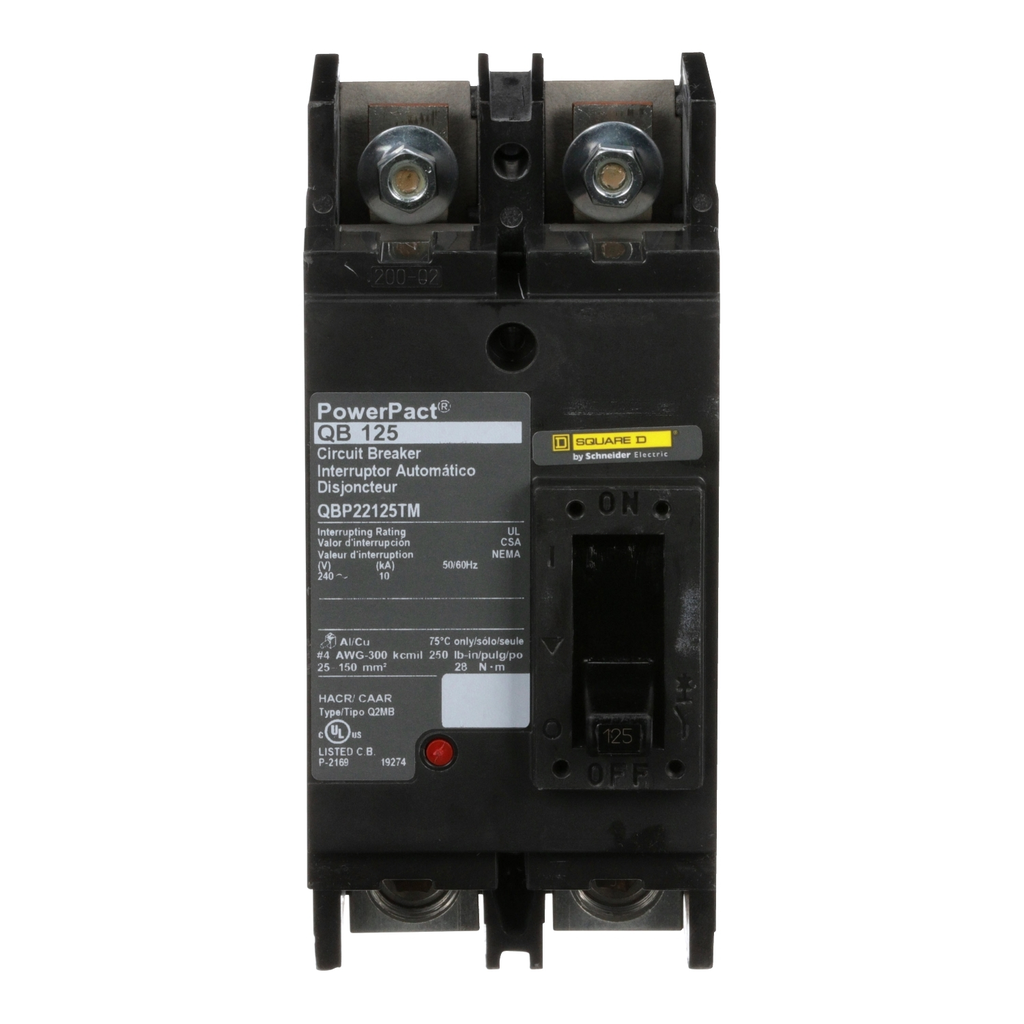

Square D QBP22125TM 2-Pole 125 Amp 240 Volt Thermal Magnetic Molded Case Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # QBP22125TM | Cooper Electric Part # 226161
$474.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
10 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has terminal nuts on the line side and lugs on the load side. It has studs on line end with nuts and washers. This PowerPacT Q, 125A, 2 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.

Technical Information

Amperage
125 Amp
Applications
METERING BREAKERS
Frame
B
Interrupt Rating
10 kAIC
Line Rated Current
125-125 A
Mounting Type
Unit Mount
Number of Poles
2 Pole
Standard
CSA,NEMA,NOM-003-SCFI-2000,UL
Strip Length
22 mm
TC Connection
LUGS LOAD-TERMINAL NUT LINE AWG 4...300 KCMIL ALUMINIUM/COPPER
Trip Point
2400-2400 A
Trip Range
1200 A,125 A,2400 A
Trip Type
THERMAL-MAGNETIC
Type
CIRCUIT BREAKER
Voltage
240 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901662655
GTiN
00785901662655
Product UPC
78590166265

Dimensions

Depth
3.93 Inch
Height
6.47 Inch
Length
22 mm
Warranty Length
18 mth
Width
3.00 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,NOM,UL
Country of Origin
USA
Compatible Products
  • QBMIK
  • QBPA
