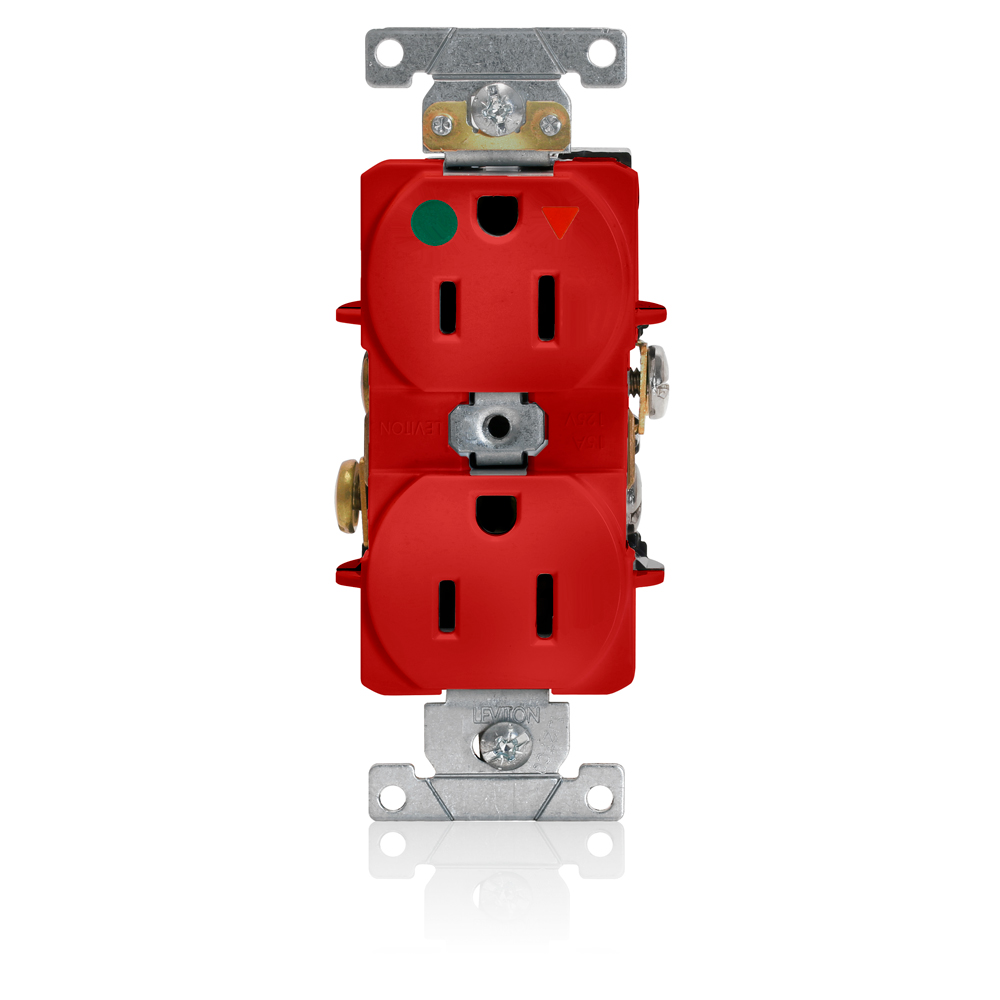

Image thumbnail 1

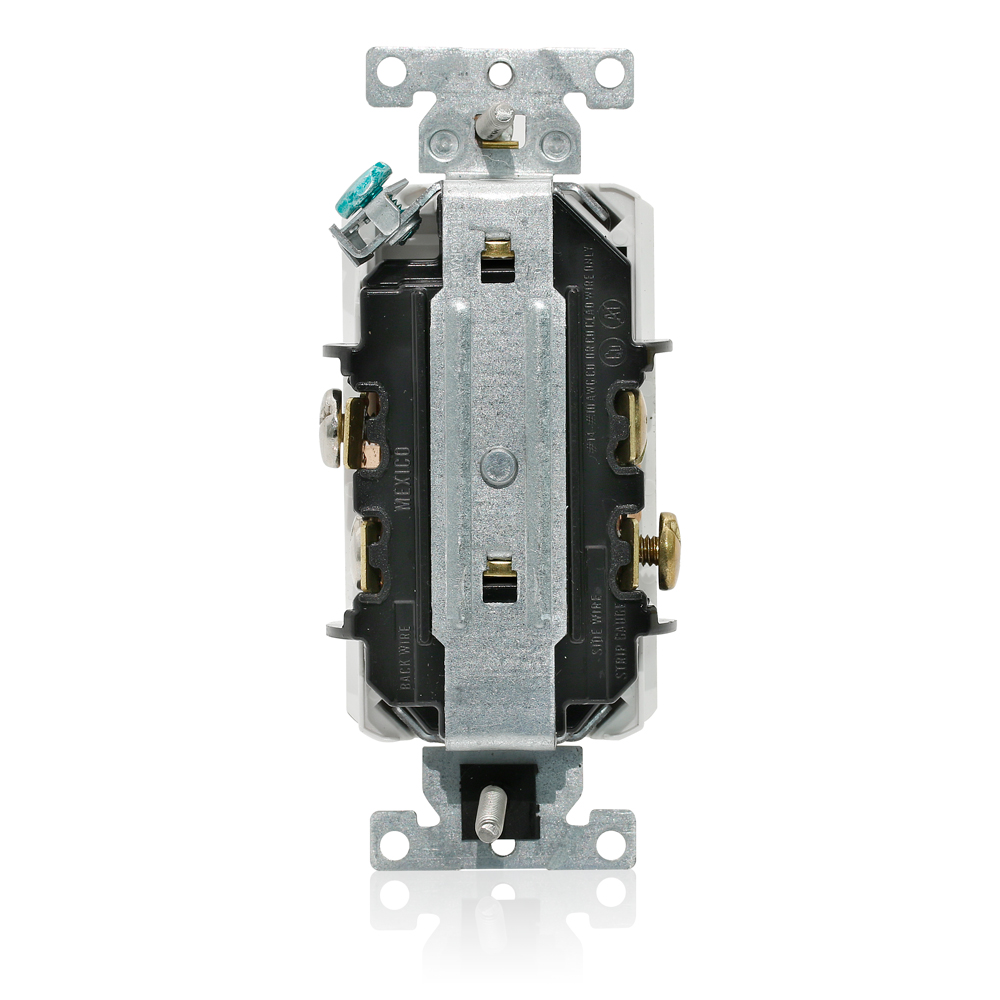

Image thumbnail 2

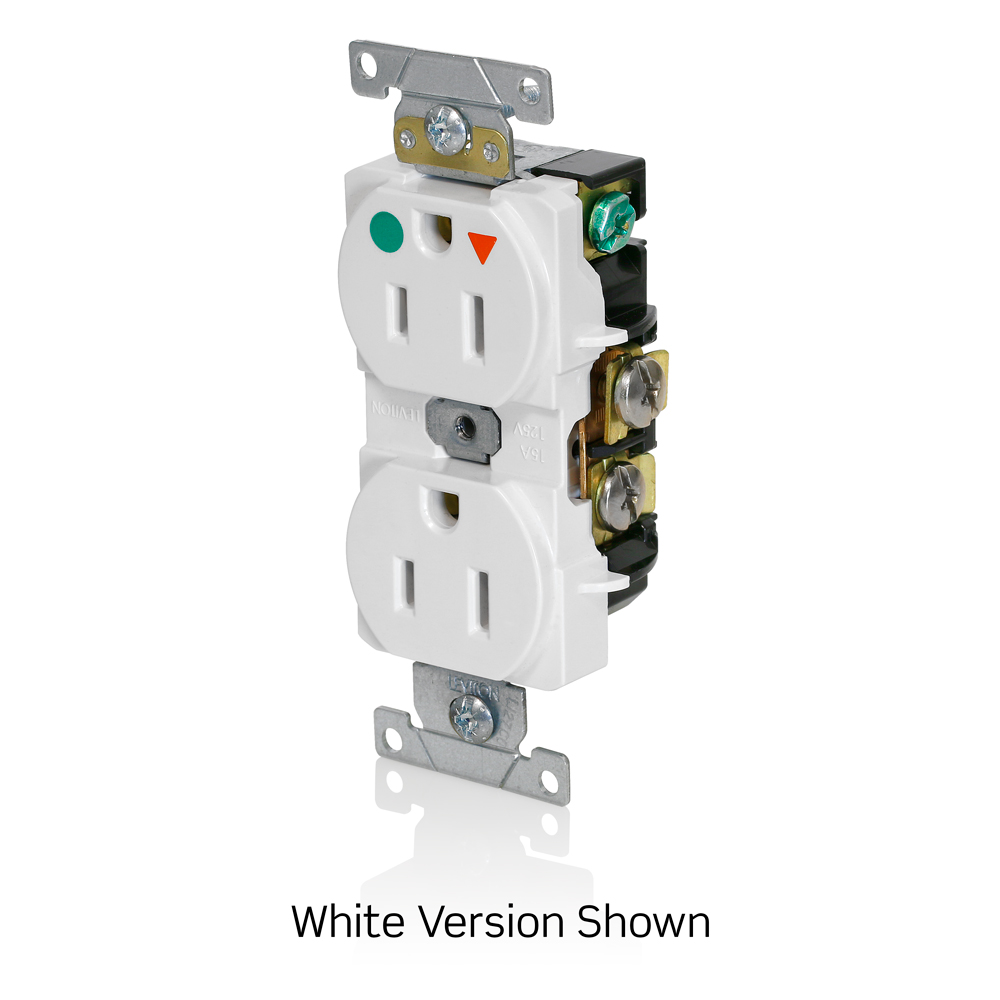

Image thumbnail 3
Email

Leviton 8200-IGR 15 Amp 125 Volt NEMA 5-15R 2-Pole 3 Wire Straight Blade Red Narrow Body Duplex Receptacle

Manufacturer: Leviton Mfg Co | Catalog # 8200-IGR | Cooper Electric Part # 2261423
$70.36/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Red

Technical Information

Amperage
15 Amp
Applications
Hospital
Body Material
PBT,PBT,Polyester Blend,Polyester Blend
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Dielectric Strength
2000 V
Face Material
PBT,PBT,Polyester Blend,Polyester Blend
Flamability Class
Rated V-2 Per UL 94,Rated V-2 Per UL 94
Grade
Hospital
Grounding
Self-Grounding,Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Mounting Type
Wallbox, Flush
NEMA
WD-6
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
60 degrees C
Size
46 H x 1.55 W x 1.12 D IN
Standard
ANSI C-73
TC Connection
Back and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
30 degrees C
Termination Type
Back Wire,Side Wire
Type
Outlet, Isolated Ground
Voltage
125 Volt
Wire Count
3,3
Wire Size
14-10 AWG
Wire Type
Stranded or Solid

Manufacturer Information

Brand
Leviton
Sub Brand
INDUSTRIAL RECEPTACLES

General Product Info

12-Digit UPC
078477057322
Color
Red
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTiN
00078477057322
Product UPC
07847705732

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Certifications
CULus,NOM-ANCE
Country of Origin
Mexico
Color Variations
  • Brown
NEMA
  • 5-15R
