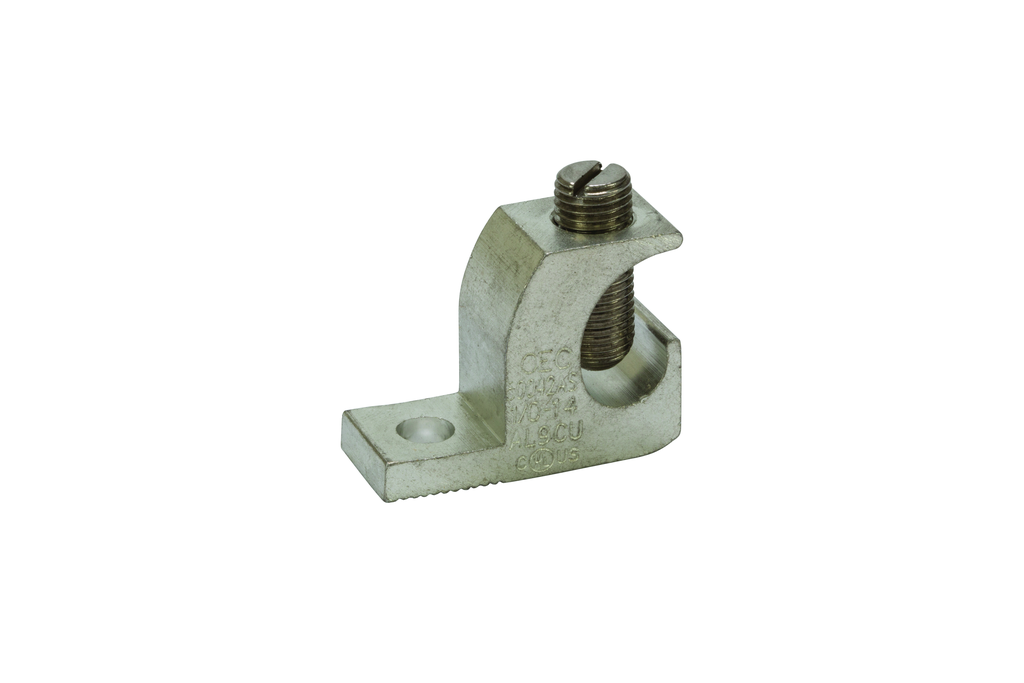

NSI GLA-0 8 to 1/0 AWG Aluminum Lay-In Connector

Manufacturer: NSi | Catalog # GLA-0 | Cooper Electric Part # 22598
$599.98 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Product Spec Sheet
Lay In Connector 1/0 - 8 AWG Lay-in connectors offer the ultimate in flexibility. Excellent for grounding and continuous loop applications. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C.

Technical Information

Applications
Wire Termination
Conductor Size
8-1/0 AWG
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Number of Conductors
1
Number of Poles
1 Pole
Size
L=1.50 - H=1.10 - W=.600 IN
Standard
CULUS
Temperature Rating
90 degrees C
Type
Aluminum Lay-In Lug
Voltage
600 Volt
Wire Size
8-0 AWG
Wire Type
AL/CU

Manufacturer Information

Brand
NSI Industries
Sub Brand
Mechanical Connector

General Product Info

12-Digit UPC
662381001917
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381001917
Product UPC
66238100191

Dimensions

Height
1.1 Inch
Length
1-1/2 Inch
Warranty Length
1 yr
Width
0.6 in

Certifications and Compliance

BAA | Buy American Compliant
Y
Country of Origin
India
Features
  • Lay-in connectors offer the ultimate in flexibility
  • Excellent for grounding and continuous loop applications
  • Made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance and stainless steel screw
  • For use with copper or aluminum conductors
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486B
