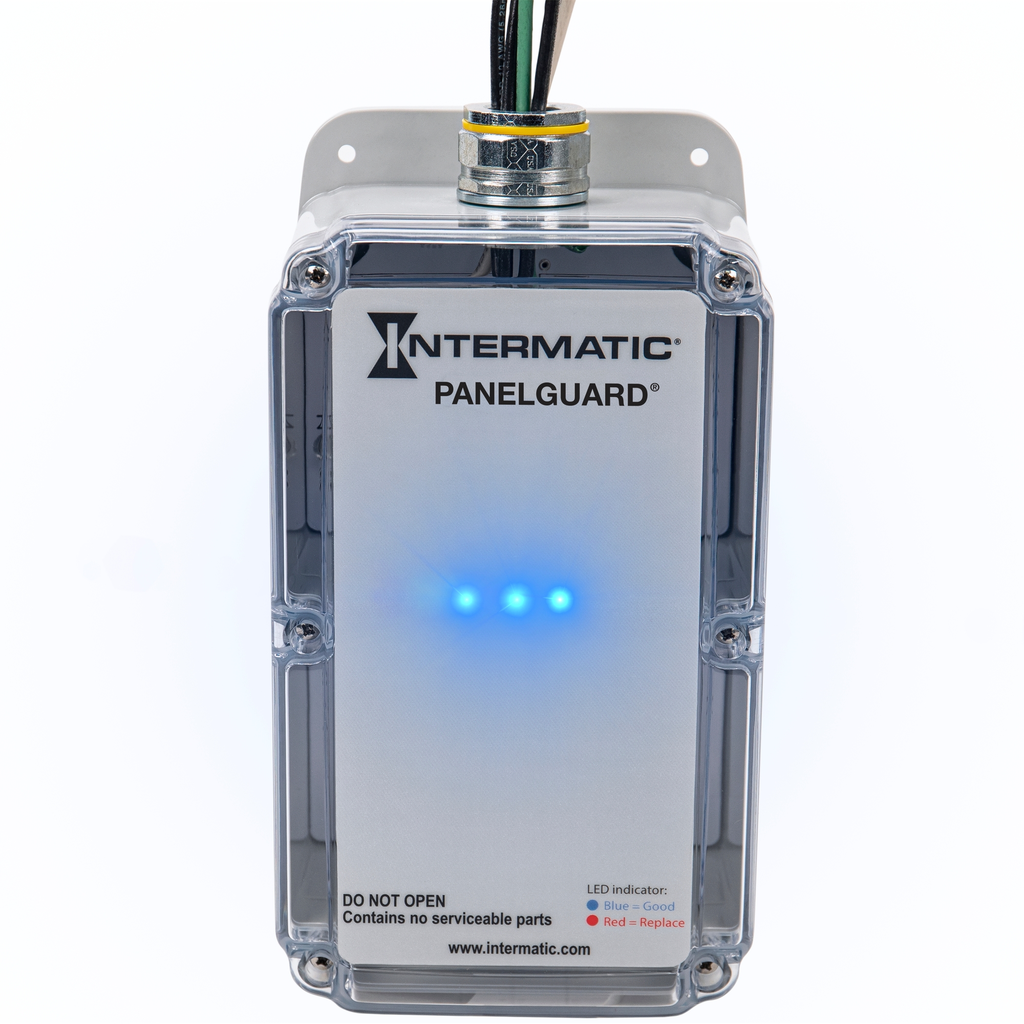

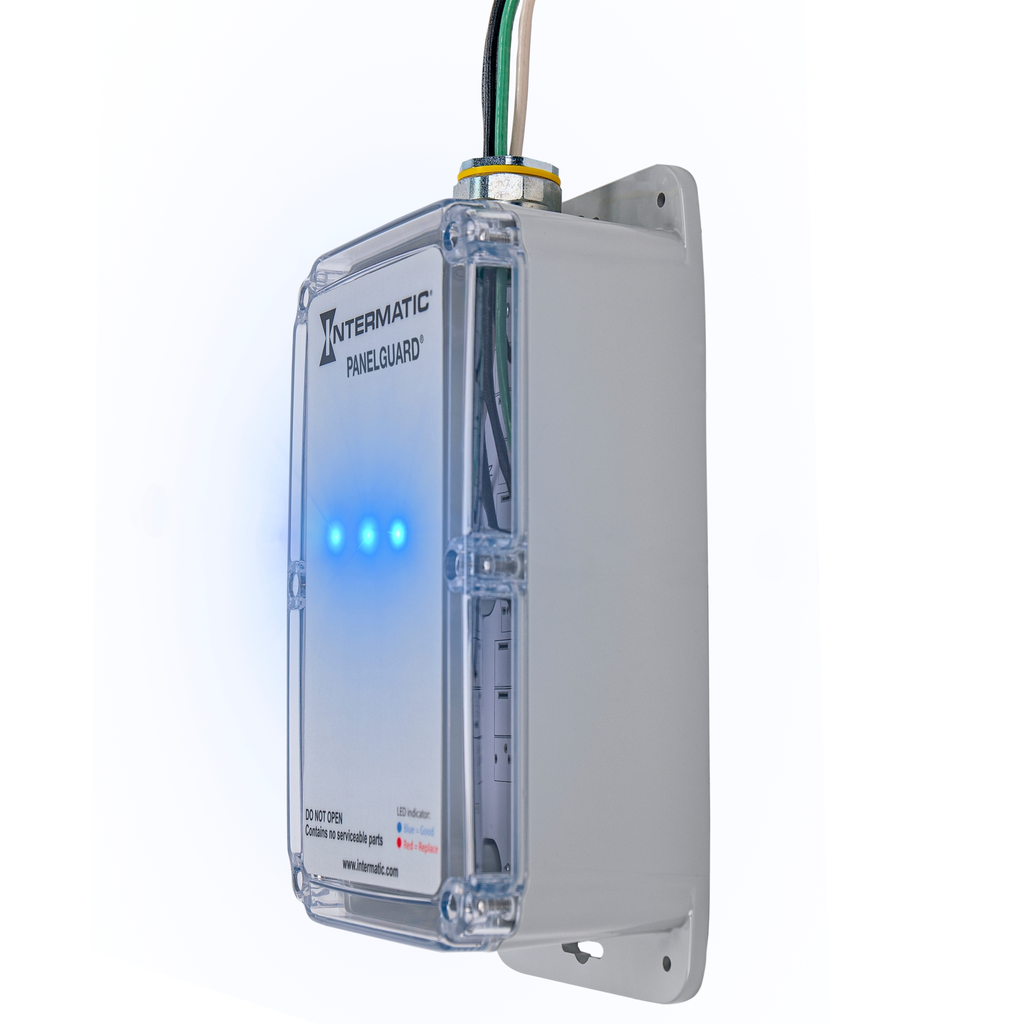

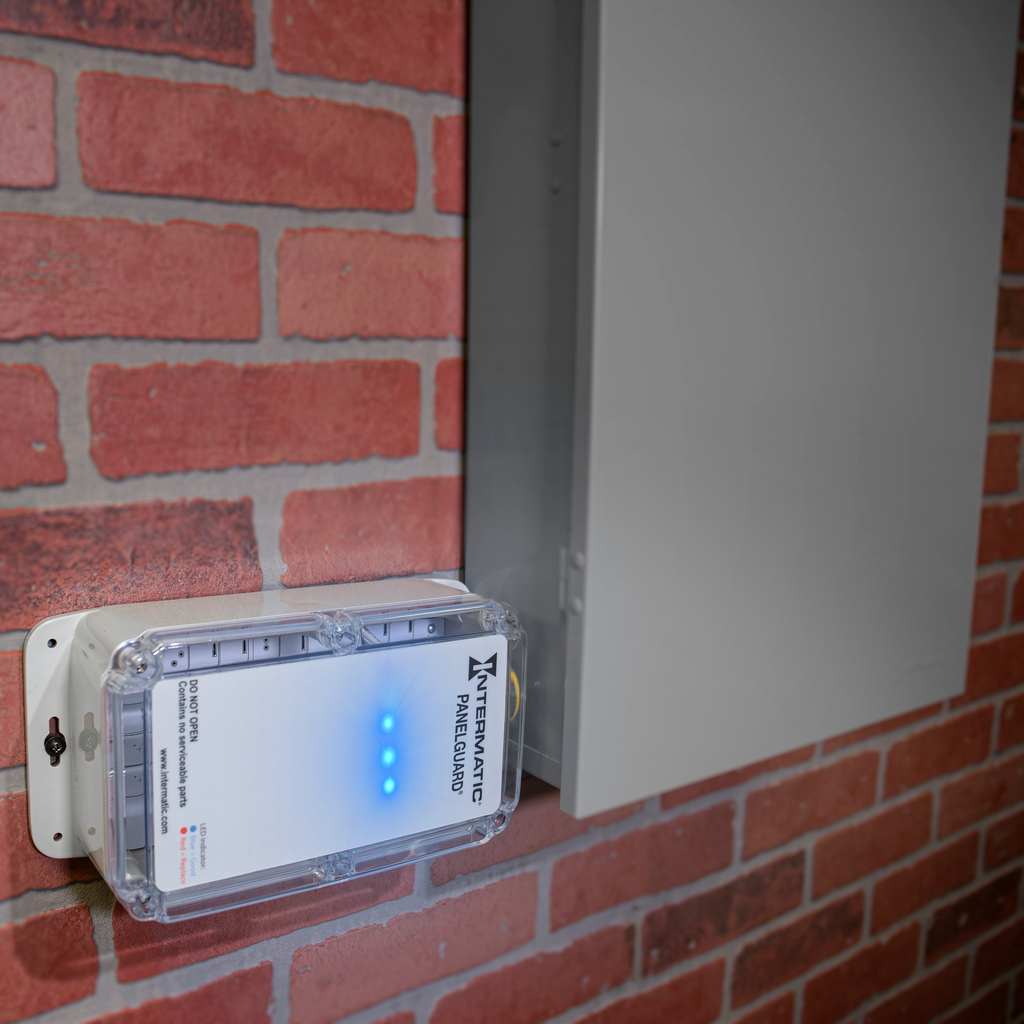

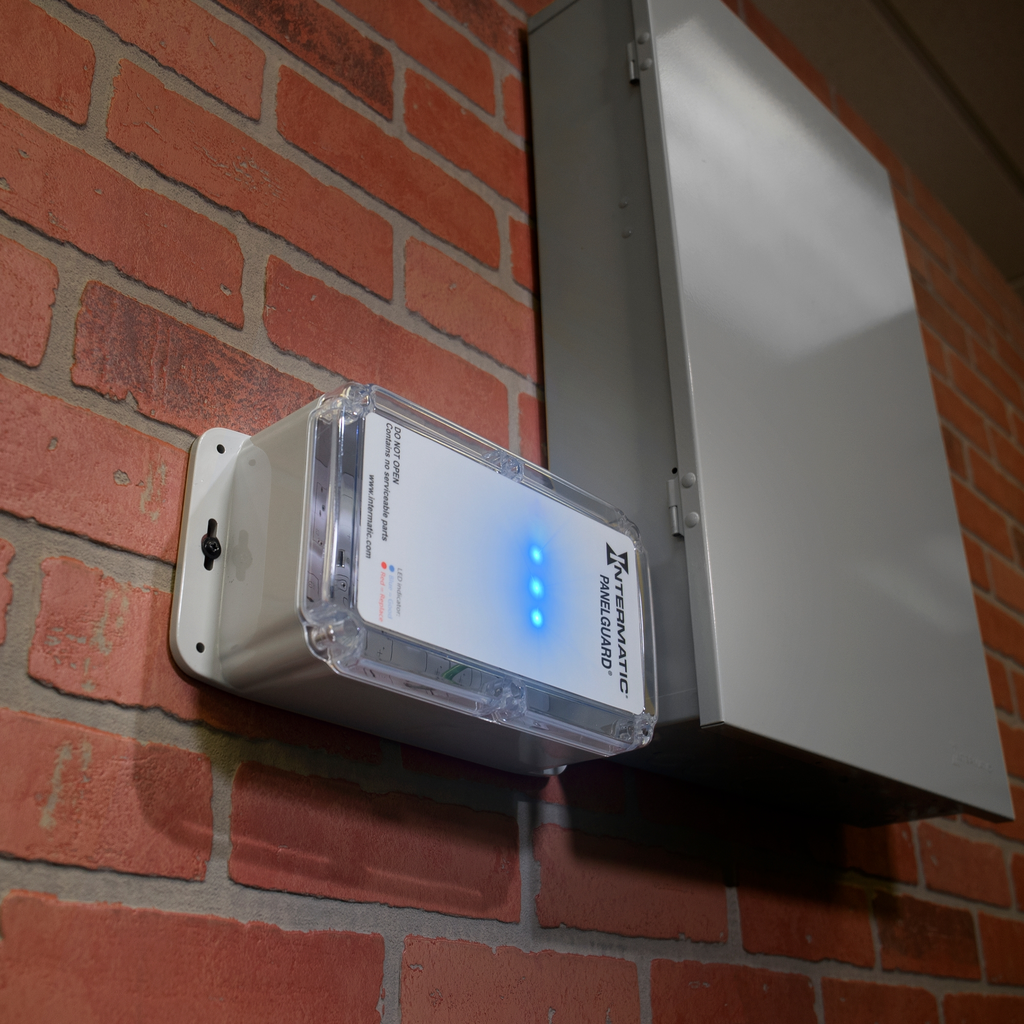

INT-MAT H20S13Y3DG2 Surge Protectiv

Manufacturer: Intermatic, Inc | Catalog # H20S13Y3DG2 | Cooper Electric Part # 2257868
$2,666.44/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations.

Technical Information

Applications
Distribution Panel,Service Entrance
Enclosure Type
NEMA Type 4X
Material
Plastic
Max Operating Temperature
176 degrees F
Min Operating Temperature
-40 degrees C
Mounting Configuration
Mount to panelboard or enclosure
Mounting Type
Mount to panelboard or enclosure
Number of Wires
5 Wire
Temperature Rating
80.0 degrees C
Type
Home Improvement & Commercial Supplies - Powerstrips, Surge Protectors & Extension Cords
Voltage
600 Volt
Wire Count
5

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275152328
Class
Surge Protection
Color
Gray
Environmental Conditions
Indoor/Outdoor
Finish
Plastic
GTiN
00078275152328
Product Category
Home Improvement & Commercial Supplies - Powerstrips, Surge Protectors & Extension Cords
Product Type
Home Improvement & Commercial Supplies - Powerstrips, Surge Protectors & Extension Cords
Product UPC
07827515232
Used With
HVAC, electronics
Weight
0.6 lb

Dimensions

Depth
3.29 Inch
Height
10.59 Inch
Warranty Length
10 yr
Width
5.25 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
USA
Features
  • Type 1 surge protection
  • Optional audible alarm and dry relay contacts
  • 7 Modes of protection
  • NFPA 780, UL 96A Lightning system protection compliant
  • NEMA 4X enclosure for indoor or outdoor installation
  • Individually integrated disconnect TPMOV surge protection technology
  • Blue LED status indicator per phase, red LED service indicator
  • UL Listed to ANSI/UL 1449 5th Edition
  • NA
