LEV T5637-W DECORA TYPE CC USB 15A

Manufacturer: Leviton Mfg Co | Catalog # T5637-W | Cooper Electric Part # 2251881
$38.93/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

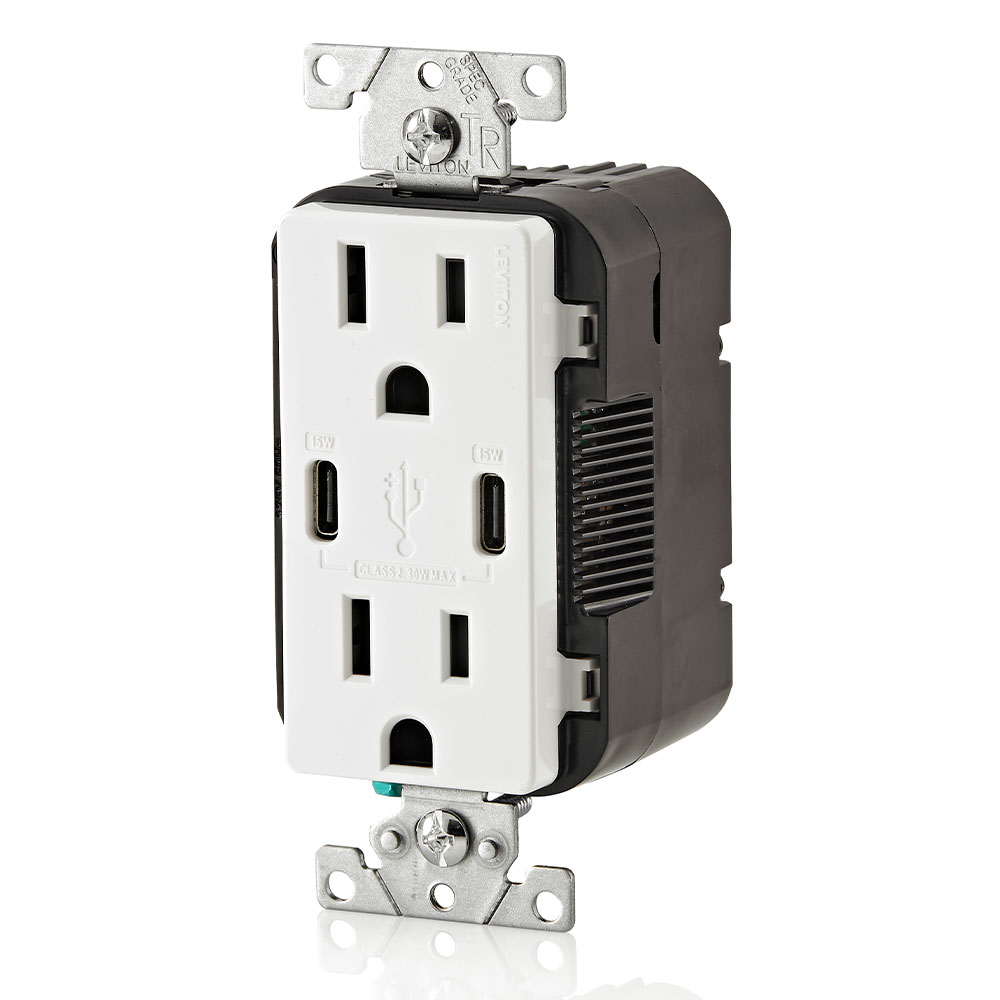

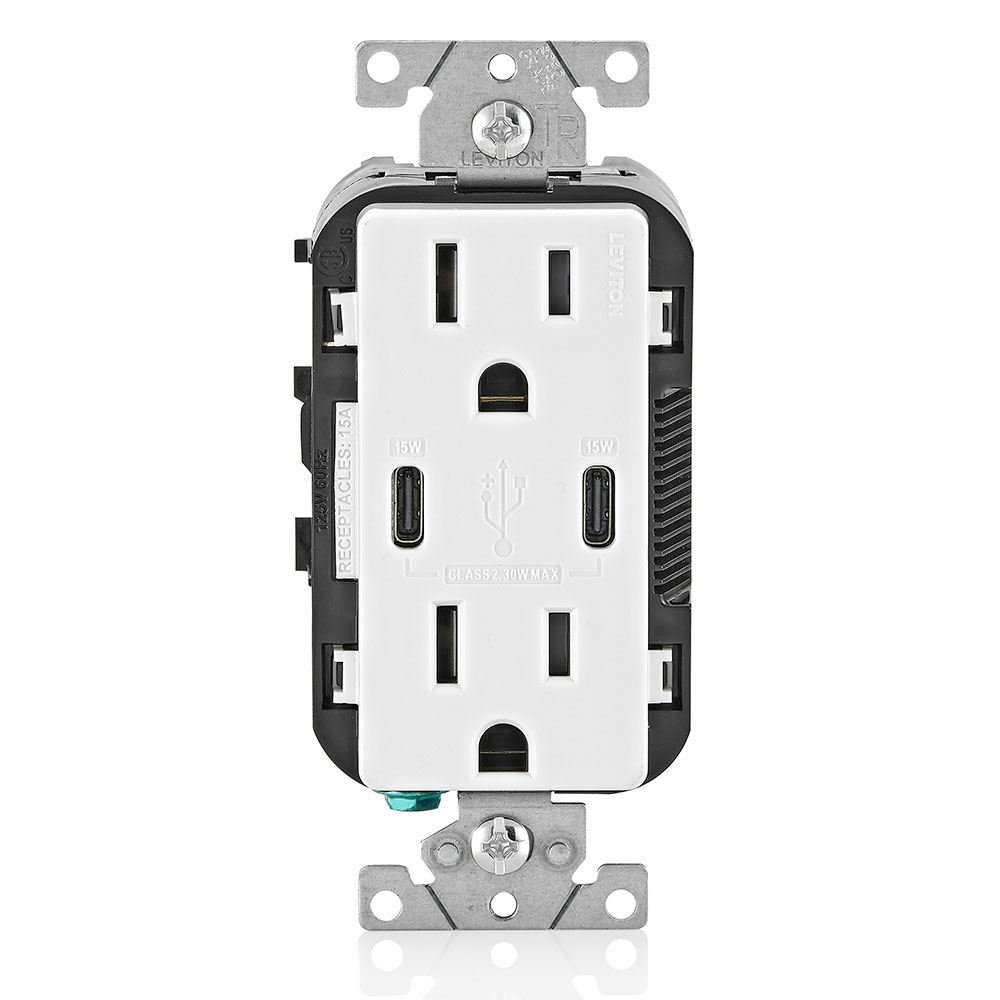

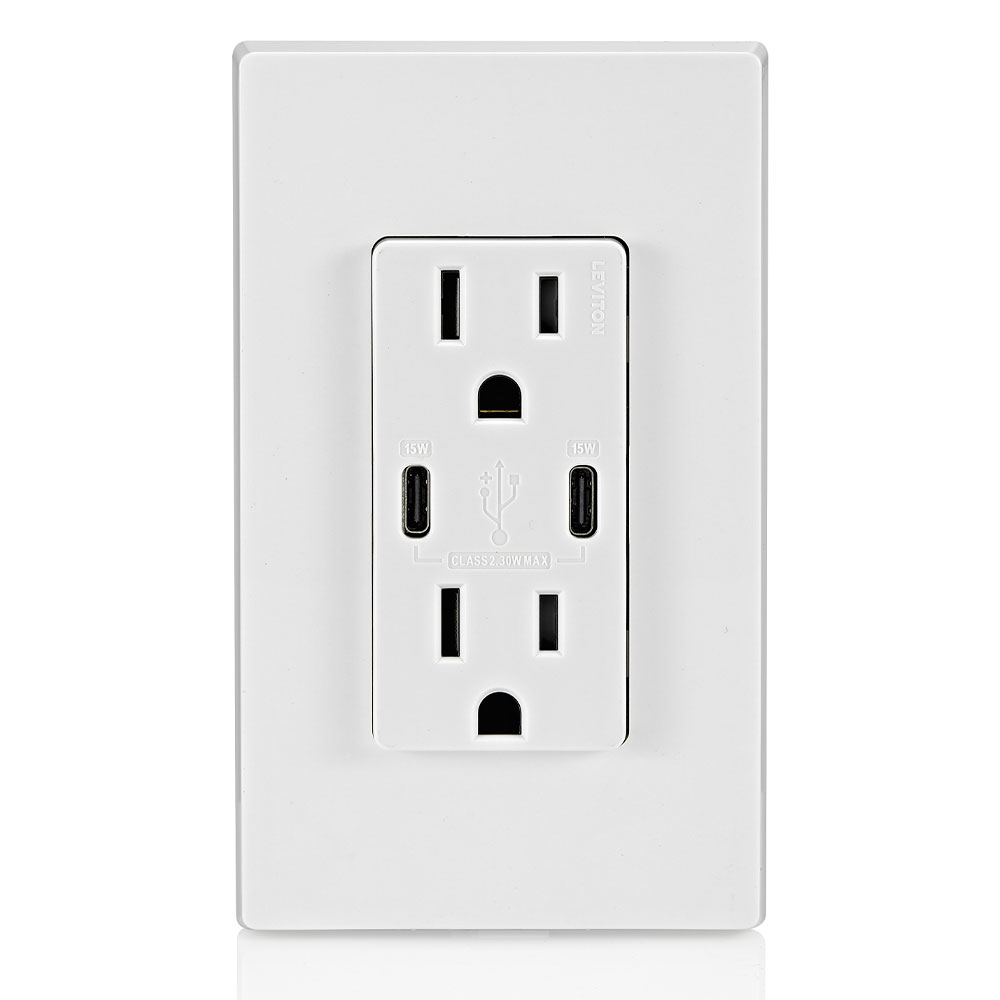

15 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-15R, 30W (6 Amps), Dual Type-C/C USB Chargers, Grounding, Side Wired & Back Wired - White

Technical Information

Amperage
15 Amp
Body Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial,Residential
Grounding
Grounding
Horsepower
1/2 hp
NEMA
5-15R
Operating Temperature
-10 degrees C
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Torque
14 lb-in

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477000885
Color
White,White
GTiN
00078477000885
Product UPC
07847700088

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
China
Patents
  • CA2621644
  • CA2624409
  • CA2677283
  • MX338817
  • US7355117
  • US7820909
  • US7868719
  • US8242362
  • US8944859
  • US9368982
  • US9496726
Features
  • Charges most Type-C devices as well as Type A devices (adapter required)
  • Adapter-free charging of Type-C devices for a sleek and uncluttered appearance
  • No data transfer capability
  • 6A USB Charger
  • Two charging ports with 15W maximum of charging per port
  • Smart chip recognizes and optimizes the charging requirements of individual devices
  • Internal thermos regulator prevents the electronics from overheating
  • Tested to withstand over 10,000 insertions.
  • Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
  • Tamper-resistant receptacles help prevent access by most non-rated/foreign objects
  • Fits in a standard wallbox, is compatible with standard wallplates and can be multi-ganged with other devices
  • Easy to install. Can replace existing outlets
  • Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately
  • Perfect for use in residential applications such as kitchens, bedrooms, and home offices and in commercial applications such as hotels, airports, restaurants and cafes, salons, office cubicles - and college dorm rooms
  • SMART Built-in smart chip recognizes the individual devices charging requirements to optimize the charge (Does not provide Power Delivery. See Leviton T5636 , T5635 )
  • POWERFUL Two high-powered charging ports deliver a combined total of 6A charging current and 30 watts of power
  • CONVENIENT No more searching for charging adapters! Upgrade so you can charge electronics leaving the outlets free for additional power needs
  • THE FUTURE OF CHARGING USB Type-C provides faster charging and is emerging as the standard port on many phones and tablets, such as iPhones ® , iPads ® , Samsung Galaxy ® , Samsung ® Tabs, Google ® Pixel and More
  • ENHANCED SAFETY Built-in protection helps prevent the device from overheating and tamper-resistant outlets prevent unwanted objects from being inserted into the outlets
  • Wallplate sold separately
Color Variations
  • Brown
NEMA
  • 5-15R
