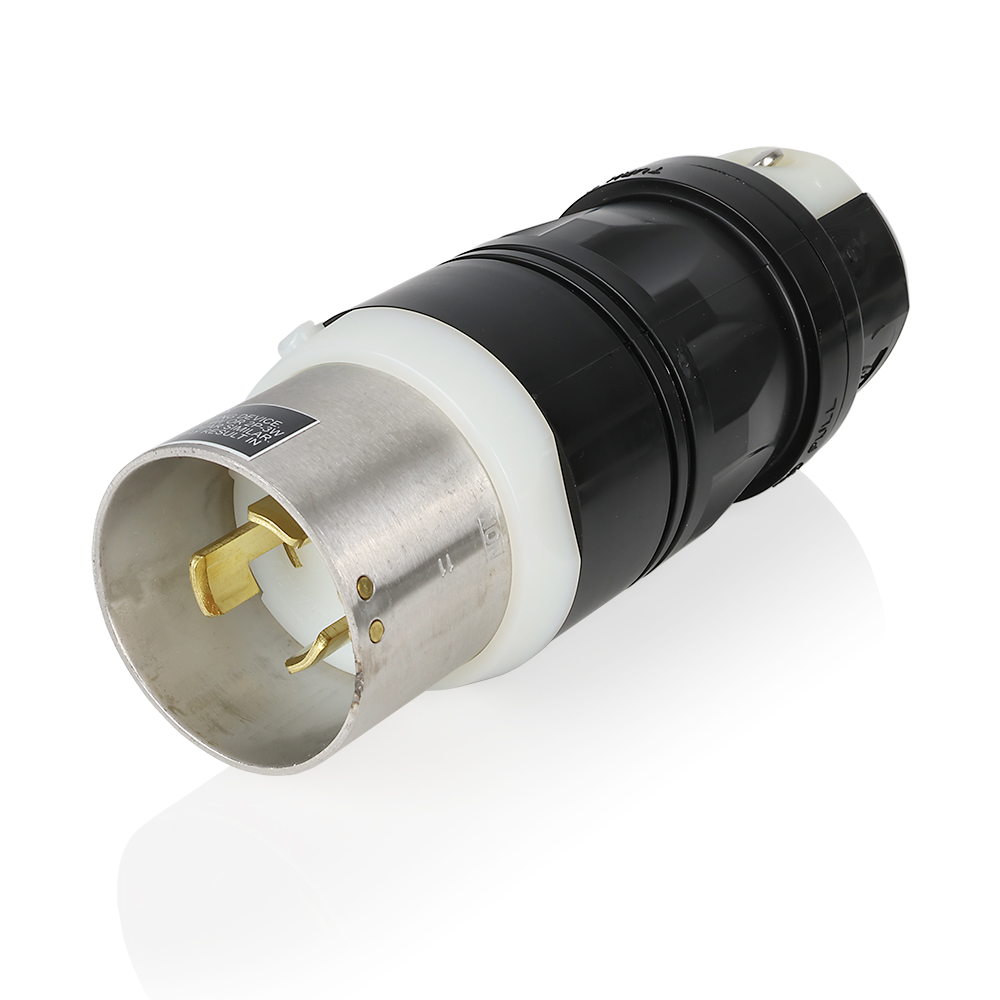

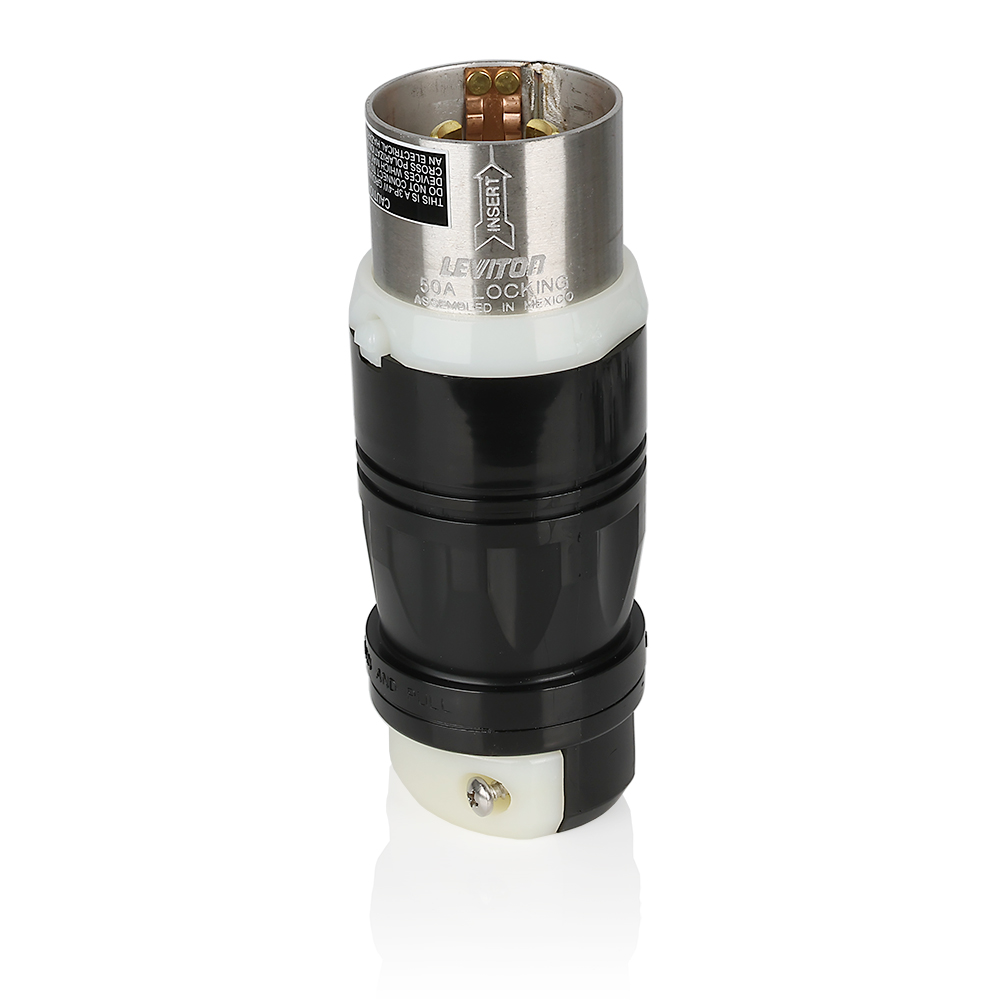

Product image for LEV 7765C EB PLUG LOCK 3PO4WI NO NE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

LEV 7765C EB PLUG LOCK 3PO4WI NO NE

Manufacturer: Leviton Mfg Co | Catalog # 7765C | Cooper Electric Part # 224848
$257.52/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure

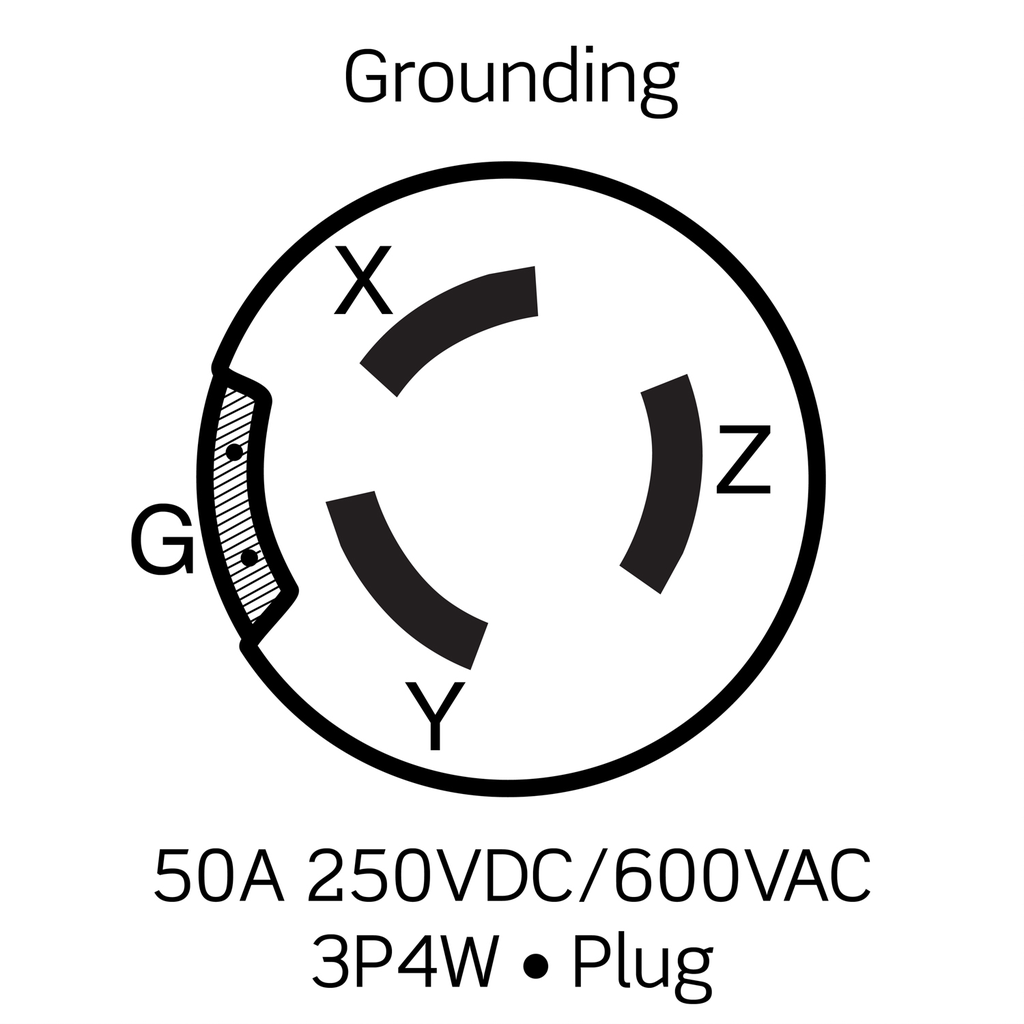

50Amp, 250V DC/600V AC, Non-NEMA, 3P, 4W, Black & White Locking Plug, Industrial Grade, Grounding . BLACK-WHITE

Technical Information

Actuator
Brass
Amperage
50 Amp
Applications
For Industrial Use
Conductor Size
10-4 AWG
Contact Material
Nickel Plated Brass
Device Type
Locking Plug
Dielectric Strength
2000 V
Flamability Class
UL94V-2
Ground Rod Type
Brass
Grounding
Yes
Material
Nylon
Max Voltage
250 V
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Type
Brass,Stainless Steel
Standard
CSA C22.2 No. 42 (File 152105),NOM Certified (057),RoHS Compliant,UL Listed 498 (File E13399)
Temperature Rise
150 %
Terminal Size
#10-4 AWG
Torque
35 lb-in
Type
Locking Plug
Voltage
600 Volt
Wire Count
4

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477804421
Color
Black,White
Environment
Dry
Environmental Conditions
Flammability (Rated V-0 Per UL94HB)
GTiN
00078477804421
Housing Material
Nylon
Product UPC
07847780442

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Features
  • One piece contacts reduce friction and overheating
  • Unique cord clamp accepts wide range of cord sizes
  • Rugged nylon construction resists impact, sunlight, chemicals, and rough use
  • 10-year limited warranty
NEMA
  • Non-NEMA
