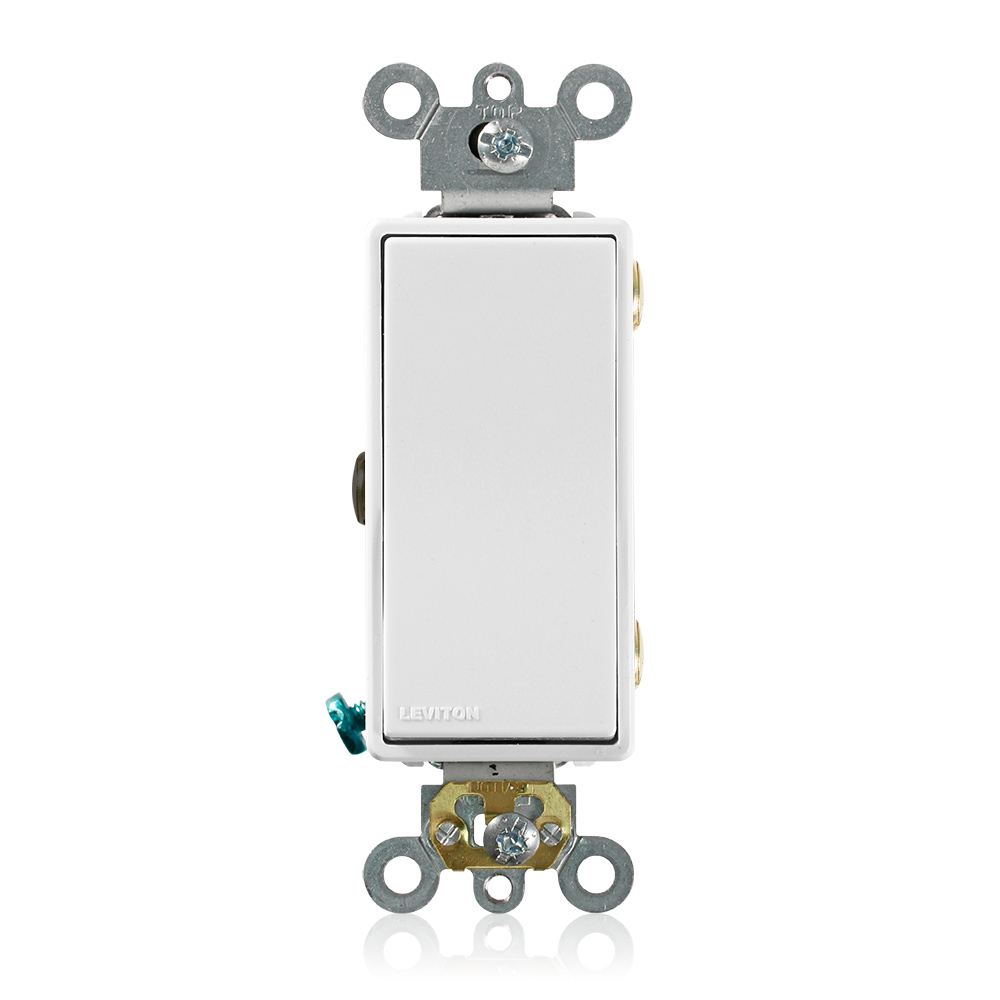

Product image for LEV 5693-2W WH SW DEC 3W 15A120/277
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

LEV 5693-2W WH SW DEC 3W 15A120/277

Manufacturer: Leviton Mfg Co | Catalog # 5693-2W | Cooper Electric Part # 224386
$43.65/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
15 Amp, 120/277 Volt, Decora Plus Rocker 3-Way AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired, - White

Technical Information

Actuator
Rocker
Amperage
12 Amp
Applications
Commercial
Body Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Contact Rating
120/277 V
Device Type
Rocker Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Max Current
12 A
Mounting Type
Box
NEMA
WD-1
Number of Poles
3 Pole
Operating Temperature
-40 degrees C
Size
46 H x 1.76 W x 1.42 D IN
Standard
ANSI C-73
TC Connection
Back Wired;Side Wired
Temperature Rating
-40 to 120 degrees C
Temperature Rise
30 degrees C
Terminal Type
Screw
Termination Type
Back Wire,Side Wire
Torque
12 lb-in
Type
Rocker Switch
Voltage
120/277 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477789629
Color
White
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTiN
00078477789629
Product UPC
07847778962

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Please Contact Customer Service
