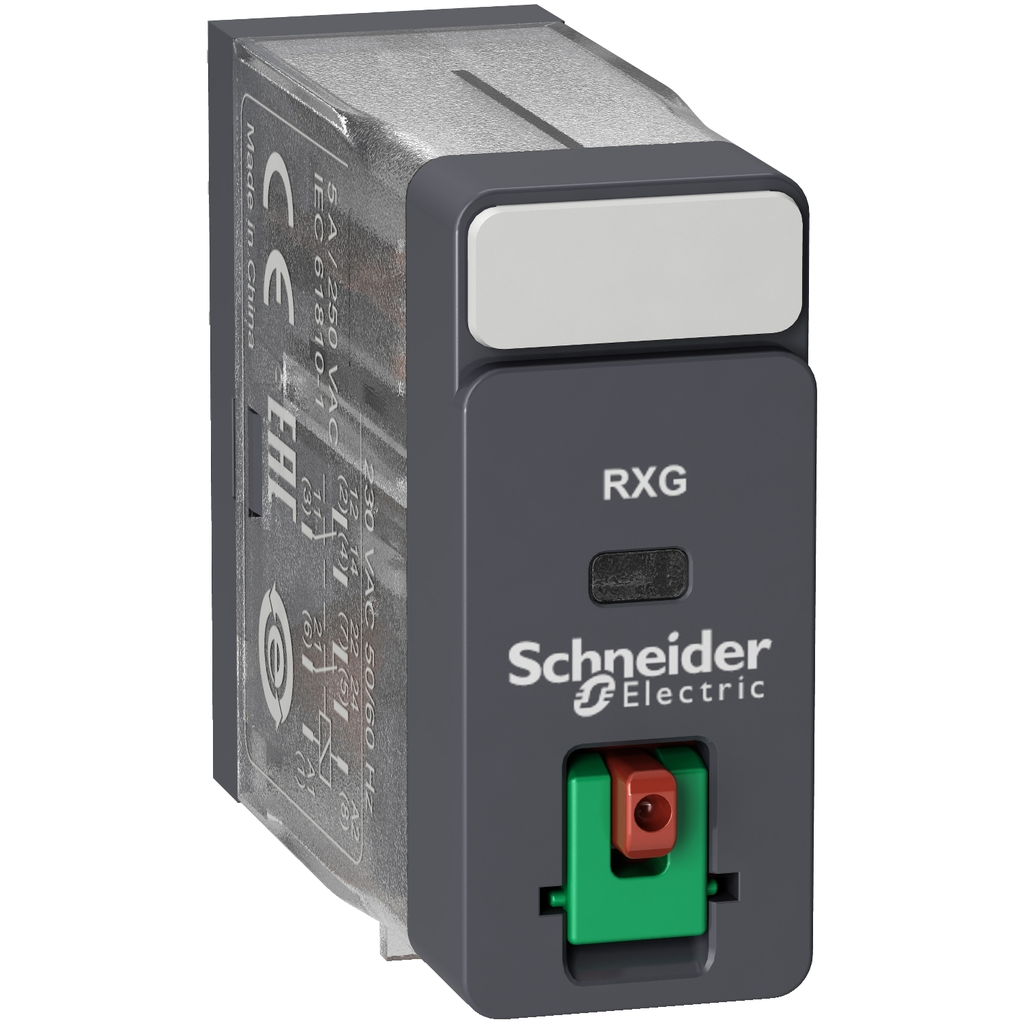

Product image for SQD RXG21P7 interface plug in relay
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4

Email

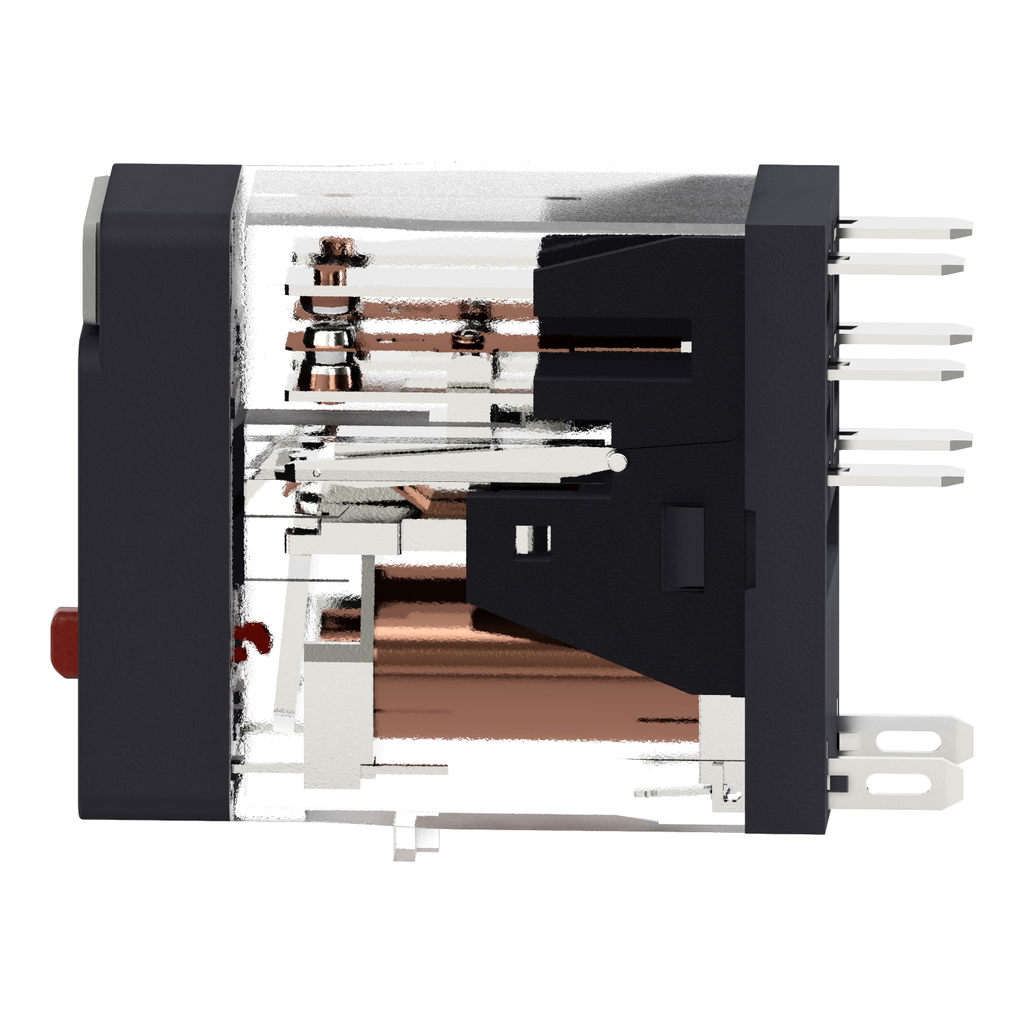

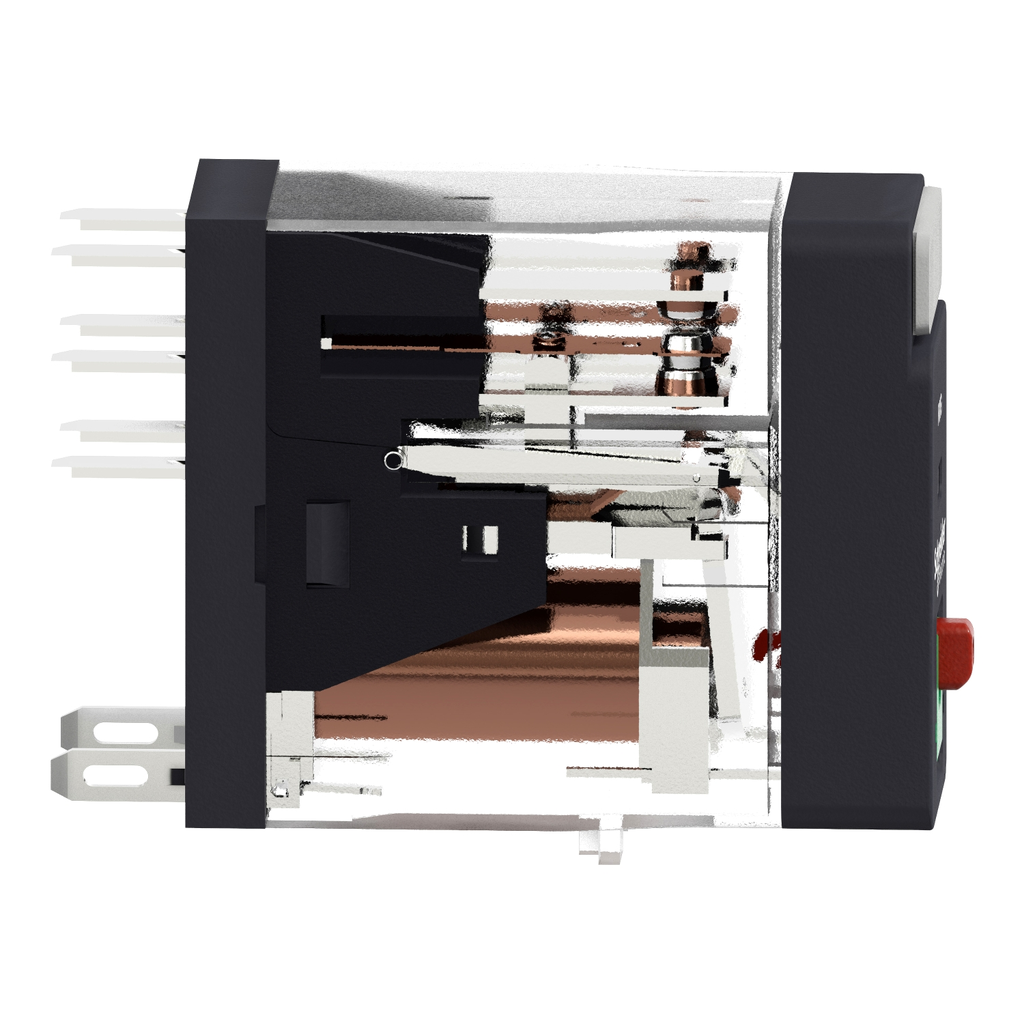

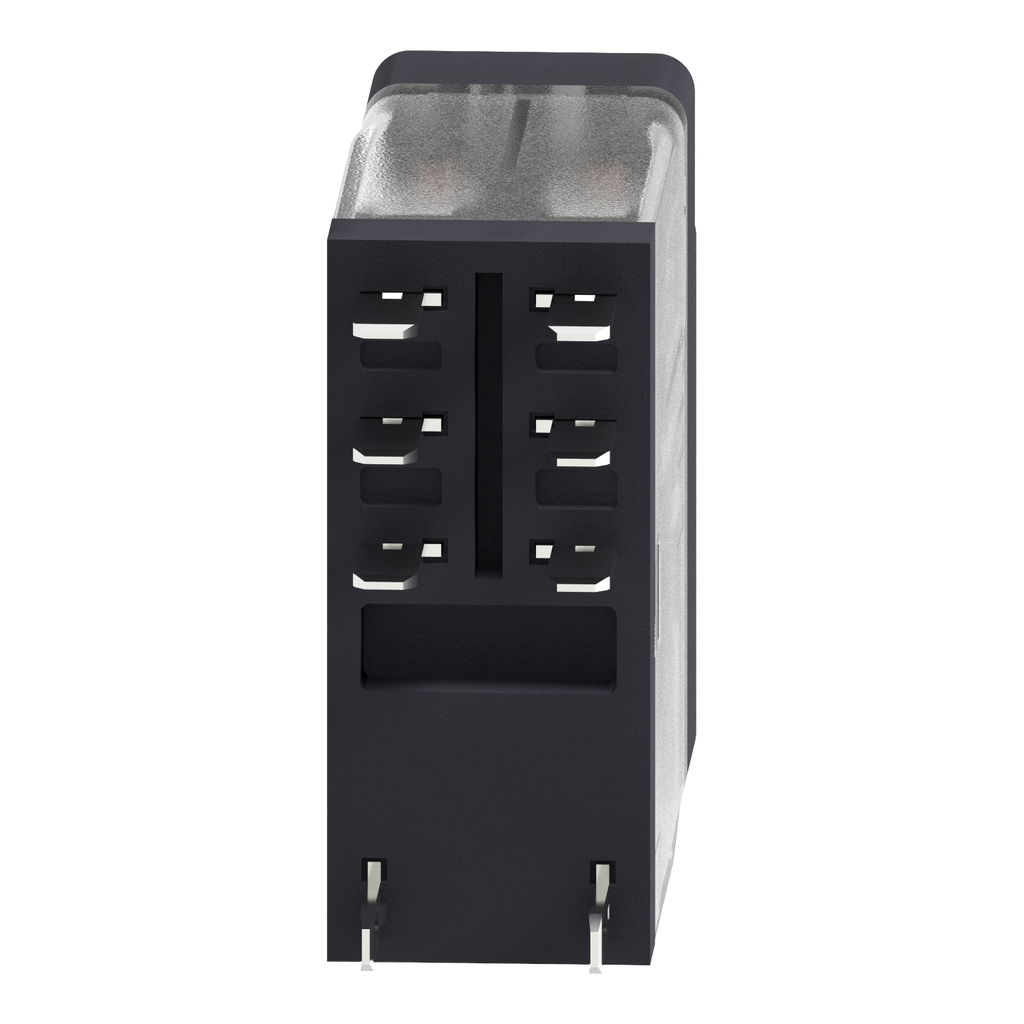

SQD RXG21P7 interface plug in relay

Manufacturer: Square-D / Schneider | Catalog # RXG21P7 | Cooper Electric Part # 2242653

$10.51/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
"This Harmony RXG plug-in relay socket has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers a lockable test button." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
5 Amp 250 V AC,5 Amp 30 V DC) UL-5 Amp 30 V DC) IEC-5 Amp 250 V AC) IEC-5 Amp 250 V AC) UL
Contact Configuration
2 C/O
Dielectric Strength
1000 V
Maximum Load Current
5 A 250 V AC
Net Weight
0.02 kg
Operating Cycles
<= 1800 CYCLES/HOUR UNDER LOAD-<= 18000 CYCLES/HOUR NO-LOAD
Operating Temperature
-40-70 Adegrees C
Type
Plug-in relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RXG

General Product Info

12-Digit UPC
606480689034
GTiN
03606480689031
Product UPC
60648068903
Weight
0.02 kg

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
China
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • RGZE1S48M
Cross Sell Products
  • RXG21P7PV
  • RXG22P7
  • RXG23P7
Related Products
  • LC1D09P7
  • TM221CE16T
